Non-Sparking Pull Type Trolley For Chain Hoist
- Category:Marine Tools
- Material:Aluminum Bronze, Beryllium Copper
- Standards:DIN, ASME, QB/T2613.8-2005, GB/T 10686-2013, GS, FM
- Certificate:EACC, IAF
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

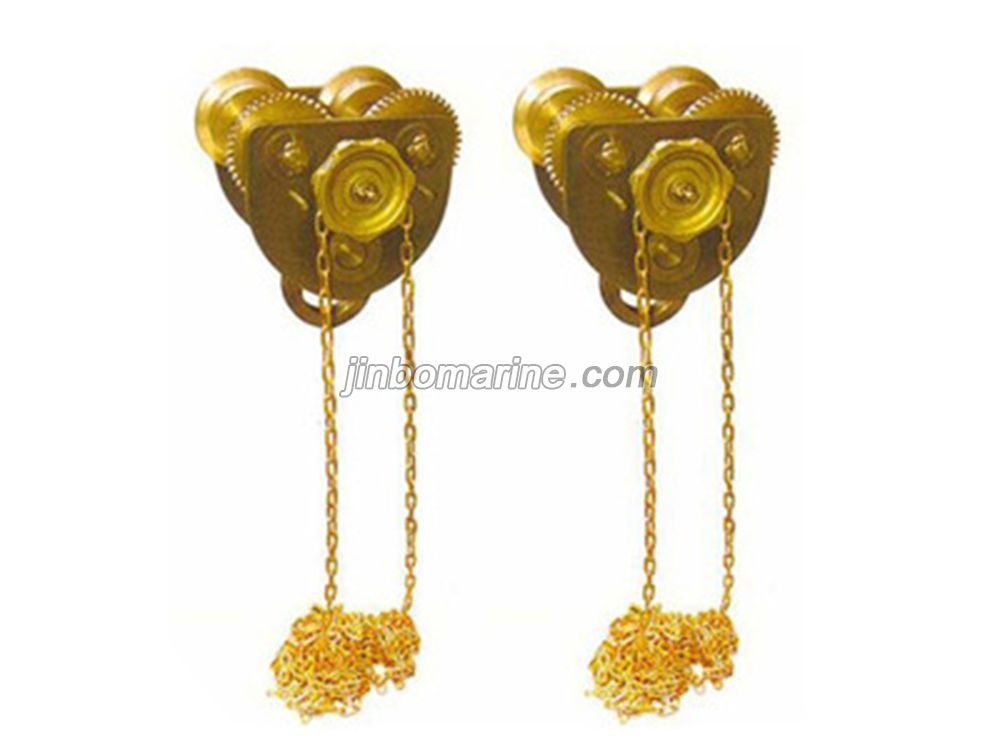

China Non-Sparking Pull Type Trolley For Chain Hoist:
These Non-Sparking Pull Type Trolley For Chain Hoist are made of Aluminum Bronze and Beryllium Copper, it is a high quality grade beryllium copper alloy material and a standard grade aluminum-bronze alloy. These tools are non-magnetic and non-corrosion, very suitable used for LPG and LNG vessels, and oil-gas industry etc.
|
Capacity T |
Lifting m |
I-Beam Width mm |
Weight (kg) |
|
| Aluminum Bronze | Beryllium Copper | |||
| 0.5 | 2.5 | 68-94 | 12.5 | |
| 1 | 2.5 | 68-100 | 14.5 | |
| 2 | 2.5 | 94-124 | 22.3 | |
| 3 | 3 | 116-140 | 24 | |
| 5 | 3 | 142-180 | 34 | |
| 10 | 3 | 142-180 | 68 | |
| 16 | 3 | 142-180 | 170 | |
| 20 | 3 | 142-180 | 170 | |
