Non-Sparking Valve Square and Ellipse Driver Wrench
- Category:Marine Tools
- Material:Aluminum Bronze, Beryllium Copper
- Standards:DIN, ASME, QB/T2613.8-2005, GB/T 10686-2013, GS, FM
- Certificate:EACC, IAF
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

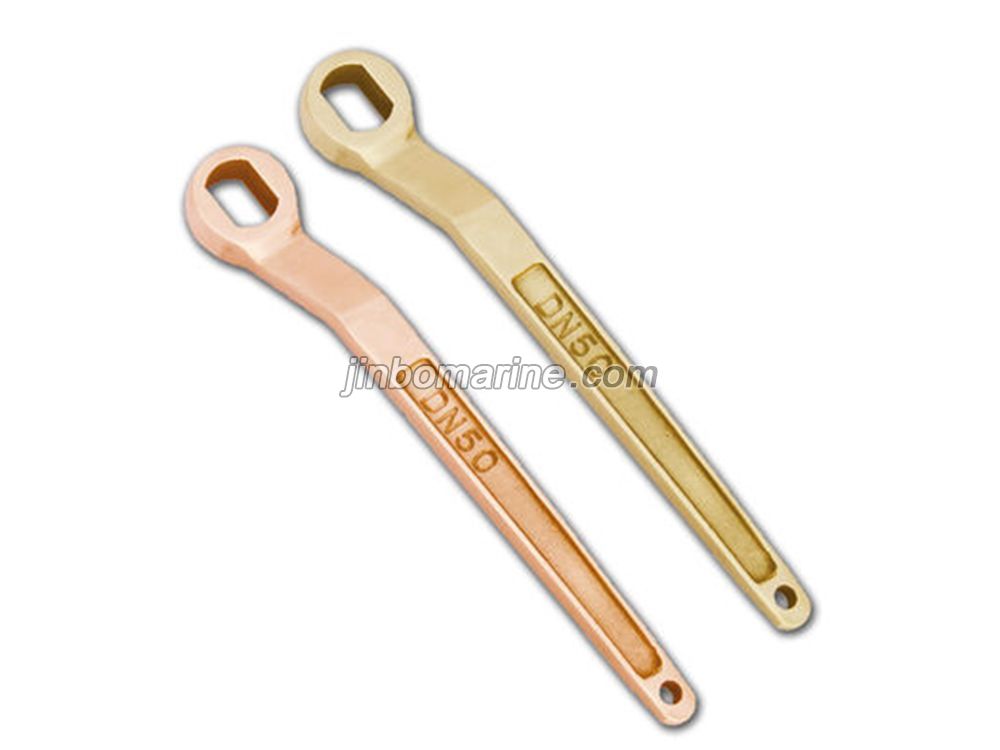

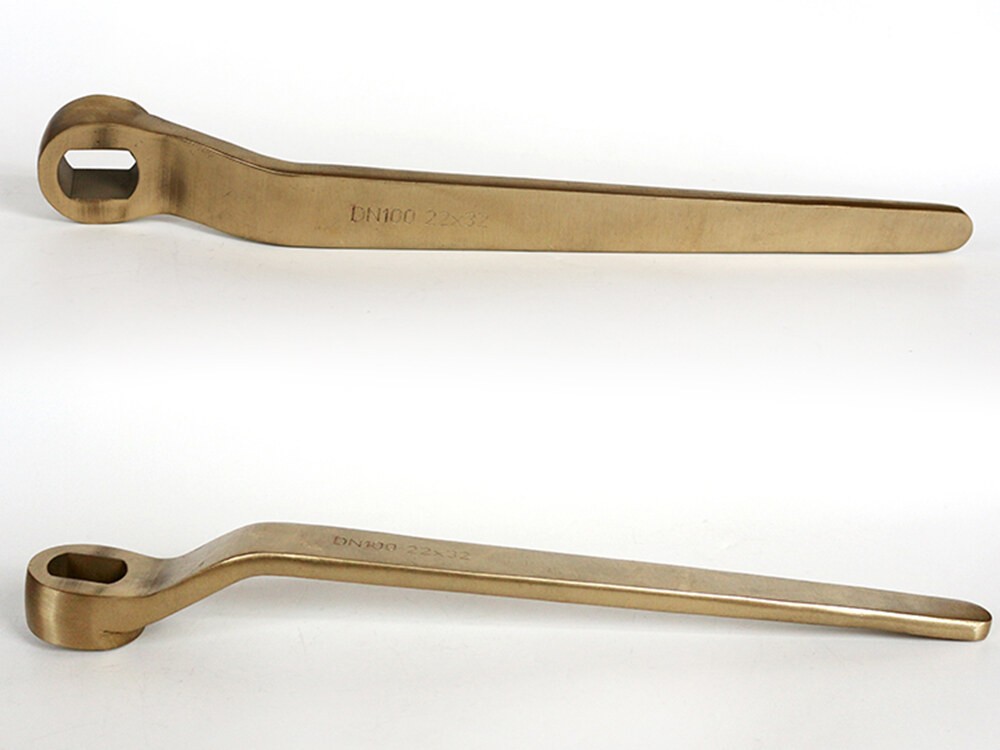

China Non-Sparking Valve Square and Ellipse Driver Wrench:
These Non-Sparking Valve Square and Ellipse Driver Wrench are made of Aluminum Bronze and Beryllium Copper, it is a high quality grade beryllium copper alloy material and a standard grade aluminum-bronze alloy. These tools are non-magnetic and non-corrosion, very suitable used for LPG and LNG vessels, and oil-gas industry etc.
| Size |
L mm |
D mm |
K mm |
Weight (g) |
|
| Aluminum Bronze | Beryllium Copper | ||||
| DN15 | 140 | 12 | 8 | 80 | 90 |
| DN20 | 140 | 14 | 9 | 95 | 105 |
| DN25 | 160 | 16 | 10 | 110 | 130 |
| DN32 | 190 | 17 | 11 | 155 | 180 |
| DN40 | 200 | 18 | 12 | 175 | 200 |
| DN50 | 250 | 23 | 15 | 330 | 335 |
| DN65 | 300 | 24 | 16 | 440 | 420 |
| DN80 | 350 | 25 | 17 | 650 | 740 |
| DN100 | 350 | 28 | 18 | 650 | 740 |
