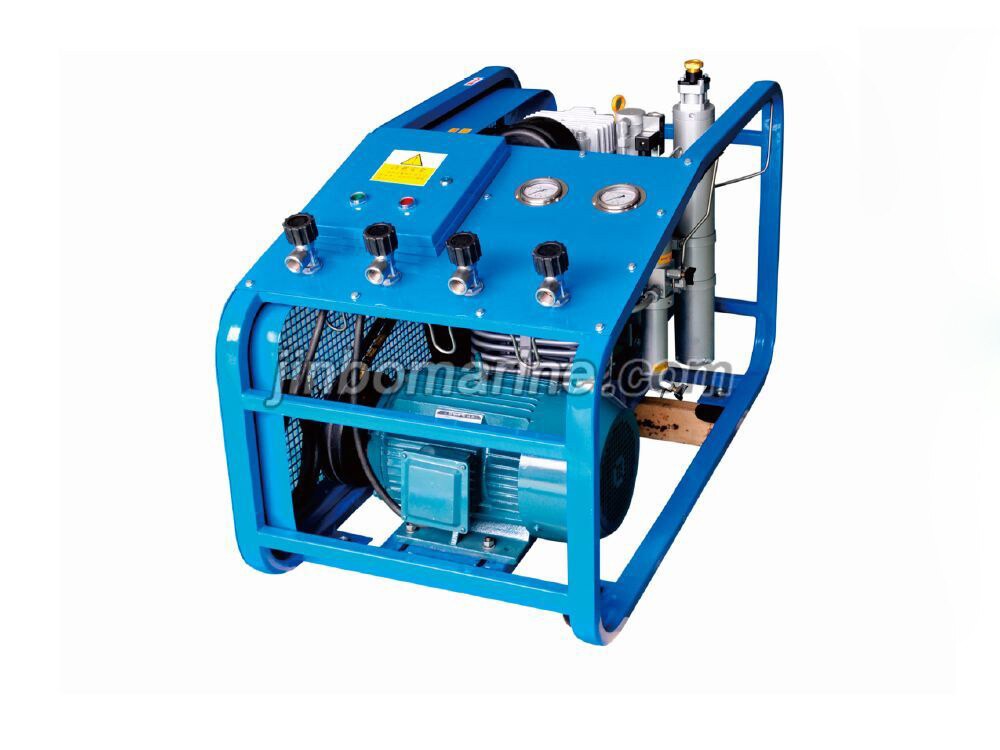

NRW24 High Pressure Air Cooled Diving Air Compressor

Request a Quote Not what you need, please send your RFQs via Email.

Details

China NRW24 High Pressure Air Cooled Diving Air Compressor:

Medium: air

Ambient temperature :- 5~+50℃

Safety valve setting: 330 bar

Working Pressure: 330 bar

Capacity: 500 l/min

Number of Compression stages: 4

Number of Cylinders: 4

Drive: V-Belt

High pressure outlet: fitting 8S for pipe 8mm

Breathing air standard: EN12021

Product Certification: Exported EU CE certification, CCS, ISO 9001 quality system

Compressor Block

Splash lubrication

Oil sump content: 4 L

Intake Filter

Air cooled after each stage

Intermediate oil/water separators after each stage (except 1st stage)

Final Oil/water separator

Safety valves after each stage

Final pressure safety valve

Pressure maintaining and check valve

Supervision and control

Final pressure

Auto start

Auto stop

Auto sewage discharge

NRW24 High Pressure Air Cooled Diving Air Compressor Main Specifications

Model Nominal Pressure Free Air Delivery Power Outlet Dimensions Weight
Mpa L/min KW mm mm Kg
NRW24 15~30 400 7.5 ZG1/4 1100*570*730 250
