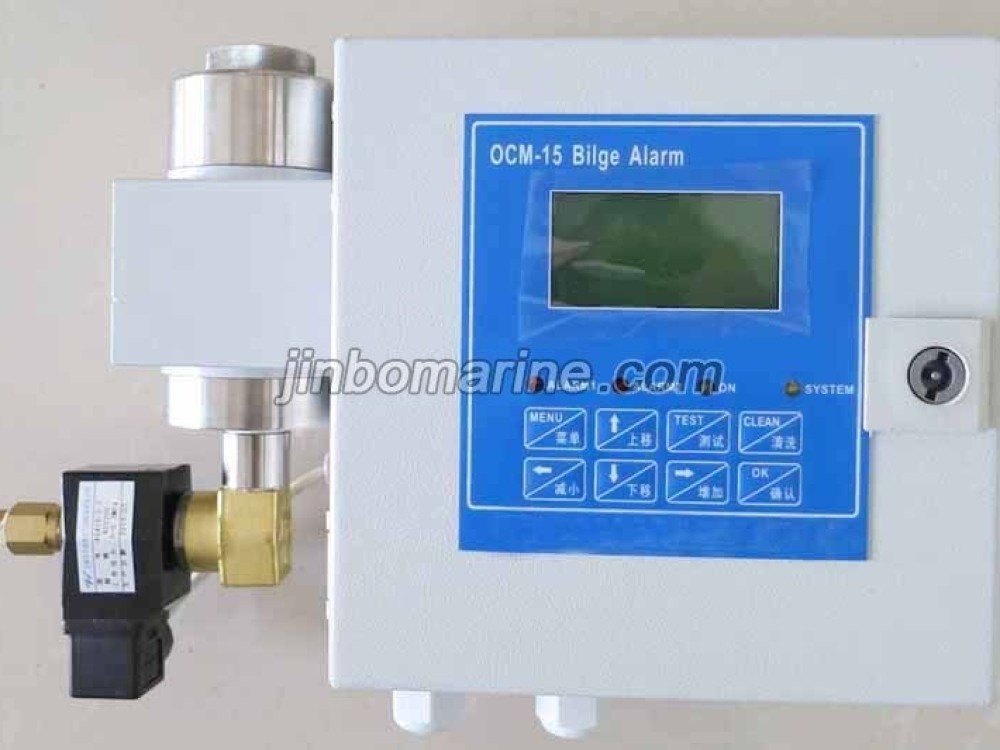

OCM-15 15 PPM Bilge Alarm

OCM-15 15 PPM bilge alarm device is the latest generation monitiring instrument, applicable to ships, continuous monitoring of ship barge oil, with functions of 15 PPM transfinite alarm and control of oil conent.It is usually used with 15 PPM bilge oily water separator.

OCM-15 15 PPM bilge alarm device approved by the China classification society (CCS) type approval, comply with international maritime organization MEPC. (49) resolution 107.

Model	OCM-15
Range	0-30mg/l (up to 50mg/l)
Accuracy	>5mg/l
Linearity	>2%
Display	LCD
Voltage	220VAC/110VAC ±10% 50Hz/60Hz 5%
Power	10VA
Alarm Point	1-15ppm
Factory Setting	15ppm
Alarm output	Two-way relay output
Alarm Display	Yellow LED
Size	360mmW×240mmH×105mD
Protection Class	IP45
Weight	7KG
Connection	R 1/4"
Standards	IMO.Res.MEPC.107（49）Resolution
