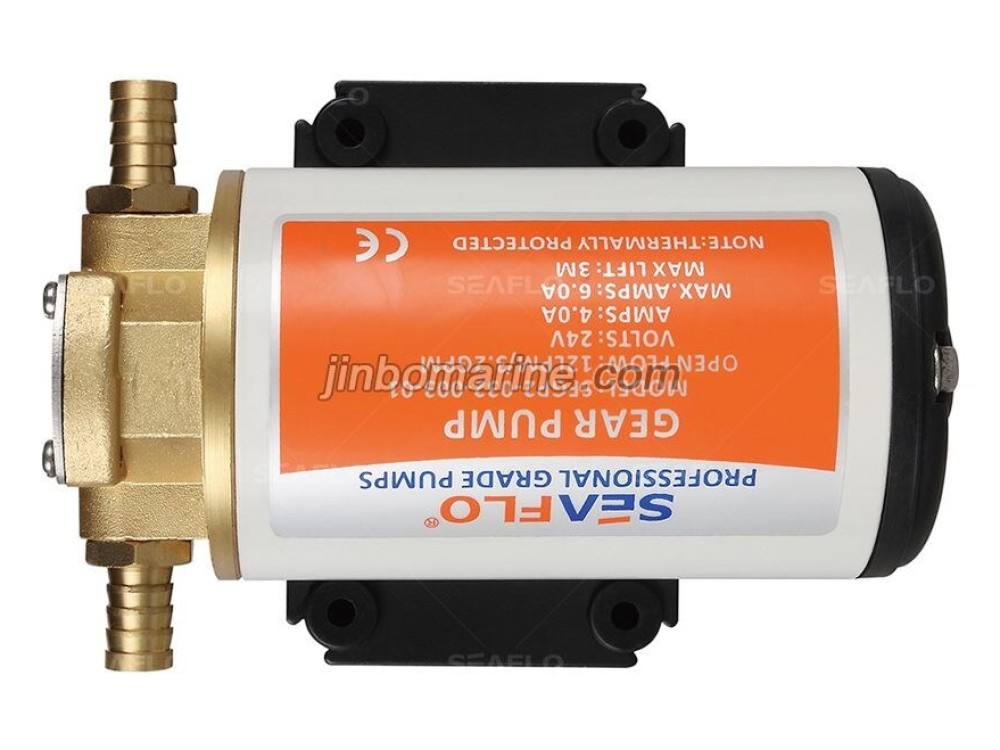

Oil Gear Pumps

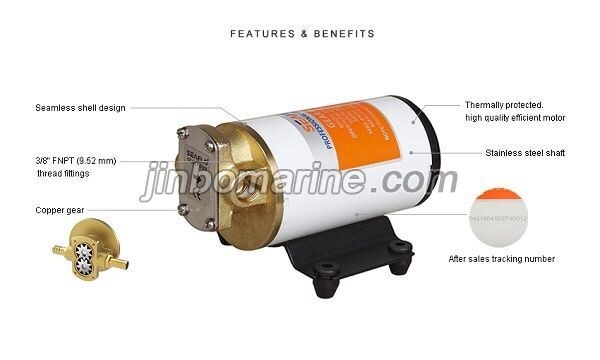

SEAFLO gear pumps are positive displacement pumps, capable of operation in either direction. They may be used to perform a variety of oil transfer applications (DO NOT USE FOR GASOLINE or other combustible fluids). We use robust motors, stainless steel shafts and rugged metal gears. Our tough design provides performance that you can rely on for years.

Parameter pump and motor:

PUMP
Type
Thermally Protected,High Quality Efficient Motor
Max Recommended Temperature 60° C (140° F)
Priming Capabilities 3.2 feet (1 m) suction lift
Head 9.8 feet (3 m) suction lift
Inlet/Outlet Ports 3/8" (10mm) FNPT
Weight 5.46 lbs (2.48kg)
MOTOR
Leads Wire leads
Duty Cycle Intermittent
Max.Amp Draw 10 A

STANDARD PUMP CONFIGURATIONS

Model Voltage Open Flow
(GPM/LPM)
Dimensions Impeller Ports

Max Draw(A)

SFGP1-032-003-01 12V 3.2 / 12.0

7.68" x 5.12 "x 4.25'

195 x 130 x 108mm

Copper 3/8" FNPT 10.0
SFGP2-032-003-01 24V 3.2 / 12.0

7.68" x 5.12 "x 4.25'

195 x 130 x 108mm

Copper 3/8" FNPT 6.0
