Oval Eye Head Fittings

Request a Quote Not what you need, please send your RFQs via Email.

Details

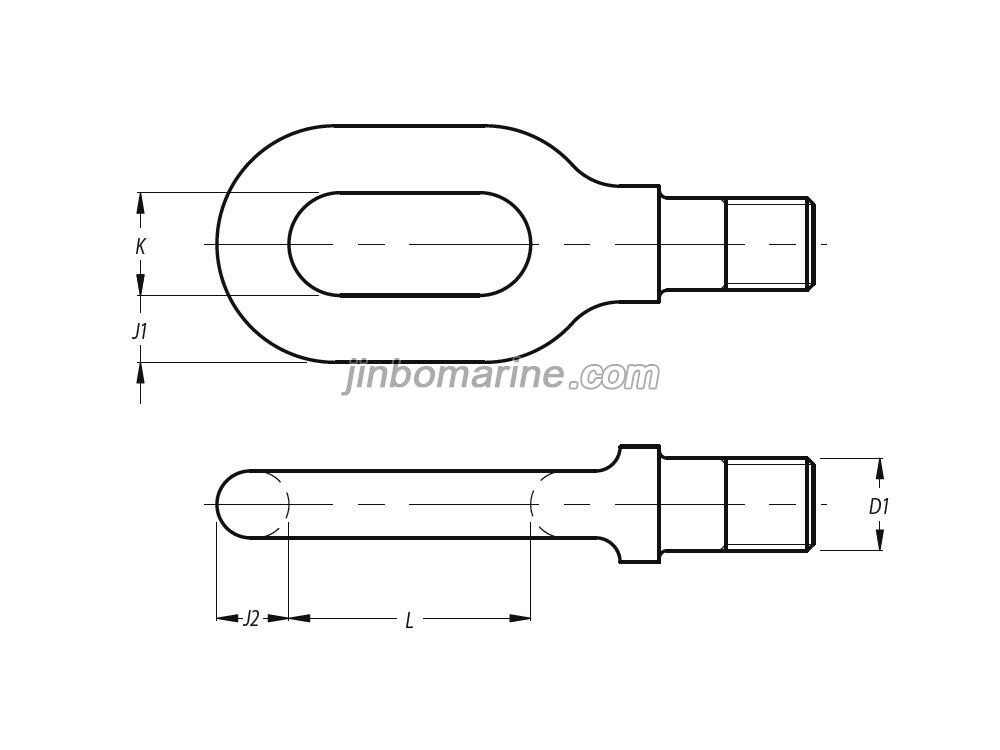

Drawign:

Specification:

Nominal
size
Will(t) Dimensions (mm) Thread
D1
L K J1 J2
1 1 48 21 12 14 M18
1.6 1.6 58 26 16 18 M22
2 2 58 26 16 18 M24
2.5 2.5 72 32 21 23 M27
3 3.2 72 32 21 23 M30
4 4 94 40 26 28 M33
5 5 94 40 26 28 M36
6 6.3 108 45 29 32 M42
8 8 115 49 32 35 M45
10 10 125 54 36 39 M52
12 12.5 144 60 41 44 M56
16 16 163 66 46 49 M64
20 20 173 72 51 54 M72*6
25 25 192 80 56 59 M76*6
32 32 216 90 60 64 M80*6
40 40 240 100 66 70 M90*6
50 50 264 110 74 78 M100*6
63 63 290 120 84 89 M110*6
80 80 325 135 94 99 M120*6
100 100 360 150 105 111 M130*6
125 125 400 165 117 123 M140*6
160 160 440 185 133 140 M160*6
200 200 500 210 149 157 M180*6
250 250 560 235 167 175 M200*6

Product Advantage:

1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service

Packing and Delivery:

1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.

How to Order?

1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
