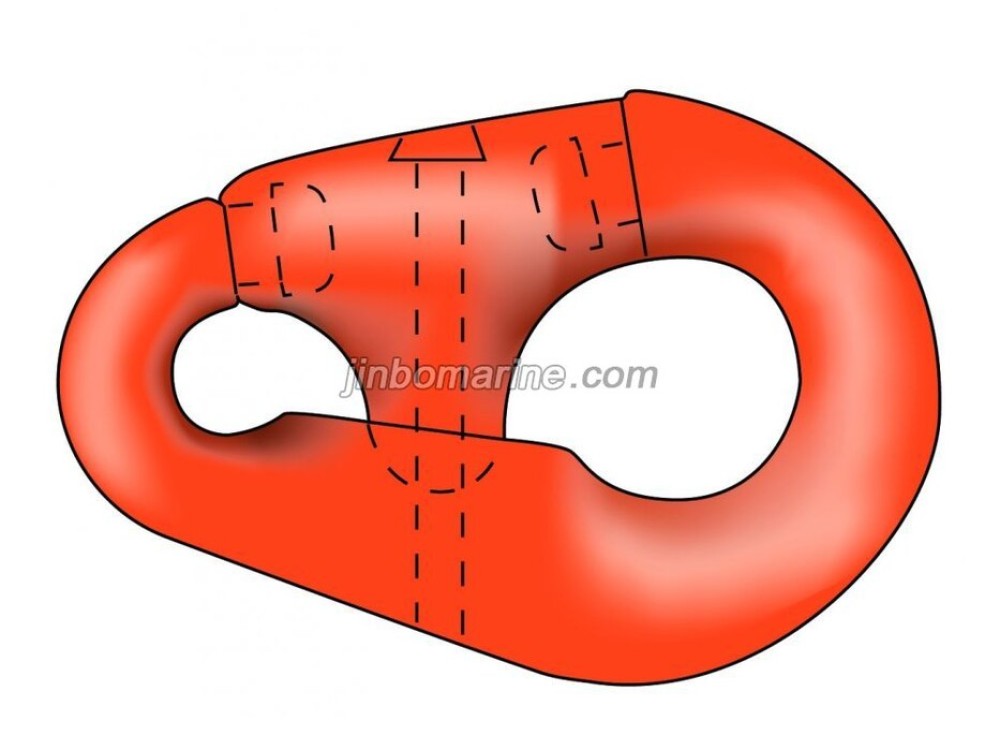

Pear shaped anchor connecting link
- Category:Anchor Chain
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Pear shaped anchor connecting link:

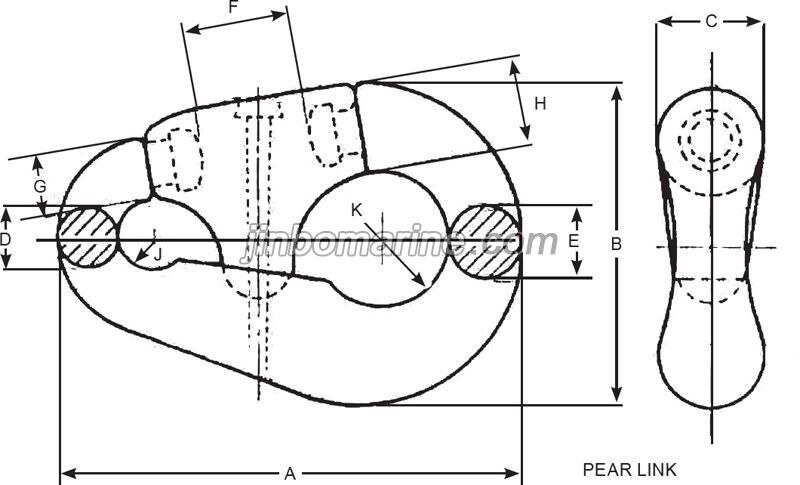

Pear shaped anchor connecting link(Pear Link) dimensions in mm
| NO |
A
|
B | C | D | E | F | G | H | J | K | Weight(KG) |
| 4 | 298 | 206 | 59 | 40 | 48 | 83 | 44x44 | 56 | 26 | 43 | 13 |
| 5 | 378 | 260 | 76 | 51 | 64 | 100 | 51x60 | 74 | 32 | 52 | 27 |
| 6 | 454 | 313 | 92 | 60 | 76 | 121 | 62x73 | 88 | 37 | 64 | 49 |
| 7 | 562 | 376 | 117 | 79 | 95 | 149 | 85x79 | 111 | 48 | 76 | 94 |
| 8 | 654 | 419 | 133 | 92 | 124 | 149 | 111 x 102 | 130x133 | 54 | 79 | 149 |
| 9 | 692 | 435 | 146 | 98 | 130 | 159 | 124 x 137 | 141 | 57 | 83 | 236 |
| 10 | 889 | 571 | 190 | 121 | 165 | 190 | 130 | 181 | 73 | 108 | 386 |
| 11 | 940 | 610 | 203 | 127 | 175 | 203 | 156 | 200 | 76 | 111 | 418 |
The description/sizes may be different with goods, please check with us when order.
