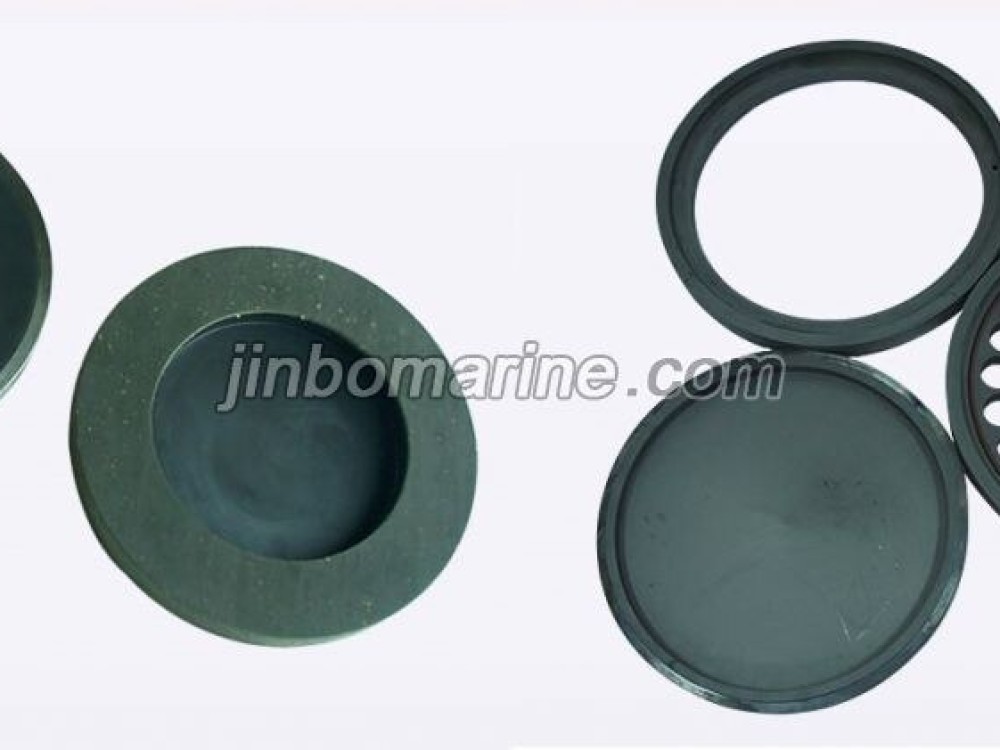

PM Bursting Disc

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China PM Bursting Disc:

The graphite bursting code is PM.

Structure features:

Flat graphite bursting disc device (PM type) is a bursting disc device with the graphite materials as the substrate. The bursting disc is destroyed after being pressed due to bending or shearing force.

Technical features:

1. The graphite bursting disc has high corrosive-resistance performance, applied in a variety of medium with strong corrosion.

2．With the support to withstand the back pressure (code: PMT);
3．The maximum operating pressure reaches 70% of bursting pressure;
4．Due to material restrictions on its own strength, bursting pressure has some limitations. Fragments may arise in bursting, so the serial usage with the safety relief valve is not recommended.
5．The maximum operating temperature shall not be over 240 ℃;

6．It can be installed between flanges individually or used with the holder.

Parameter:

DN (mm)

Bursting Pressure Range (MPa)

DN25

1~2.0

DN40

0.3~2.0

DN50

0.1~1.8

DN80

0.05~1.5

DN100

0.05~1.2

DN125

0.05~1.0

DN150

0.04~1.0

DN200

0.04~0.8

DN250

0.03~0.8

DN300

0.02~0.7

DN400

0.015~0.6

DN500

0.015~0.6
