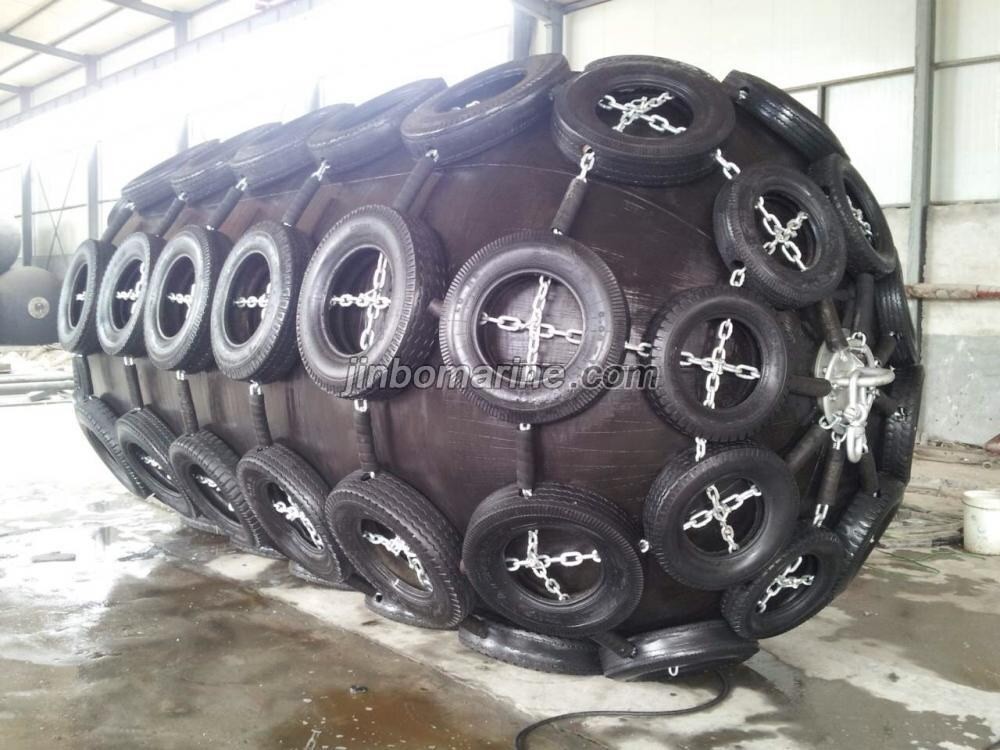

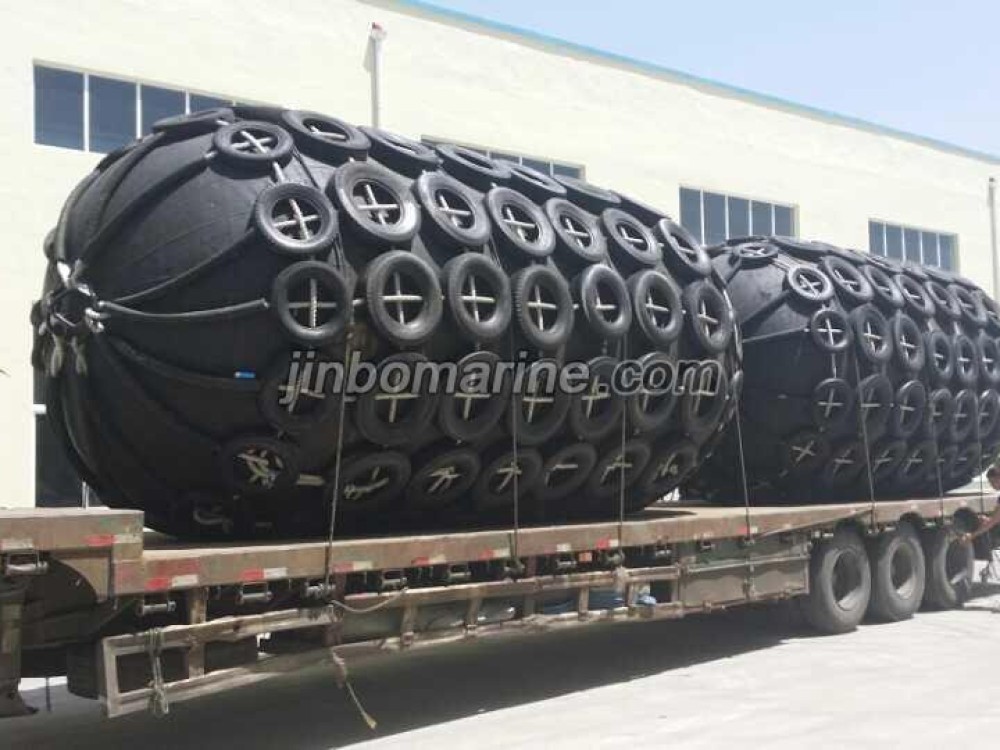

Pneumatic Fender

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Specification

Pneumatic fender can be called as vessel pneumatic rubber fender,high pressure yokohama fender yokohama rubber fender,marine pneumatic rubber,floating fenders,yokohama rubber fender,pneumatic floating rubber fender,marine pneumatic rubber fenders, pneumatic rubber fenders,marine pneumatic rubber fenders,marine pneumatic rubber floating fenders,marine charged rubber dependable ball,high pressure pneumatic yokohama rubber fender,cord netwok pneumatic rubber fender,dock floating rubber fender,quay floating rubber fender etc.

Features:

1.High energy absorption and low reaction force and surface pressure.

2.No decline in the rate of energy absorption when obliquely compressed, under normal circumstances, and uniform surface pressure for any contact area.

3. Low reaction force to prevent damage from repeated impacts against the hull of ship, quay, jetty or mooring rope.

4.Ability to float and rise and fall with the ebb and flow of tides and the movements of a ship.

5.High standard of uniform quality in compression performance with no deterioration of the rubber.

6.Easy installation.

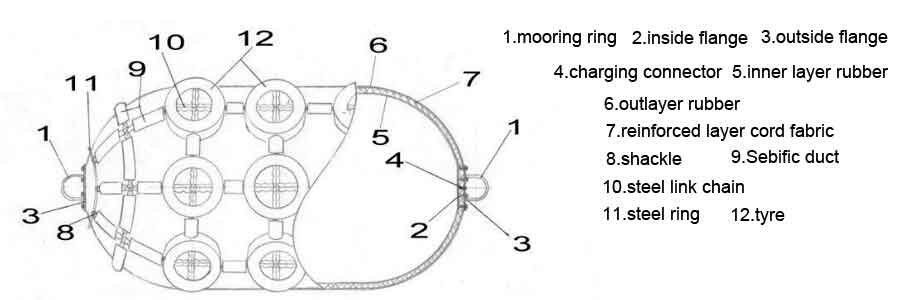

Structure Of Pneumatic Rubber Fender

Size Chart

Specifications (mm)

At 60% compression;

Fender Boday Weight

Initial Pressure is 0.05MPa

±10%

Diameter

Length

Energy Absorption

Reaction Force

KG

(KJ)

(KN)

200

500

2

25

6

300

500

3

32

12

500

1000

6

64

25

600

1200

10

86

35

700

1500

17

137

50

1000

1500

32

181

80

1000

2000

45

257

100

1200

2000

63

297

120

1350

2500

100

426

170

1500

3000

153

579

320

1700

3000

190

637

400

2000

3500

308

875

590

2500

4000

663

1380

1000

2500

5500

932

2010

1400

3000

5000

1050

2030

1800

3000

6000

1315

2488

2200

3300

6500

1814

3015

2700

3500

6000

2018

3286

2800

3500

6500

2325

3656

3200

3500

7000

2650

4018

3600

3600

7200

3180

4821

4320

Remark

1.Pneumatic Rubber Fenders with initial pressure 0.08MPa also can be supplied.
2.Other sizes besides the above also can be customized.
3.All fenders conform to the latest ISO 17357 directives standard.
4.All kinds of foam filled marine fenders can be available.
5.Can be delivered in various sizes with chain - vehicle/ aircraft tyre net.

Application of Pneumatic Rubber Fender

1.It is installed in the dock or port, it is used when ships berth.

2.It is installed on shipboard, it is used when berthing in the sea.

3.Other applications of Pneumatic Rubber Fender:

a.Can be used as a buoy;

b.Can be used for carrying goods;

c.Can be used as sealing material of pipes.
