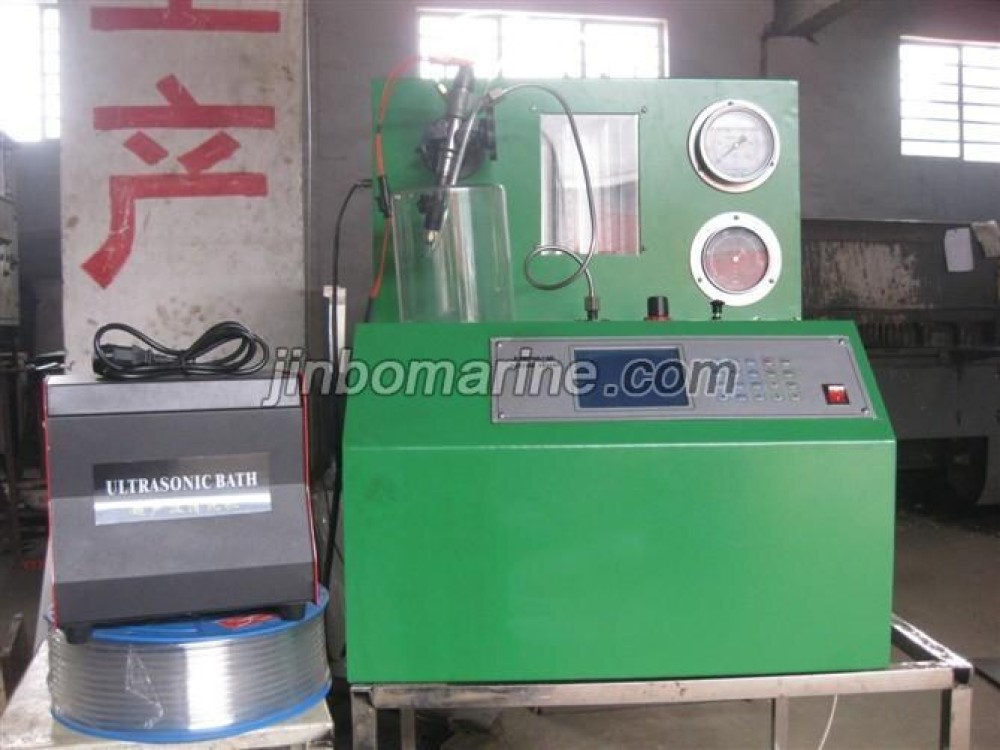

PQ-1000 Common Rail Injector Tester

PQ1000 high-pressure common rail injector test stand, for the German Bosch (BOSCH),Denso (DENSO), the United States Delphi (DELPHI) and other high-pressure common rail injector working performance testing.

Real-time computer controlled fuel injector work, accurate and reliable, easy to operate,plexiglass protective doors, to ensure safety at work, the product performance, stability,technical lead, deeply domestic and foreign users.

• Power Supply: ~ 220V/50HZ (60HZ).
• Input gas source: 0.6Mpa. 36l/min.
• Total pressure continuously adjustable: 0 ~ 200Mpa.
• Pressure Gauge pressure: 0 --- 300Mpa.
• Air Show Table: 0-1.6Mpa.
• Graduated cylinder: 150ml
• Fuel Injector operating frequency continuously adjustable 0-60HZ.
• Injector pulse width can be set to the work of 0.2ms-1ms.
