CB Marine Air Pipe Head

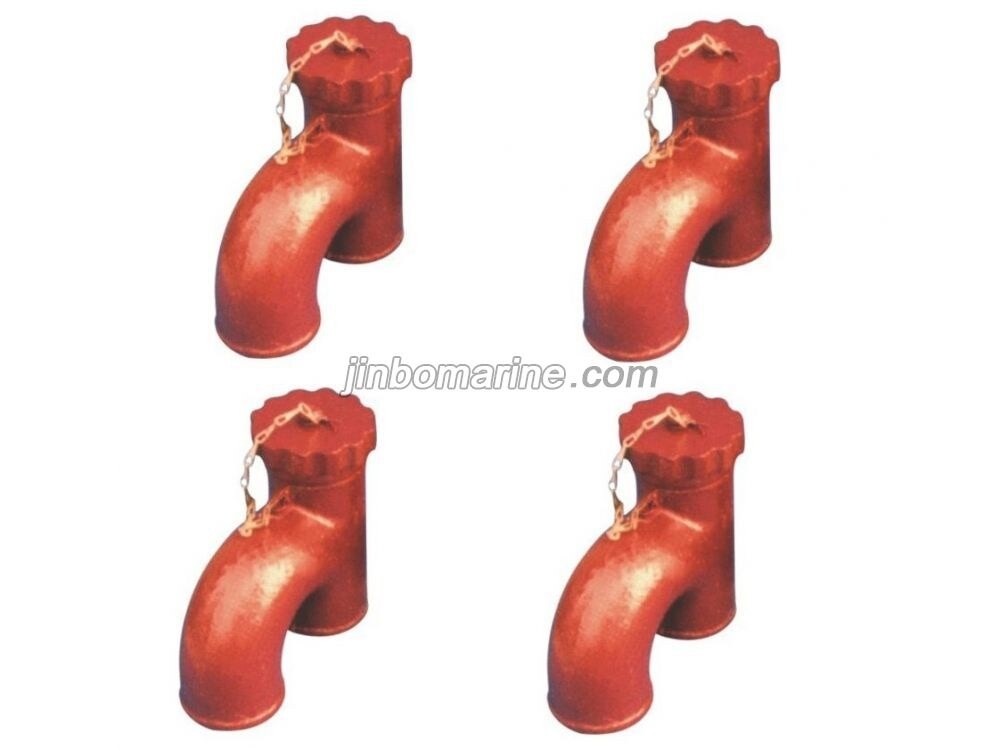

Air Pipe Head CB/T3594-94 Type C/CS

Air Pipe Head CB/T3594-94 Type C/CS is Sounding & Ventilation Air Pipe Head. Air Pipe Head is called air vent head, air pipe joint. It is a kind of check valve used on the air pipe system of oil or water t...

ISO9001 Supplier Class Certificate Export Supply
Air Pipe Head CB/T3594-94 Type C/CS

Key Highlights

Category
CB Marine Air Pipe Head
Standard
DIN
Material
Cast Iron
Weight / Size
Cast Iron HT200 Type Name Size Application A/AS Mushroom Air Pipe Head 5...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
CB Marine Air Pipe Head
Model / SKU
Air-Pipe-Head-CB-T3594-94-Type-C-CS
Standard
DIN
Material
Cast Iron
Weight / Size
Cast Iron HT200 Type Name Size Application A/AS Mushroom Air Pipe Head 50--250 on the air pipe top of oil &water tank B/BS Gooseneck Air Pipe Head C/CS Sounding & Ventilation Air Pipe Head 50--100 D/DS Float Disc Type Air Pipe Head for Oil Tank 50-450 on the air pipe top of oil tank E/ES Float Disc Type Air Pipe Head for Water Tank on the air pipe top of water tank FS Float Ball Type Air Pipe Head for oil &water Tank on the air pipe top of oil & water tank Main Size List for C/CS Type(mm):
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China Air Pipe Head CB/T3594-94 Type C/CS:

Air Pipe Head CB/T3594-94 Type C/CS is Sounding & Ventilation Air Pipe Head.

Air Pipe Head is called air vent head, air pipe joint. It is a kind of check valve used on the air pipe system of oil or water tank in the vessels and the offshore drilling platform. There are the types A/AS,B/BS,C/CS,D/DS,E/ES, FS.

Technical Specification:

Standard: CB/T3594-94, GB1858-80, CBM1105-81, CBM1106-81

Material: Cast Iron HT200

Type Name Size Application
A/AS Mushroom Air Pipe Head 50--250 on the air pipe top of oil &water tank
B/BS Gooseneck Air Pipe Head
C/CS Sounding & Ventilation Air Pipe Head 50--100
D/DS Float Disc Type Air Pipe Head for Oil Tank 50-450 on the air pipe top of oil tank
E/ES Float Disc Type Air Pipe Head for Water Tank on the air pipe top of water tank
FS Float Ball Type Air Pipe Head for oil &water Tank on the air pipe top of oil & water tank


Main Size List for C/CS Type(mm):

DN H H1 D R δ D2 D1 b n d0 Weight
50 280 80 60 60 6 135 103 15 6 15 4.1
50 280 80 60 60 6 140 110 16 4 14 4.54
80 310 80 90 80 7.5 170 138 14 8 15 9.01
80 310 80 90 80 7.5 190 150 18 4 18 9.2
100 270 80 103 100 8 190 158 14 8 15 12.9
100 270 80 103 100 8 210 170 18 4 18 13.11
