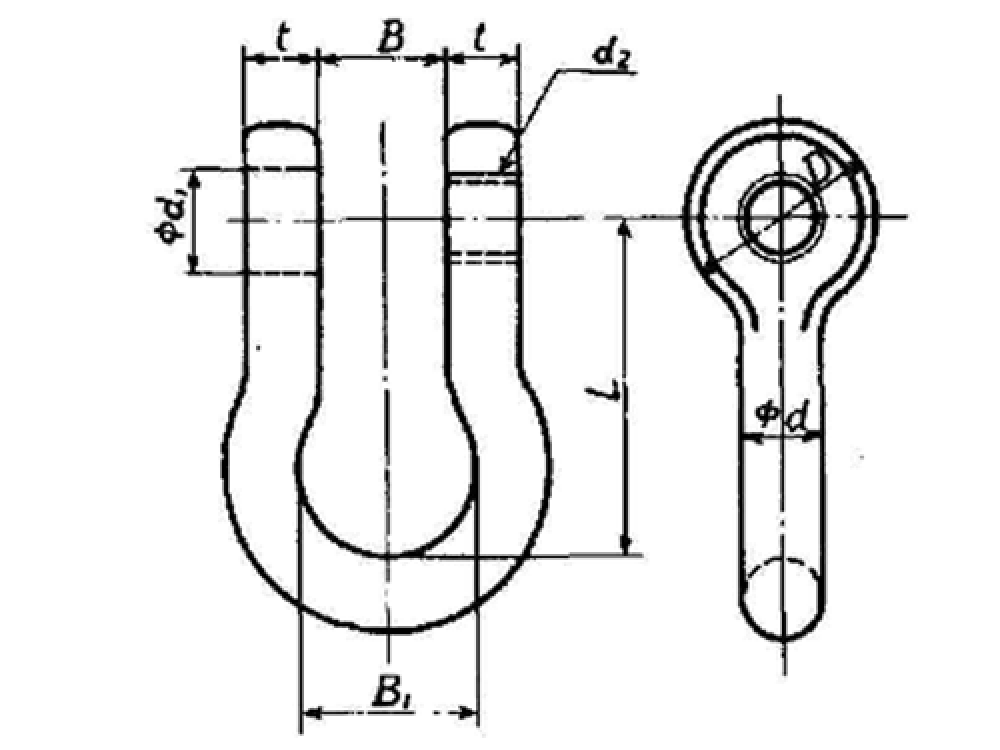

BC Type JIS B2801 Bow Shackle

BC Type JIS B2801 Bow Shackle Technical Specification Nominal Size t d B B1 D ...

ISO9001 Supplier Class Certificate Export Supply

Key HighlightsCategory
Shackle
Standard
JIS
Weight / Size
BC Type JIS B2801 Bow Shackle Technical Specification Nominal Size t d B...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category

Shackle

Model / SKU

BC-Type-JIS-B2801-Bow-Shackle

Standard

JIS

Weight / Size

BC Type JIS B2801 Bow Shackle Technical Specification Nominal Size t d B B1 D d1 L Weight(kg) 6 6 8 11 20 17 9 36 0.07 8 8 10 14 25 21 11 45 0.15 10 10 12 17 30 25 13 54 0.31 12 12 14 20 35 32 16 63 0.48 14 14 16 24 40 36 18 72 0.67 16 16 18 26 45 40 20 80 0.93 18 18 21 29 53 45 22 95 1.35 20 20 23 31 58 50 25 104 2.15 22 22 26 34 65 55 27 117 2.98 24 24 28 39 70 62 31 126 3.77 26 26 30 41 75 66 33 135 4.45 28 28 32 43 80 70 35 144 5.36 30 30 34 45 85 75 37 153 6.1 32 32 37 48 93 80 39 167 7.56 34 34 39 50 98 85 41 176 9.05 36 36 42 54 105 90 43 190 10.32 38 38 44 57 110 95 47 198 11.7 40 40 47 60 118 100 49 212 13.13 Working Loat Limits

Certificate

ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

Warranty

12 Months unless specified otherwise

Origin

China

Technical Specification

Nominal Size	t	d	B	B1	D	d1	L	Weight(kg)
6	6	8	11	20	17	9	36	0.07
8	8	10	14	25	21	11	45	0.15
10	10	12	17	30	25	13	54	0.31
12	12	14	20	35	32	16	63	0.48
14	14	16	24	40	36	18	72	0.67
16	16	18	26	45	40	20	80	0.93
18	18	21	29	53	45	22	95	1.35
20	20	23	31	58	50	25	104	2.15
22	22	26	34	65	55	27	117	2.98
24	24	28	39	70	62	31	126	3.77
26	26	30	41	75	66	33	135	4.45
28	28	32	43	80	70	35	144	5.36
30	30	34	45	85	75	37	153	6.1
32	32	37	48	93	80	39	167	7.56
34	34	39	50	98	85	41	176	9.05
36	36	42	54	105	90	43	190	10.32
38	38	44	57	110	95	47	198	11.7
40	40	47	60	118	100	49	212	13.13
