Brass Needle Valve is used to connect the copper tubing, control the flow of liquids or gas requiring close regulating. Made of brass rods and brass except for "O" rings.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
JIS Needle Valve

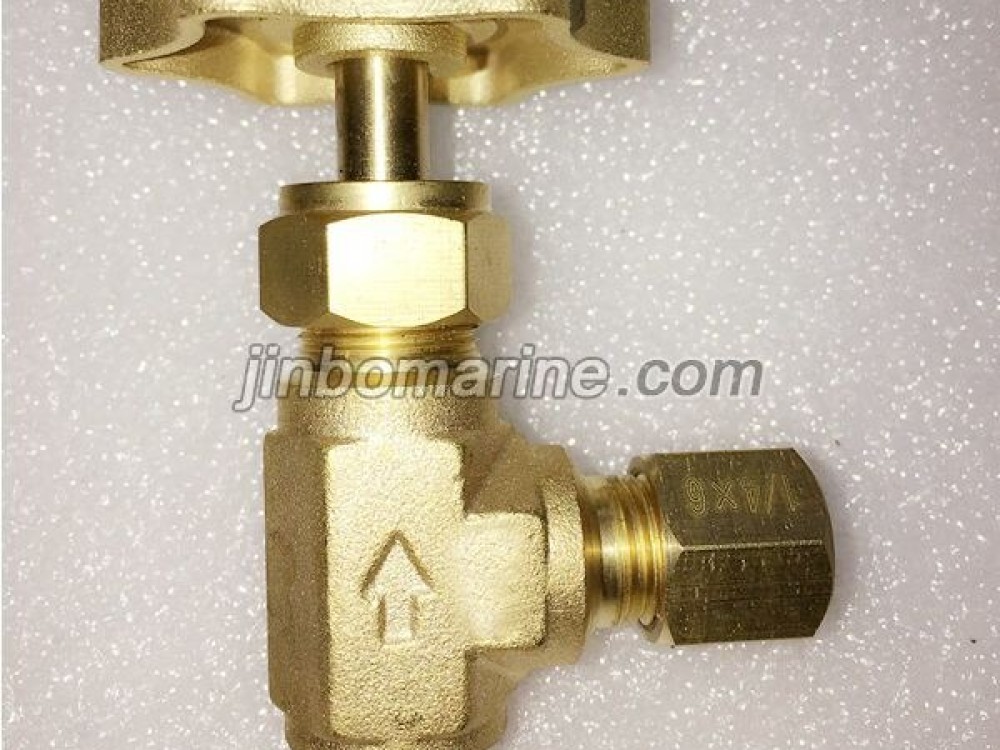

Brass Needle Angle Valve with Ring Joint Nut at Outlet
Brass Needle Valve is used to connect the copper tubing, control the flow of liquids or gas requiring close regulating. Made of brass rods and brass except for "O" rings. Technical Specification: 1. Applicabl...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
JIS Needle Valve
Standard
EN
Material
Brass
Weight / Size
3.43Mpa (35kgf/cm2) 3.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
JIS Needle Valve
Model / SKU
Brass-Needle-Angle-Valve-with-Ring-Joint-Nut-at-Outlet
Standard
EN
Material
Brass
Weight / Size
3.43Mpa (35kgf/cm2) 3.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China Brass Needle Angle Valve with Ring Joint Nut at Outlet:
Technical Specification:
1. Applicable temperature will be -20℃ to 100℃
2. Max Pressure: 3.43Mpa (35kgf/cm2)
3. Recommended for use at less than 80% of max load pressure at temperature between 80℃ and 100℃.
Main Size(mm):
| IMPA | Nominal Size | OD of Tube | Thread | Height | Length | |
| Ring Joint Side | Male Thread | |||||
| 752116 | 6 x 1/8 | 6 | PF-1/4 | PT-1/8 | 55 | 27 |
| 752117 | 6 x 1/4 | 6 | PF-1/4 | PT-1/4 | 58 | 27 |
| 752118 | 8 x 1/4 | 8 | PF-3/8 | PT-1/4 | 65 | 28 |
| 752119 | 10 x 3/8 | 10 | PF-3/8 | PT-3/8 | 73 | 34 |
| 752120 | 12 x 1/2 | 12 | PF-1/2 | PT-1/2 | 76 | 38 |
| 752121 | 14 x 1/2 | 14 | PF-1/2 | PT-1/2 | 76 | 40 |
