Electro Hydraulic Actuator with high accuracy, fast response, and can achieve high precision control, the transmission is stable and reliable, and the travel regulation is acurate, low speed large torque transmission without speed reduction device,actuator for controlling the 0 degree to 90 degreee rotary valves and other products, such as butterfly valve,ball valves,air door, flapper valve, plug valve, such as louver valves, can be widely used in petroleum, chemical, water,marine,pulp and paper,power, heating,light industry and other industries.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Actuator Series

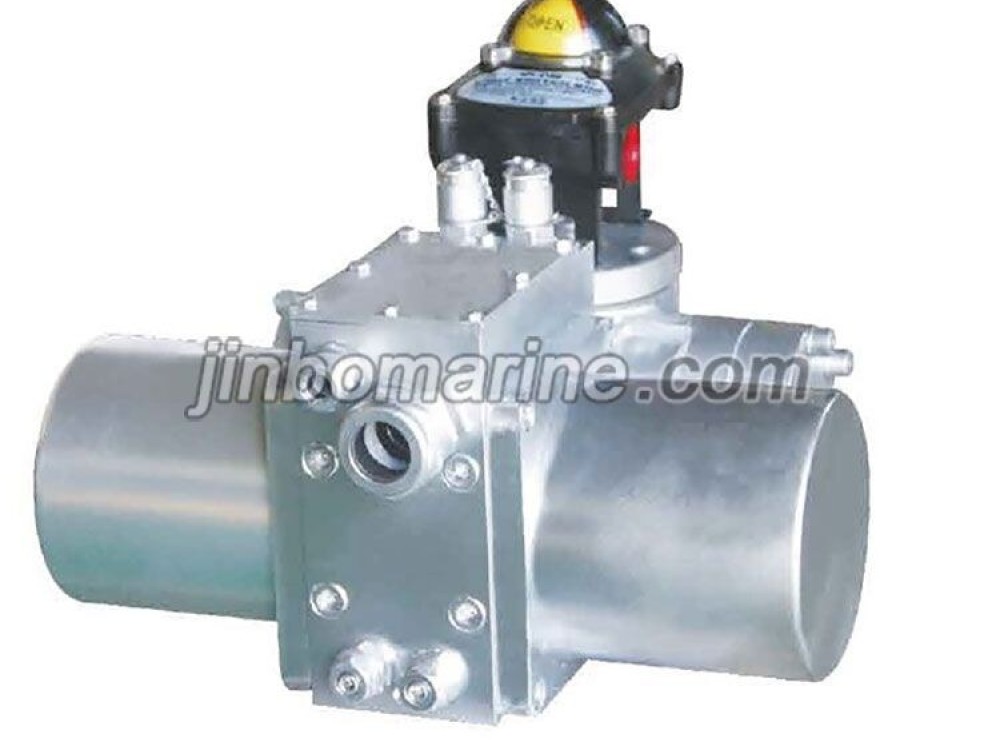

CG-EHA Electro Hydraulic Actuator
Electro Hydraulic Actuator with high accuracy, fast response, and can achieve high precision control, the transmission is stable and reliable, and the travel regulation is acurate, low speed large torque transmission wit...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Actuator Series
Standard
ISO
Weight / Size
Model:CG-EHA Voltage:220V 50HZ Working pressure:11Mpa Rotating angle:90 ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Actuator Series
Model / SKU
CG-EHA-Electro-Hydraulic-Actuator
Standard
ISO
Weight / Size
Model:CG-EHA Voltage:220V 50HZ Working pressure:11Mpa Rotating angle:90 ±5 degree Ambient temperature:-20 ℃ to 80 ℃ Protection Class:IP67 Output signal:0/S 4 to 20mA Outside Dimension:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China CG-EHA Electro Hydraulic Actuator:
Technical Specification:
Model:CG-EHA
Voltage:220V 50HZ
Working pressure:11Mpa
Rotating angle:90 ±5 degree
Ambient temperature:-20 ℃ to 80 ℃
Protection Class:IP67
Output signal:0/S 4 to 20mA
Outside Dimension:
| Model | CG-HA40 | CG-HA50 | CG-HA60 | CG-HA70 | CG-HA80 | CG-HA100 |
| ISO Flange | F05-F07 | F07-F10 | F10-F12 | F12 | F12-F14 | F14-F16 |
| A | 294 | 315 | 385 | 492 | 577 | 724 |
| B | 305 | 305 | 357 | 415 | 429 | 479 |
| C | 215 | 230 | 250 | 260 | 280 | 320 |
| Φ F | 18 | 18/22 | 22/28 | 28/36 | 36/42 | 50 |
| Φ 0 | 50 | 70 | 102 | / | 125 | 140 |
| Φ 01 | 70 | 102 | 125 | 125 | 140 | 165 |
| P | 4-M6 | 4-M8 | 4-M10 | / | 4-M12 | 4-M16 |
| P1 | 4-M8 | 4-M10 | 4-M12 | 4-M12 | 4-M16 | 4-M20 |
| b | 5/6 | 6/8 | 8/10 | 10 | 10/12 | 16 |
| Max Torque | 240 | 400 | 690 | 1130 | 2050 | 3650 |
