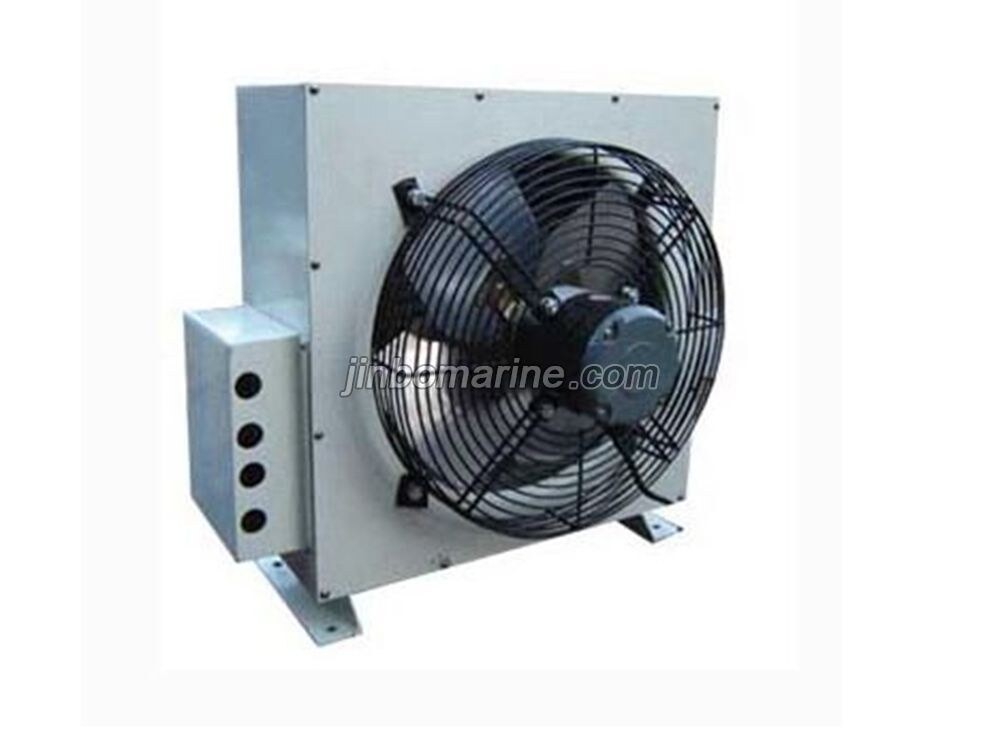

CNFZ Marine Steam Heating Air Fan Unit

Description: The heating unit, with 0.3Mpa saturated steam as the heating medium, is a critical equipment in main engine room, auxiliary machinery compartment and other compartments. When the ship is pulled in a...

ISO9001 Supplier Class Certificate Export Supply

Key HighlightsCategory
Marine Air Conditioner
Standard
EN
Weight / Size
Type 4CNFZ2 9CNFZ2 11CNFZ2 13CNFZ2 15CNFZ2 18CNFZ2 21CNFZ2 29CNFZ2 35CNF...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category

Marine Air Conditioner

Model / SKU

CNFZ-Marine-Steam-Heating-Air-Fan-Unit

Standard

Weight / Size

Type 4CNFZ2 9CNFZ2 11CNFZ2 13CNFZ2 15CNFZ2 18CNFZ2 21CNFZ2 29CNFZ2 35CNFZ2 Heating Capacity KW 4.8 10.4 12.9 14.7 17.8 21.2 24.6 33.4 41.2 Steam pressure Mpa 0.3～0.4 0.3～0.4 0.3～0.4 0.3～0.4 0.3～0.4 0.3～0.4 0.3～0.4 0.3～0.4 0.3～0.4 Steam consumption Kg/h 8.3 17.9 22.2 25.3 30.2 36.5 42.3 57.4 70.8 Air flow m3/h 400 900 1100 1300 1500 1800 2100 2900 3500 Fan motor power kw 0.06 0.12 0.12 0.12 0.12 0.18 0.25 0.37 0.37 Noise dB(A) ≤54 ≤59 ≤62 ≤62 ≤66 ≤68 ≤70 ≤73 ≤73 Weight Kg 43 45 47 49 55 57 59 75 77 Dimension L(mm) 520 520 520 520 520 520 520 630 630 L1(mm) 420 420 420 420 420 420 420 520 520 H(mm) 450 450 450 450 595 595 450 700 700 W(mm) 350 350 350 350 450 450 350 550 550 B(mm) 225 225 225 225 280 280 225 340 340 B1(mm) 160 160 160 160 160 160 160 260 260 DN(mm) 25 25 25 25 25 25 32 32 40 Power Supply AC380V/440V 3P 50/60Hz AC220/230V 1P 50/60Hz

Certificate

ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

Warranty

12 Months unless specified otherwise

Origin

China

Description:

The heating unit, with 0.3Mpa saturated steam as the heating medium, is a critical equipment in main engine room, auxiliary machinery compartment and other compartments. When the ship is pulled in and the ambient temperature is close to 0℃, the unit must be started to keep the temperature in each compartment above 0℃to avoid the damage of the equipment and pipelines inside due to low temperature and facilitate the preparation for next voyage of the ship.

This equipment is composed of heat radiation coil pipe and axial fan.

Technical Data:

Type		4CNFZ2	9CNFZ2	11CNFZ2	13CNFZ2	15CNFZ2	18CNFZ2	21CNFZ2	29CNFZ2	35CNFZ2
Heating Capacity KW		4.8	10.4	12.9	14.7	17.8	21.2	24.6	33.4	41.2
Steam pressure Mpa		0.3～0.4	0.3～0.4	0.3～0.4	0.3～0.4	0.3～0.4	0.3～0.4	0.3～0.4	0.3～0.4	0.3～0.4
Steam consumption Kg/h		8.3	17.9	22.2	25.3	30.2	36.5	42.3	57.4	70.8
Air flow m3/h		400	900	1100	1300	1500	1800	2100	2900	3500
Fan motor power kw		0.06	0.12	0.12	0.12	0.12	0.18	0.25	0.37	0.37
Noise dB(A)		≤54	≤59	≤62	≤62	≤66	≤68	≤70	≤73	≤73
Weight Kg		43	45	47	49	55	57	59	75	77
Dimension	L(mm)	520	520	520	520	520	520	520	630	630
	L1(mm)	420	420	420	420	420	420	420	520	520
	H(mm)	450	450	450	450	595	595	450	700	700
	W(mm)	350	350	350	350	450	450	350	550	550
	B(mm)	225	225	225	225	280	280	225	340	340
	B1(mm)	160	160	160	160	160	160	160	260	260
	DN(mm)	25	25	25	25	25	25	32	32	40
Power Supply	AC380V/440V 3P 50/60Hz AC220/230V 1P 50/60Hz
