Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Load Binder

Claw Type Load Binder

Size Table Item Chain Size Working Load Limit Proof Load (lbs) Minimum Ultimate Load W...

ISO9001 Supplier Class Certificate Export Supply

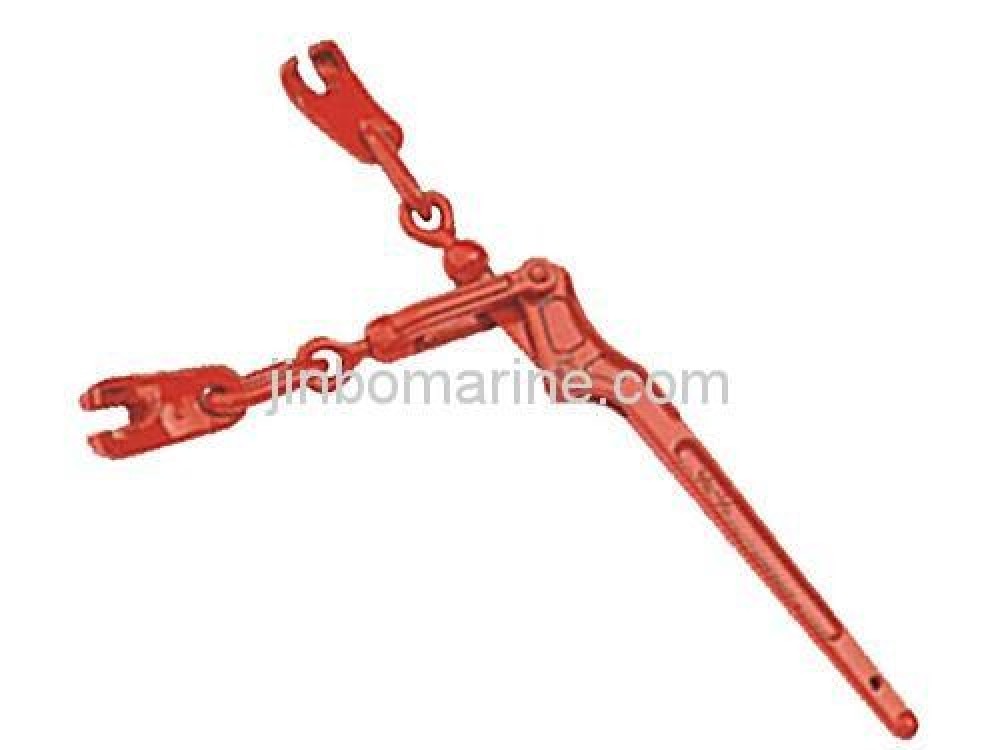

Claw Type Load Binder

Key Highlights

Category
Load Binder
Standard
EN
Material
45# Steel
Weight / Size
Size Table Item Chain Size Working Load Limit Proof Load (lbs) Minimum U...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Load Binder
Model / SKU
Claw-Type-Load-Binder
Standard
EN
Material
45# Steel
Weight / Size
Size Table Item Chain Size Working Load Limit Proof Load (lbs) Minimum Ultimate Load Weight Handle Length Dimension(in) (in.) (lbs.) (lbs.) (lbs.) (lbs.) (in.) A B C D E F G JB50 1/4-5/16 2600 5200 7800 3.6 11.42 20.66 18.7 15.35 11.42 8.85 8.85 0.35 JB51 5/16-3/8 5400 10800 19000 8.56 15.43 25.2 25.2 21.46 15.55 12.2 12.2 0.47 JB52 3/8-1/2 9200 18400 28000 12.38 17.24 28.15 28.7 24.61 17.52 13.58 13.58 0.59
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

Size Table

Item Chain Size Working Load Limit Proof Load (lbs) Minimum Ultimate Load Weight Handle Length Dimension(in)
(in.) (lbs.) (lbs.) (lbs.) (lbs.) (in.) A B C D E F G
JB50 1/4-5/16 2600 5200 7800 3.6 11.42 20.66 18.7 15.35 11.42 8.85 8.85 0.35
JB51 5/16-3/8 5400 10800 19000 8.56 15.43 25.2 25.2 21.46 15.55 12.2 12.2 0.47
JB52 3/8-1/2 9200 18400 28000 12.38 17.24 28.15 28.7 24.61 17.52 13.58 13.58 0.59
