Rope Thimbles

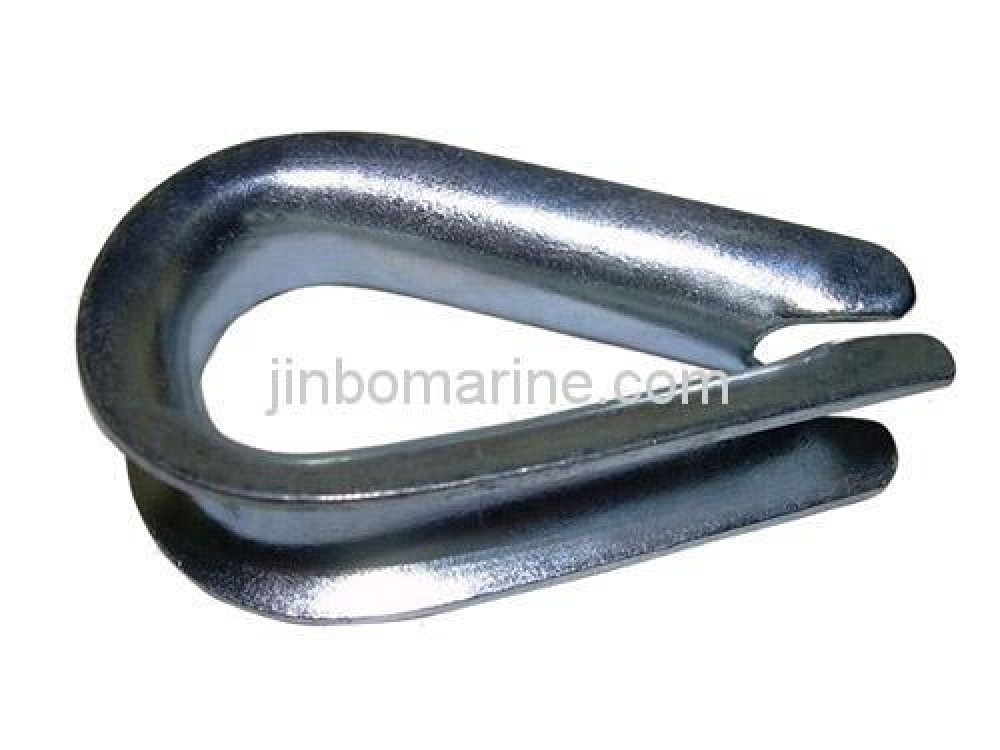

DIN6899A Thimble

DIN6899A Thimble Material: Q235 Finish: Hot Dip Galvanized. Size: 1/8" to 1 1/4" Packing: Carton Use: Rigging for Wire Rope or Mooring Rope. Size Table ...

ISO9001 Supplier Class Certificate Export Supply

Key HighlightsCategory
Rope Thimbles
Standard
DIN
Material
DIN6899A Thimble Material:
Weight / Size
Size:
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

China DIN6899A Thimble:

DIN6899A Thimble

Material: Q235

Finish: Hot Dip Galvanized.

Size: 1/8" to 1 1/4"

Packing: Carton

Use: Rigging for Wire Rope or Mooring Rope.

Size Table

SIZE(mm)	Dimensions（mm）							WT /100PCS(kg)
SIZE(mm)	A	B	C	D	E	F	H	WT /100PCS(kg)
2.5	28	21.5	16	10	5	3	1	0.14
3	30	23.5	17	11	5.5	3.5	1	0.35
4	34	26.5	19	12	6	4	1	0.42
5	36	28	20	13	7	5	1	0.8
6	38	30	22	14	8	6	1	0.85
7	43	33	24	15	9	7	1.2	1.1
8	46	35	26	16	10	8	1.2	1.7
9	50	39	29	18	11	9	1.2	2.1
10	56	43	32	20	13	10	1.5	3.5
11	63	47.5	36	22	14	11	1.5	3.7
12	68	51.5	40	24	15	12	1.5	5.25
13	75	56.5	44	26	17	13	2	7.25
14	82	61	48	28	18	14	2	8.33
16	91	69.5	54	32	21	16.5	2.5	12.3
18	102	78	59	35	24	18	3	18.5
20	114	86.5	68	40	28	20	4	31.5
22	126	95	76	44	30	22	4	36.5
24	135	103.5	84	48	32	24	4	41.7
28	162	120.5	100	56	38	28	5	72.1
