| SIZE | A mm | B mm | C mm | SWL kgs | BL kgs |
| M6x40 | M6 | 13 | 40 | 250 | 1000 |
| M6x60 | M6 | 13 | 60 | 250 | 1000 |
| M6x80 | M6 | 13 | 80 | 250 | 1000 |
| M6x 100 | M6 | 13 | 100 | 250 | 1000 |
| M8x60 | M8 | 17 | 60 | 450 | 1800 |
| M8x80 | M8 | 17 | 80 | 450 | 1800 |
| M8x 100 | M8 | 17 | 100 | 600 | 2400 |
| M10x60 | M10 | 21 | 60 | 600 | 2400 |
| M10x80 | M10 | 21 | 80 | 600 | 2400 |
| M10x100 | M10 | 21 | 100 | 875 | 3500 |
| M12x80 | M12 | 25 | 80 | 875 | 3500 |
| M12x100 | M12 | 25 | 100 | 875 | 3500 |
| M12 x 120 | M12 | 25 | 120 | 875 | 3500 |
| M12x150 | M12 | 25 | 150 | 875 | 3500 |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Eye Bolts & Nuts

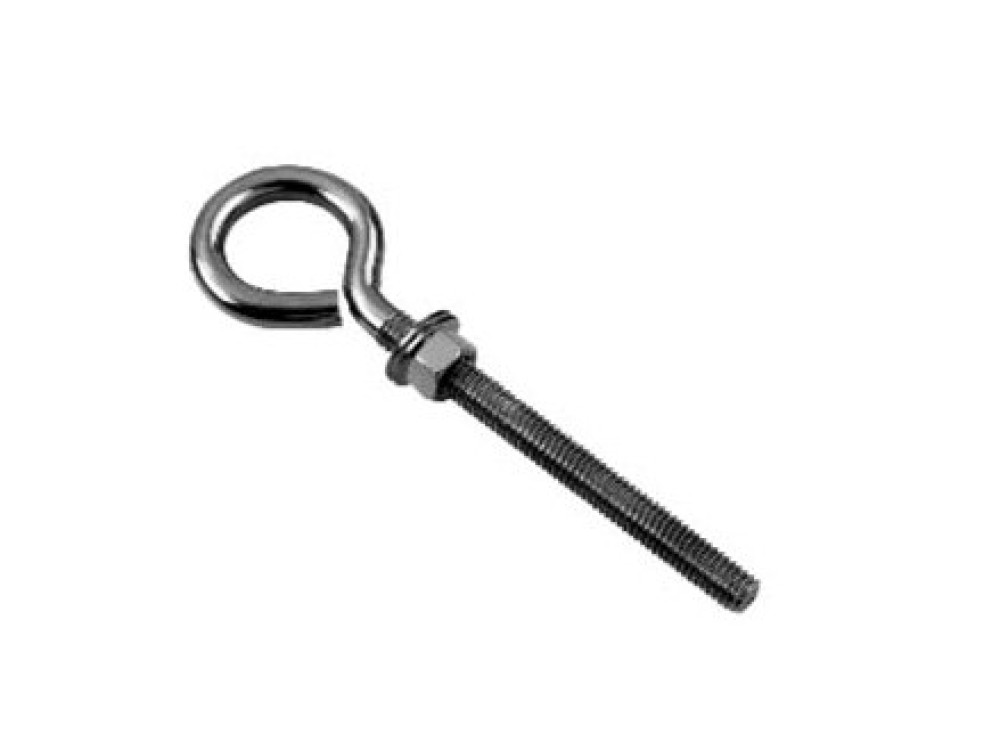

Eye Bolt (Forge), SS304 OR SS316
SIZE A mm B mm C mm SWL kgs BL kgs M6x40 M6 13 40 250...
ISO9001 Supplier
Class Certificate
Export Supply
,-SS304-OR-SS316_1000x750.jpg)
Key Highlights
Category
Eye Bolts & Nuts
Material
Stainless steel
Weight / Size
SIZE A mm B mm C mm SWL kgs BL kgs M6x40 M6 13 40 250 1000 M6x60 M6 13 6...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Eye Bolts & Nuts
Model / SKU
EYE-BOLT-FORGE-SS304-OR-SS316
Material
Stainless steel
Weight / Size
SIZE A mm B mm C mm SWL kgs BL kgs M6x40 M6 13 40 250 1000 M6x60 M6 13 60 250 1000 M6x80 M6 13 80 250 1000 M6x 100 M6 13 100 250 1000 M8x60 M8 17 60 450 1800 M8x80 M8 17 80 450 1800 M8x 100 M8 17 100 600 2400 M10x60 M10 21 60 600 2400 M10x80 M10 21 80 600 2400 M10x100 M10 21 100 875 3500 M12x80 M12 25 80 875 3500 M12x100 M12 25 100 875 3500 M12 x 120 M12 25 120 875 3500 M12x150 M12 25 150 875 3500
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
