| SIZE | A mm | B mm | C mm | SWL kgs | BL kgs |
| M6x50 | 16 | 50 | M6 | 275 | 1100 |
| M8x50 | 20 | 50 | M8 | 450 | 1800 |
| M10x50 | 25 | 50 | M10 | 650 | 2600 |
| M12x50 | 30 | 50 | M12 | 850 | 3400 |
| M16x50 | 35 | 50 | M16 | 2000 | 8000 |
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Eye Bolts & Nuts

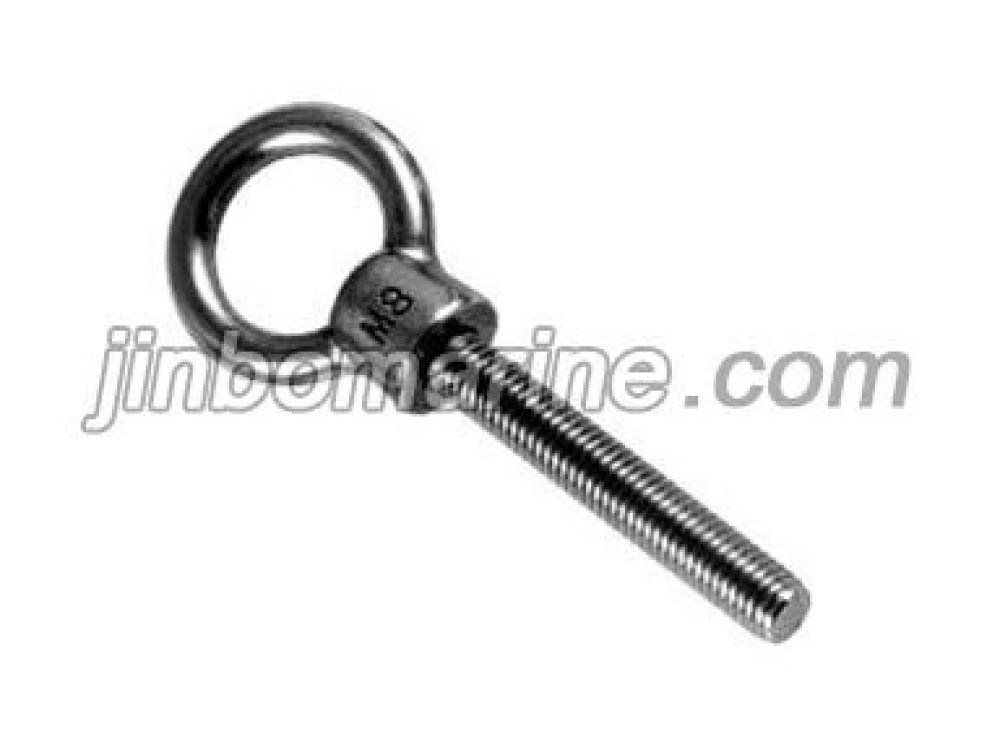

Eye Bolt, SS316(Any Length OF Screw Available ), SS304 OR SS316, CSLS01
SIZE A mm B mm C mm SWL kgs BL kgs M6x50 16 50 M6 275 ...
ISO9001 Supplier
Class Certificate
Export Supply
,-SS304-OR-SS316,-CSLS01_1000x750.jpg)
Key Highlights
Category
Eye Bolts & Nuts
Standard
EN
Material
Stainless steel
Weight / Size
SIZE A mm B mm C mm SWL kgs BL kgs M6x50 16 50 M6 275 1100 M8x50 20 50 M...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Eye Bolts & Nuts
Model / SKU
EYE-BOLT-SS316-ANY-LENGTH-OF-SCREW-AVAILABLE-SS304-OR-SS316-CSLS01
Standard
EN
Material
Stainless steel
Weight / Size
SIZE A mm B mm C mm SWL kgs BL kgs M6x50 16 50 M6 275 1100 M8x50 20 50 M8 450 1800 M10x50 25 50 M10 650 2600 M12x50 30 50 M12 850 3400 M16x50 35 50 M16 2000 8000
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
