Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Explosion-proof Lights Series

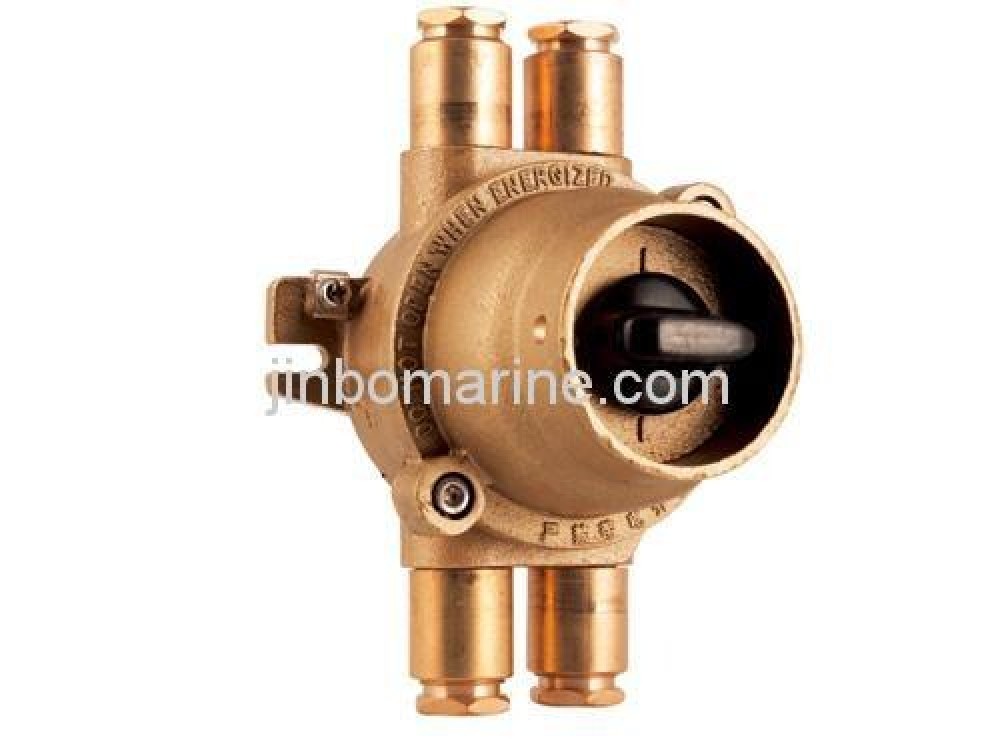

Explosion-proof Switch
Main Specification: Type dCHH202-2 dCHH202-2A dCHH202-3 dCHH202-4 Voltage ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Explosion-proof Lights Series
Material
Brass
Weight / Size
Type dCHH202-2 dCHH202-2A dCHH202-3 dCHH202-4 Voltage 380V/16A Explision...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Explosion-proof Lights Series
Model / SKU
Explosion-proof-Switch
Material
Brass
Weight / Size
Type dCHH202-2 dCHH202-2A dCHH202-3 dCHH202-4 Voltage 380V/16A Explision-Proof Mark Exde II C T6 Protection Class IP56 Material Brass Cable Diameter Dia10-12.5 Weight 2.25KGS 2.25KGS 2.27KGS 2.35KGS
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Main Specification:
| Type | dCHH202-2 | dCHH202-2A | dCHH202-3 | dCHH202-4 |
| Voltage | 380V/16A | |||
| Explision-Proof Mark | Exde II C T6 | |||
| Protection Class | IP56 | |||
| Material | Brass | |||
| Cable Diameter | Dia10-12.5 | |||
| Weight | 2.25KGS | 2.25KGS | 2.27KGS | 2.35KGS |
