Shackle

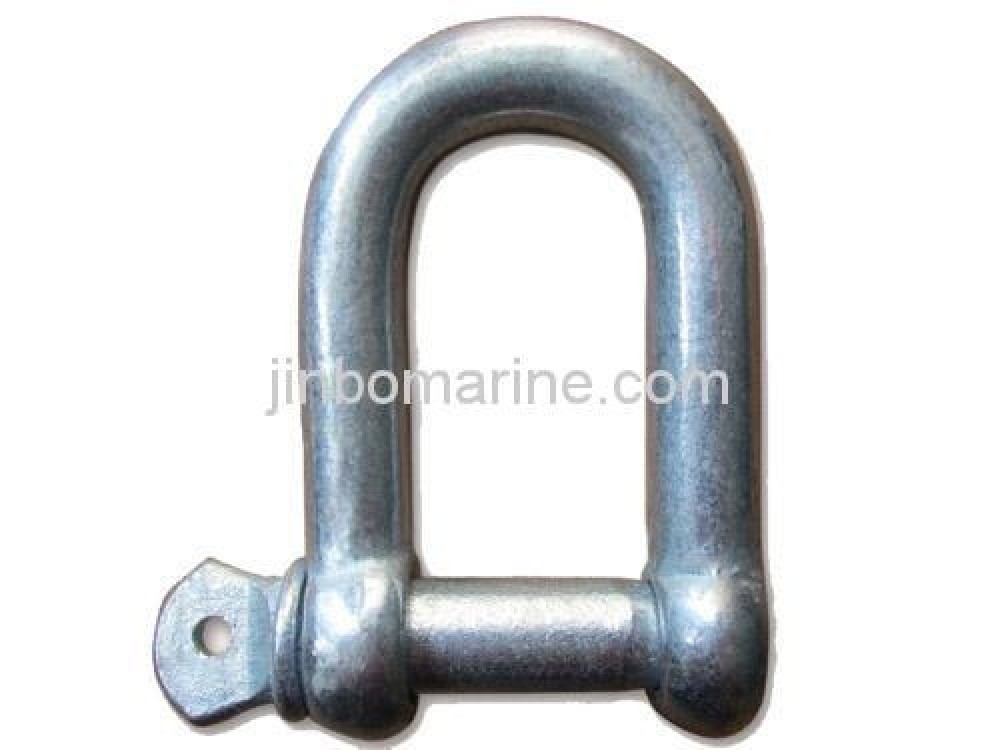

JIS Type Shackles

Similar Name JIS Type Dee Shackle JIS Type Free Forged Shackle JIS Type Straight Shackle Main Specification U type body and a lateral pin. Drop Forged Q23...

ISO9001 Supplier Class Certificate Export Supply
JIS Type Shackles

Key Highlights

Category
Shackle
Standard
JIS
Material
Q235
Weight / Size
Size Table Nominal Size B D L dl SWL m/m In m/m m/m m/m m/m Ton 4.8 3/16...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Shackle
Model / SKU
JIS-Type-Shackles
Standard
JIS
Material
Q235
Weight / Size
Size Table Nominal Size B D L dl SWL m/m In m/m m/m m/m m/m Ton 4.8 3/16 10 10 18.5 5 0.09 6 1/4 12 11 25 6.5 0.15 8 5/16 14 15 31 8.5 0.25 9 3/8 18 17 36 10 0.4 12 1/2 24 23 46 13 0.6 16 5/8 30 32 59 17 0.8 19 3/4 36 37 74 20 1 22 7/8 43 43 86 23 1.5 25 1 47 50 95 27 2 28 1 1/8 55 56 110 30 2.5 32 1 1/4 64 64 130 34 3.2 38 1 1/2 76 76 145 40 4.2 44 1 3/4 80 90 160 47 6.5 50 2 0 100 185 53 8 65 2 1/2 110 130 240 68 15 75 3 120 150 300 78 20
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

Similar Name

JIS Type Dee Shackle

JIS Type Free Forged Shackle

JIS Type Straight Shackle

Main Specification

  • U type body and a lateral pin.
  • Drop Forged
  • Q235l
  • Used in lifting or fasten cargo or machinery purpose.

Size Table

Nominal Size B D L dl SWL
m/m In m/m m/m m/m m/m Ton
4.8 3/16 10 10 18.5 5 0.09
6 1/4 12 11 25 6.5 0.15
8 5/16 14 15 31 8.5 0.25
9 3/8 18 17 36 10 0.4
12 1/2 24 23 46 13 0.6
16 5/8 30 32 59 17 0.8
19 3/4 36 37 74 20 1
22 7/8 43 43 86 23 1.5
25 1 47 50 95 27 2
28 1 1/8 55 56 110 30 2.5
32 1 1/4 64 64 130 34 3.2
38 1 1/2 76 76 145 40 4.2
44 1 3/4 80 90 160 47 6.5
50 2 0 100 185 53 8
65 2 1/2 110 130 240 68 15
75 3 120 150 300 78 20
