JIS Marine Check Valve

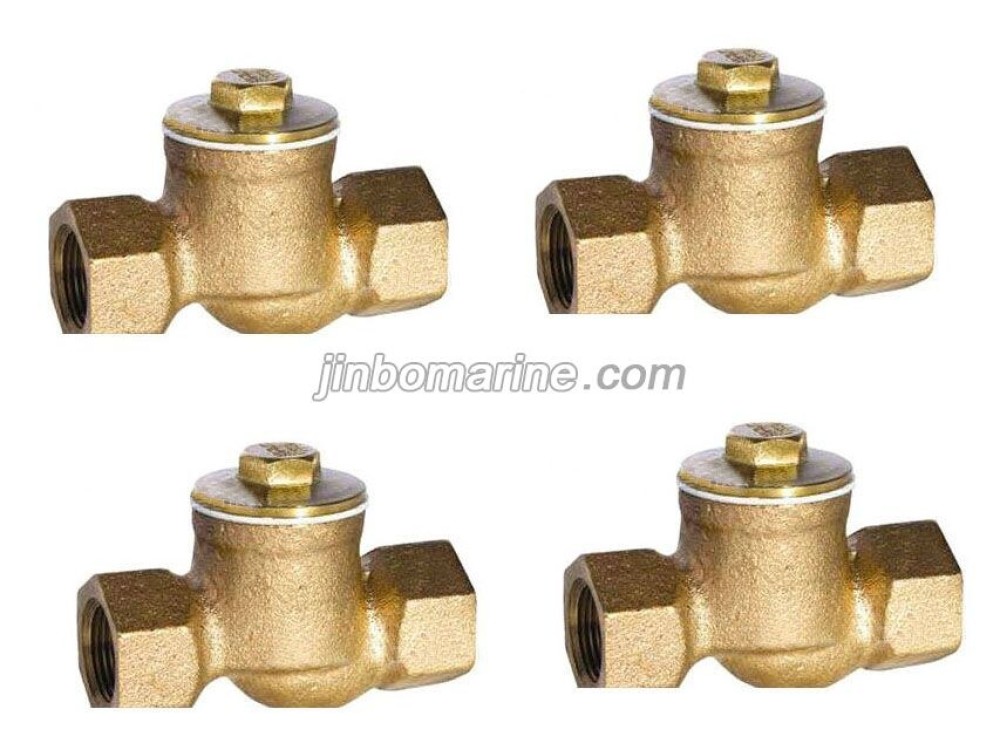

Marine Bronze Female Thread Globe Lift Check Valve CB/T310-1999

Marine Bronze Female Thread Globe Lift Check Valve is used to prevent the back flow of medium. Design Standard: CB/T310-1999 Test Standard: GB600 Nominal Pressure: 1.6Mpa Applicable Medium: sea wa...

ISO9001 Supplier Class Certificate Export Supply
Marine Bronze Female Thread Globe Lift Check Valve CB/T310-1999

Key Highlights

Category
JIS Marine Check Valve
Standard
GB
Material
Bronze
Weight / Size
Body-Bronze Cover-Bronze Disc-Bronze Main Size(mm):
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
JIS Marine Check Valve
Model / SKU
Marine-Bronze-Female-Thread-Globe-Lift-Check-Valve-CB-T310-1999
Standard
GB
Material
Bronze
Weight / Size
Body-Bronze Cover-Bronze Disc-Bronze Main Size(mm):
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
Warranty
12 Months unless specified otherwise
Origin
China

China Marine Bronze Female Thread Globe Lift Check Valve CB/T310-1999:

Marine Bronze Female Thread Globe Lift Check Valve is used to prevent the back flow of medium.

Design Standard: CB/T310-1999

Test Standard: GB600

Nominal Pressure: 1.6Mpa

Applicable Medium: sea water, fresh water, lubricating oil, fuel oil, t≤250℃ steam.

Main Parts & Material:

Body-Bronze

Cover-Bronze

Disc-Bronze

Main Size(mm):

nominal
diameter 		Structure Dimension thread joint dimension lift
m 		Weight(kg)
L H d l f s
15 84 46 G 1/2 14 3 27 5 0.25
20 95 52 G 3/4 16 3 32 6 0.6
25 110 57 G1 18 4 41 7 0.85
32 130 64 G 1-1/4 20 4 50 9 1.49
40 150 72 G 1-1/2 22 4 60 12 2.26
50 180 80 G2 24 4 70 15 3.2
