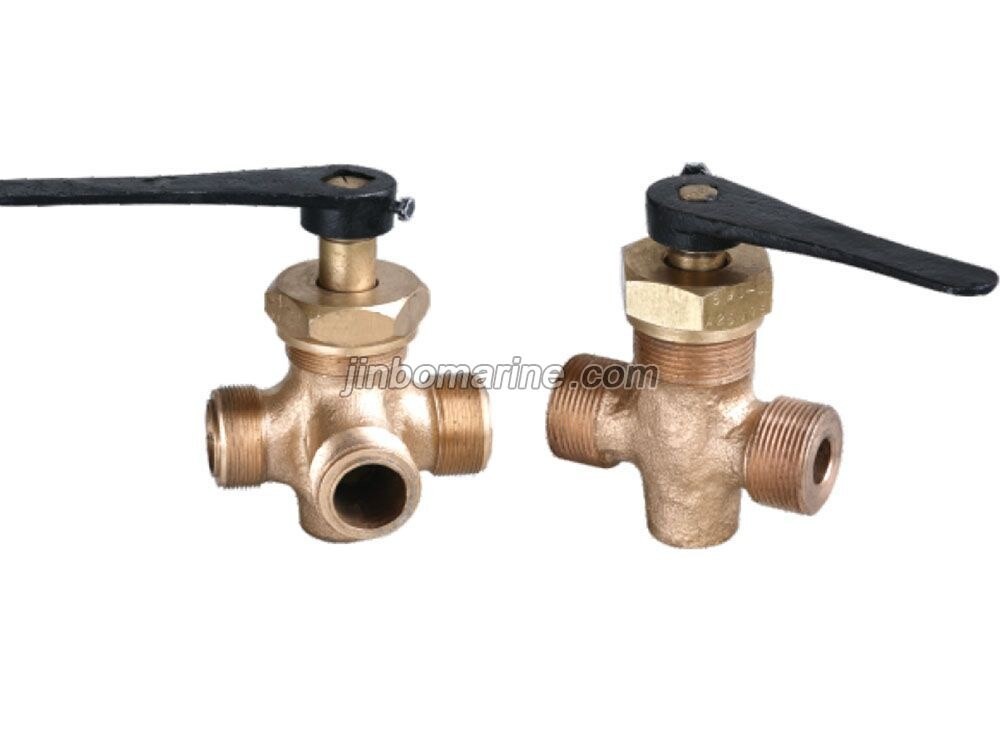

Marine Bronze Male Thread Packed Cock GB598-80

Marine Bronze Male Thread Packed Cock GB598-80 is thread type check valve. There is straight type and angle type. Type A---Two way cock Type L, Type T--Three way cock  Technical Specification: ...

ISO9001 Supplier Class Certificate Export Supply

Key HighlightsCategory
GB Marine Cock
Standard
GB
Material
Bronze
Weight / Size
GB600 Nominal Pressure(Mpa) Nominal Size(mm) Applicable Medium 0.1 32 se...
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

China Marine Bronze Male Thread Packed Cock GB598-80:

Marine Bronze Male Thread Packed Cock GB598-80 is thread type check valve. There is straight type and angle type.

Type A---Two way cock

Type L, Type T--Three way cock

Technical Specification:

Design & Manufacturing Standard: GB598-80

Test Standard: GB600

Nominal Pressure(Mpa)	Nominal Size(mm)	Applicable Medium
0.1	32	sea water,fresh water, lubication oil, fuel oil
1.6	20,25
2.5	6,10,15

Main Parts & Material:

Body---Bronze

Bonnet---Bronze

Core---Bronze

Lever---Cast Iron

Main Size List(mm):

DN (mm)	Structure Dimension			Flange				handle L0	Weight(kg)
	Structure Dimension			Flange					Weight(kg)
	L	H1	H	D	D1	D2	I		A	T	L
6	70	20	60	M22×1.5	-	-	12	100	0.42	0.48	0.49
10	78	27	72	M27×105	-	-	15	110	0.69	0.71	0.72
15	92	37	92	M36×2	-	-	16	115	1.07	1.24	1.26
20	98	40	99	M36×2	33	24	20	125	1.52	1.70	1.72
25	106	42	108	M42×2	39	29	20	140	1.9	2.22	2.24
32	126	49	120	M48×2	45	36	20	160	3.47	3.97	3.89
