GB Marine Cock

Marine Cast Iron Flange Packed Cock GB/T593-93

Marine Flange Packed Cock can be called as marine plug valve. A/AS is two way cock, L/LS, T/TS is three way cock. Design Standard: GB/T593-93 Test Standard:GB600 Flange size as per GB569 or GB2501 ...

ISO9001 Supplier Class Certificate Export Supply

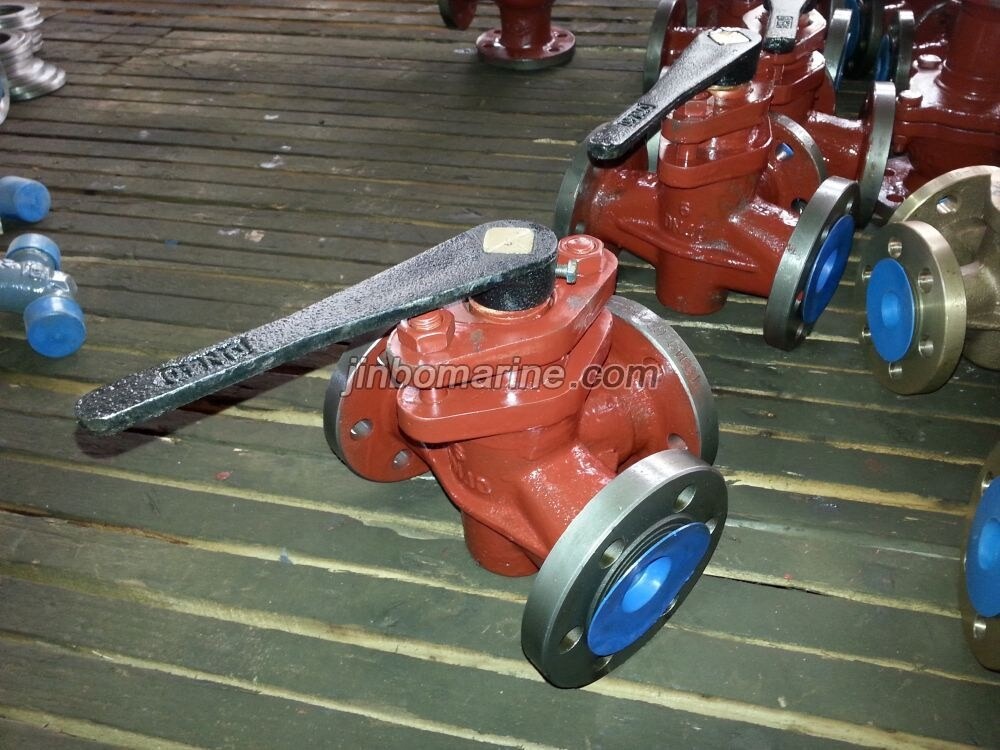

Marine Cast Iron Flange Packed Cock GB/T593-93

Key Highlights

Category
GB Marine Cock
Standard
GB
Material
Cast Iron
Weight / Size
GB/T593-93 Test Standard:GB600 Flange size as per GB569 or GB2501 Nomina...
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
GB Marine Cock
Model / SKU
Marine-Cast-Iron-Flange-Packed-Cock-GB-T593-93
Standard
GB
Material
Cast Iron
Weight / Size
GB/T593-93 Test Standard:GB600 Flange size as per GB569 or GB2501 Nominal Pressure (Mpa) Nominal Diameter (mm) Applicable Medium 0.6 20~80 sea water, fresh water,lubrication oil, fuel oil Main Material:
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
Warranty
12 Months unless specified otherwise
Origin
China

China Marine Cast Iron Flange Packed Cock GB/T593-93:

Marine Flange Packed Cock can be called as marine plug valve. A/AS is two way cock, L/LS, T/TS is three way cock.

Design Standard: GB/T593-93

Test Standard:GB600

Flange size as per GB569 or GB2501

Nominal Pressure (Mpa) Nominal Diameter (mm) Applicable Medium
0.6 20~80 sea water, fresh water,lubrication oil, fuel oil

Main Material:

Body-Cast Iron (HT200)

Core-Bronze (ZCuSn10Zn2 or ZCuSn5Pb5Zn5)

Main Size List(mm):

Type A,L,T:

DN (mm) Structure Dimension Thickness δ Flange Bolt handle L0 Weight(kg)
L H H1 D D1 D2 d0 b n Th Type A Type L Type T
20 145 141 42 7 95 68 48 13 14 4 M12 125 3.01 3.85 3.79
25 155 151 43 7 105 73 56 13 14 4 M12 140 3.84 4.90 4.80
62 165 170 50 7 115 83 64 15 15 6 M14 160 4.70 5.70 5.60
40 190 193 57 7 125 93 74 15 16 6 M14 180 6.60 8.40 8.30
50 205 245 67 7 135 103 84 15 16 6 M14 230 10.20 12.00 11.80
65 225 266 81 8 155 123 104 15 15 6 M14 250 13.40 16.70 16.30
80 245 328 100 8 170 138 118 15 15 8 M14 320 19.70 21.80 21.30

Type AS,LS,TS:

DN (mm) Structure Dimension Thickness δ Flange Bolt handle L0 Weight(kg)
L H H1 D D1 D2 d0 b n Th Type AS Type LS Type TS
20 150 141 42 7 90 65 50 11 14 4 M10 120 3.1 3.9 3.8
25 160 151 43 7 100 75 60 11 14 4 M10 140 4.0 4.9 4.8
32 180 170 50 7 120 90 70 14 16 4 M12 160 5.0 5.8 5.7
40 200 193 57 7 130 100 80 14 16 4 M12 180 7.3 9.1 9.0
50 230 245 67 7 140 110 90 14 16 4 M12 230 10.4 12.4 12.2
65 290 286 81 8 160 130 110 14 16 4 M12 250 14.4 17.7 17.3
80 310 328 100 8 190 150 128 18 16 4 M16 320 20.8 23.9 23.4
