Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Hanger And Elastic Support

Metal Spring Hanger

Metal Spring Hanger Main Specifications Type Dimension(mm) Mass(kg) A Type B Type L ...

ISO9001 Supplier Class Certificate Export Supply
Metal Spring Hanger

Key Highlights

Category
Hanger And Elastic Support
Standard
EN
Weight / Size
Metal Spring Hanger Main Specifications Type Dimension(mm) Mass(kg) A Ty...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Hanger And Elastic Support
Model / SKU
Metal-Spring-Hanger
Standard
EN
Weight / Size
Metal Spring Hanger Main Specifications Type Dimension(mm) Mass(kg) A Type B Type L L1 D A Type B Type A1 B1 220 40 M12 2.0 1.8 A2 B2 230 40 M12 2.1 1.9 A3 B3 240 40 M12 2.2 2.0 A4 B4 245 45 M16 4.6 4.3 A5 B5 295 45 M16 5.4 5.1 B3 Metal Spring Hanger
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

Metal Spring Hanger Main Specifications

Type Dimension(mm) Mass(kg)
A Type B Type L L1 D A Type B Type
A1 B1 220 40 M12 2.0 1.8
A2 B2 230 40 M12 2.1 1.9
A3 B3 240 40 M12 2.2 2.0
A4 B4 245 45 M16 4.6 4.3
A5 B5 295 45 M16 5.4 5.1

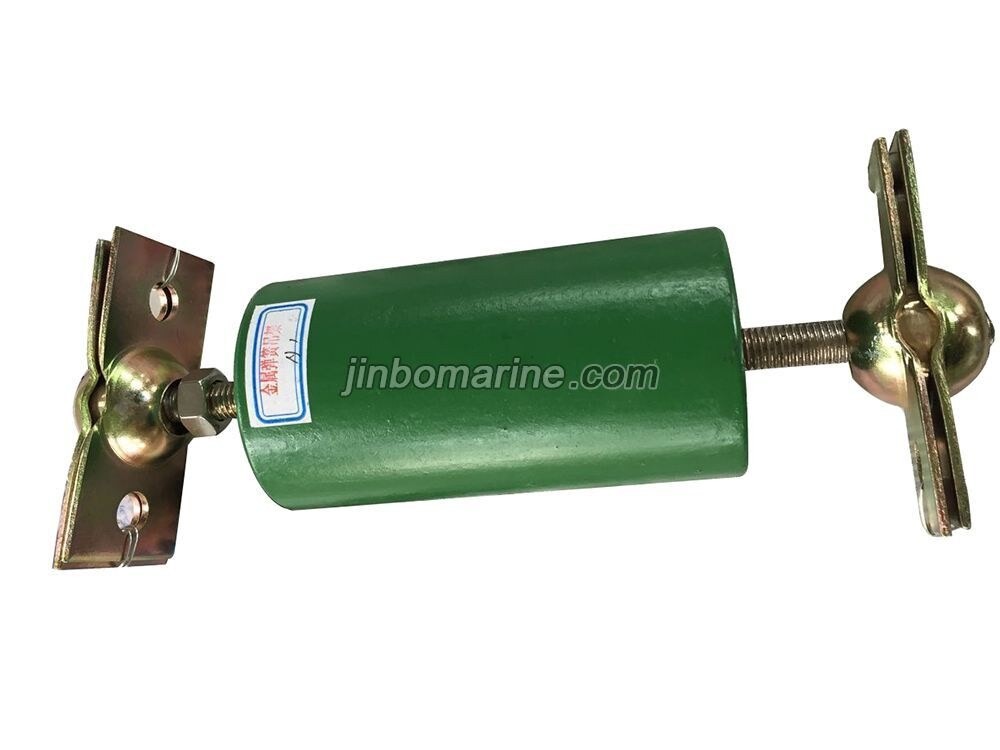

B3 Metal Spring Hanger
