RDLM-02-EP Electric-Pneumatic Type Level Gauge with Draft Gauging System
Working principle
The operating principle is basically same as air-purge type level gauge and convert pneumatic
Pressure to 4~20mAthrough electric indicator and E/P converter. The 4~20mA signal is sent to
Automation...
ISO9001 SupplierClass CertificateExport Supply
Key Highlights
Category
RDLM Series Level Monitoring and Alarm System
Standard
DIN
Material
6X1, 8X1, 10X1 seamless steel pipe Power consumption:
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
6X1, 8X1, 10X1 seamless steel pipe Power consumption:
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China

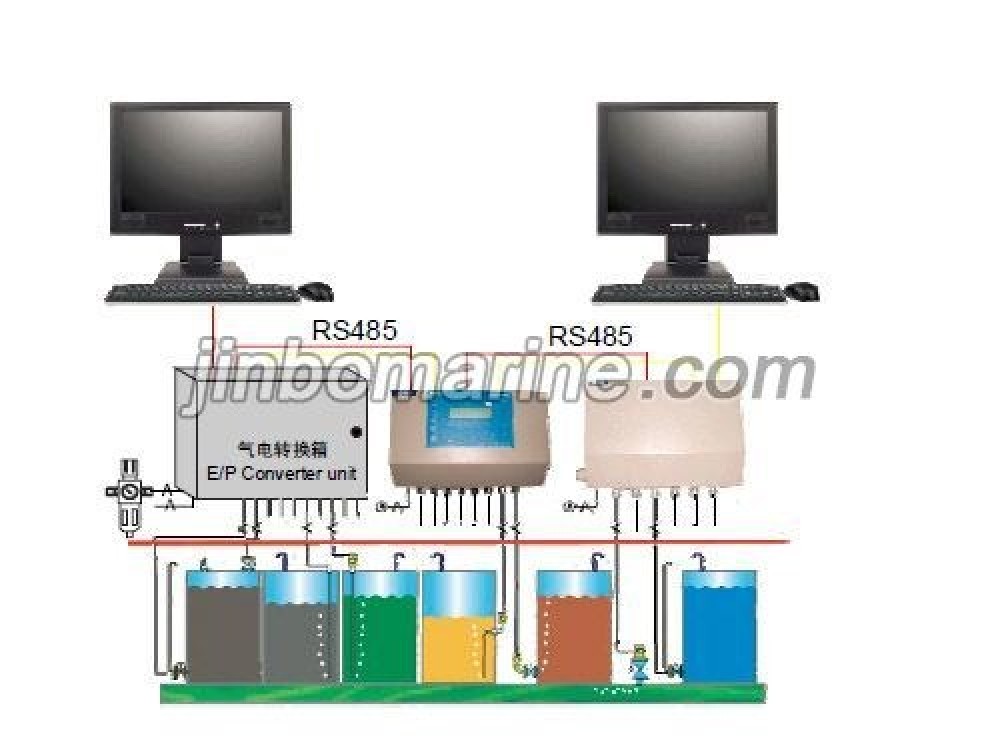

Working principle
The operating principle is basically same as air-purge type level gauge and convert pneumatic Pressure to 4~20mAthrough electric indicator and E/P converter. The 4~20mA signal is sent to Automation system, where the calculations for levels or drafts are done.
Tech. Spec.
Power supply: AC220V/50Hz, AC110V/60Hz Sounding pipe: 6X1, 8X1, 10X1 seamless steel pipe Power consumption: 5W/point Signal pipe: 6(or 8) X1 copper pipe Air source pressure: 0.4 0.7MPa Measurement range: 0 20m Air consumption: 10L/channel System accuracy: 1%FS Blind zone: 100mm Working pressure: 0.3MPa Ambient temperature: 0 +60degree Output signal: 4~20mA, Rs485 Type approval: CCS, GL, NK
Characteristic
Advanced technology, self-checking for sensor and system RS485 connect with PC and show various data with visual pattern E/P converter is RDLY Pressure transmitter which is high accuracy and stable performance High/ low level alarm and ultimate high/low alarm, with audio-visual alarm Revise the fault of measured specific gravity Has flush sounding pipe function
