Marine & Offshore Equipment Datasheet
Product Datasheet

Hook

Ramshorn Hooks DIN15402

Ramshorn Hooks are popularly used in the marine lifting industry, specially for heavy loadings. Two hooks design for the good load distribution, prevents lfting sling damage and chocking at the hooks. Forged ...

ISO9001 Supplier Class Certificate Export Supply

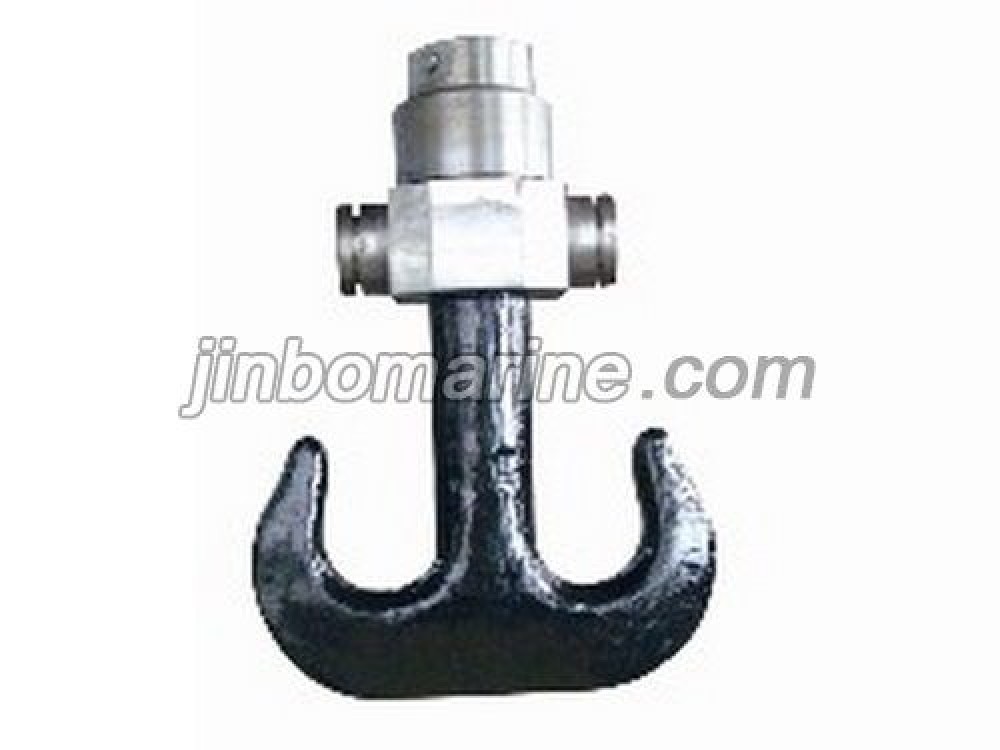

Ramshorn Hooks DIN15402

Key Highlights

Category
Hook
Standard
DIN
Material
High Tensile Steel
Weight / Size
SWL Size(mm) Weight(kgs) B D d d1 d0 Type A Type B JB4801 16t 460 115 95...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Hook
Model / SKU
Ramshorn-Hooks-DIN15402
Standard
DIN
Material
High Tensile Steel
Weight / Size
SWL Size(mm) Weight(kgs) B D d d1 d0 Type A Type B JB4801 16t 460 115 95 85 T80*10 41 55 JB4802 20t 505 125 110 100 T90*12 80 78 JB4803 25t 590 145 125 100 T100*12 90 112 JB4804 32t 645 160 135 120 T110*12 120 156 JB4805 40t 740 180 160 140 T120*16 159 200 JB4806 50t 810 200 170 150 T140*10 228 255 JB4807 80t 980 250 200 180 T170*16 400 472 JB4808 100t 1100 280 220 200 T180*20 580 620 JB4809 125t 1390 300 230 200 T200*20 1218 -- JB4810 160t 1490 350 240 220 T220*20 1600 -- JB4811 200t 1510 350 260 240 T240*24 2240 -- JB4812 250t 1680 400 280 260 T260*24 2980 --
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China Ramshorn Hooks DIN15402:

Ramshorn Hooks are popularly used in the marine lifting industry, specially for heavy loadings.

Two hooks design for the good load distribution, prevents lfting sling damage and chocking at the hooks.

Forged from high quality steel, our hooks can be supplied with safety catches if required and shank lengths can be forged to your particular specification to allow for machining requirements. Our hooks can be supplied as a forging only or we can machine them to your exact requirements. We can also manufacture the full assemblies complete with nut and collar.

Ramshorn Hooks Specifiation

Sr. No. SWL Size(mm) Weight(kgs)
B D d d1 d0 Type A Type B
JB4801 16t 460 115 95 85 T80*10 41 55
JB4802 20t 505 125 110 100 T90*12 80 78
JB4803 25t 590 145 125 100 T100*12 90 112
JB4804 32t 645 160 135 120 T110*12 120 156
JB4805 40t 740 180 160 140 T120*16 159 200
JB4806 50t 810 200 170 150 T140*10 228 255
JB4807 80t 980 250 200 180 T170*16 400 472
JB4808 100t 1100 280 220 200 T180*20 580 620
JB4809 125t 1390 300 230 200 T200*20 1218 --
JB4810 160t 1490 350 240 220 T220*20 1600 --
JB4811 200t 1510 350 260 240 T240*24 2240 --
JB4812 250t 1680 400 280 260 T260*24 2980 --
