SBL150 Model Semi-Auto Filter

SBL150 Model Semi-Auto Filter  The filter model indicates as follow: SBL→Double-cylinder Semi-suto Filter 200→Caliber 200mm SBL150 Model Semi-Auto Filter Structure Diagram SBL15...

ISO9001 Supplier Class Certificate Export Supply
SBL150 Model Semi-Auto Filter

Key Highlights

Category
Filter
Standard
EN
Weight / Size
SBL→Double-cylinder Semi-suto Filter 200→Caliber 200mm SBL150 Model Semi...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Filter
Model / SKU
SBL150-Model-Semi-Auto-Filter
Standard
EN
Weight / Size
SBL→Double-cylinder Semi-suto Filter 200→Caliber 200mm SBL150 Model Semi-Auto Filter Structure Diagram SBL150 Model Semi-Auto Filter Technical Parameters Model Caliber DN Flow(reference) Filter Precision mesh/inch Work Temperature Work Pressure(MPa) H D D1 D2 n-d Weight（kg) SBL150 150 100-190 40-400 ≤85 ≤1 1060 285 240 212 8-22 680-1000 SBL200 200 110-300 40-400 ≤85 ≤1 1100 340 295 268 8-22 710-1100
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

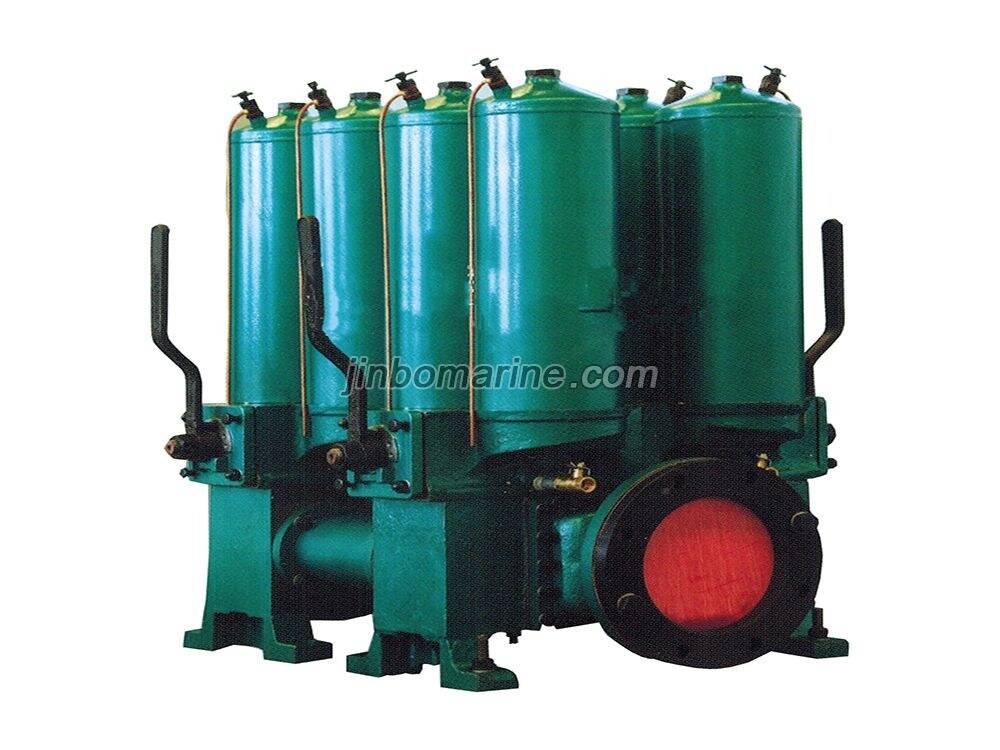

SBL150 Model Semi-Auto Filter

The filter model indicates as follow:
SBL→Double-cylinder Semi-suto Filter
200→Caliber 200mm

SBL150 Model Semi-Auto Filter Structure Diagram



SBL150 Model Semi-Auto Filter Technical Parameters

Model Caliber DN Flow(reference) Filter Precision mesh/inch Work Temperature Work Pressure(MPa) H D D1 D2 n-d Weight（kg)
SBL150 150 100-190 40-400 ≤85 ≤1 1060 285 240 212 8-22 680-1000
SBL200 200 110-300 40-400 ≤85 ≤1 1100 340 295 268 8-22 710-1100
