Devil's Claws consists of Fork Hook, Shackle, End Link, Common Link, Open Type Turnbuckle and shackle and eye plate
1. Fork Hook
2. Shackle
3. End Link
4. Common Link
5. Open Type Turnbuckle and shackle
6. Eye plate
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Chain Stopper

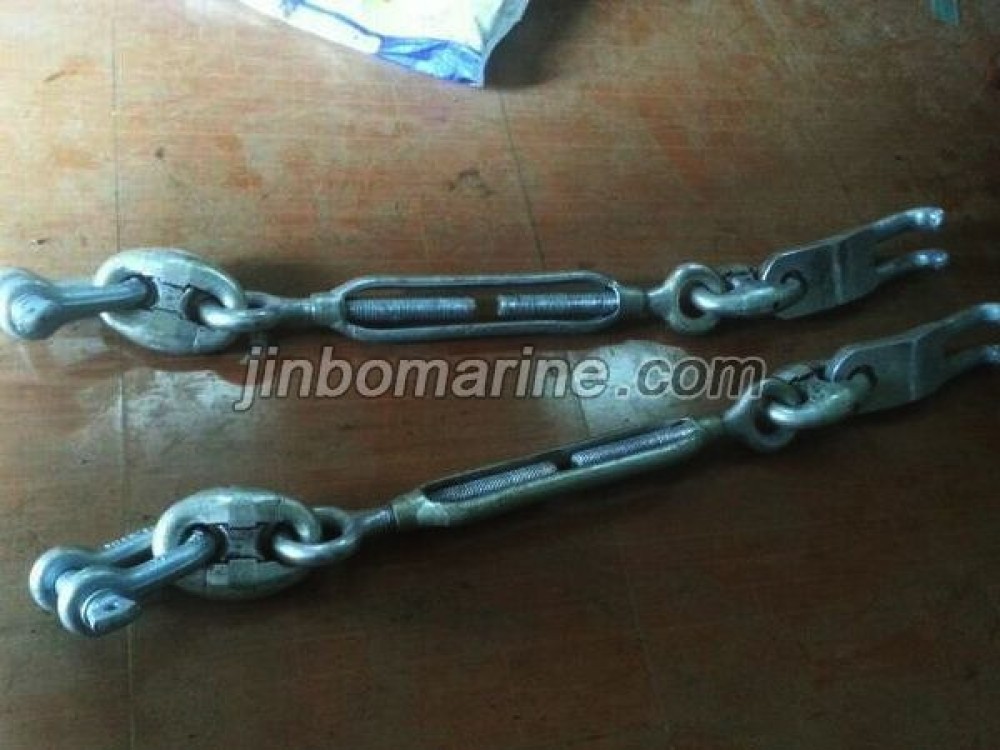

Ship Devil's Claw Chain Stopper Assemblies
Devil's Claws Chain Stopper Structure Devil's Claws consists of Fork Hook, Shackle, End Link, Common Link, Open Type Turnbuckle and shackle and eye plate 1. Fork Hook 2. Shackle ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Chain Stopper
Standard
EN
Material
Steel
Weight / Size
Eye plate Devil's Claws Size(mm) Anchor Chain Diameter SWL(KN) Fork Hook...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Chain Stopper
Model / SKU
Ship-Devil-s-Claw-Chain-Stopper-Assemblies
Standard
EN
Material
Steel
Weight / Size
Eye plate Devil's Claws Size(mm) Anchor Chain Diameter SWL(KN) Fork Hook Chain Link Turnbuckle Eype Plate Weight(kgs) 14-16 5.5 1 12.5 KOUD12 F1.0 2.00 17.5-20.5 9.3 2 12.5 KOUD14 F1.6 3.10 22-24 12.5 3 12.5 KOUD16 F2.0 4.80 26-28 17 4 14 KOUD18 F2.5 6.10 30-32 22 5 14 KOUD20 F3.0 7.80 34-36 28 6 16 KOUD22 F4.0 10.80 38-40 35 7 17.5 KOUD24 F5.0 14.60 32-44 42 8 20.5 KOUD27 F6.0 22.50 46-48 49 9 22 KOUH30 F6.0 22.50 50-52 58 10 24 KOUH36 F8.0 34.60 54-56 67 11 24 KOUH36 F10.0 52.30 58-60 77 12 26 KOUH36 F10.0 52.30 62-64 88 13 28 KOUH39 F12.0 78.00 66-68 100 14 32 KOUH42 F12.0 78.00
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Devil's Claws Chain Stopper Structure
Devil's Claws Size(mm)
| Anchor Chain Diameter | SWL(KN) | Fork Hook | Chain Link | Turnbuckle | Eype Plate | Weight(kgs) |
| 14-16 | 5.5 | 1 | 12.5 | KOUD12 | F1.0 | 2.00 |
| 17.5-20.5 | 9.3 | 2 | 12.5 | KOUD14 | F1.6 | 3.10 |
| 22-24 | 12.5 | 3 | 12.5 | KOUD16 | F2.0 | 4.80 |
| 26-28 | 17 | 4 | 14 | KOUD18 | F2.5 | 6.10 |
| 30-32 | 22 | 5 | 14 | KOUD20 | F3.0 | 7.80 |
| 34-36 | 28 | 6 | 16 | KOUD22 | F4.0 | 10.80 |
| 38-40 | 35 | 7 | 17.5 | KOUD24 | F5.0 | 14.60 |
| 32-44 | 42 | 8 | 20.5 | KOUD27 | F6.0 | 22.50 |
| 46-48 | 49 | 9 | 22 | KOUH30 | F6.0 | 22.50 |
| 50-52 | 58 | 10 | 24 | KOUH36 | F8.0 | 34.60 |
| 54-56 | 67 | 11 | 24 | KOUH36 | F10.0 | 52.30 |
| 58-60 | 77 | 12 | 26 | KOUH36 | F10.0 | 52.30 |
| 62-64 | 88 | 13 | 28 | KOUH39 | F12.0 | 78.00 |
| 66-68 | 100 | 14 | 32 | KOUH42 | F12.0 | 78.00 |
