Marine LED Light

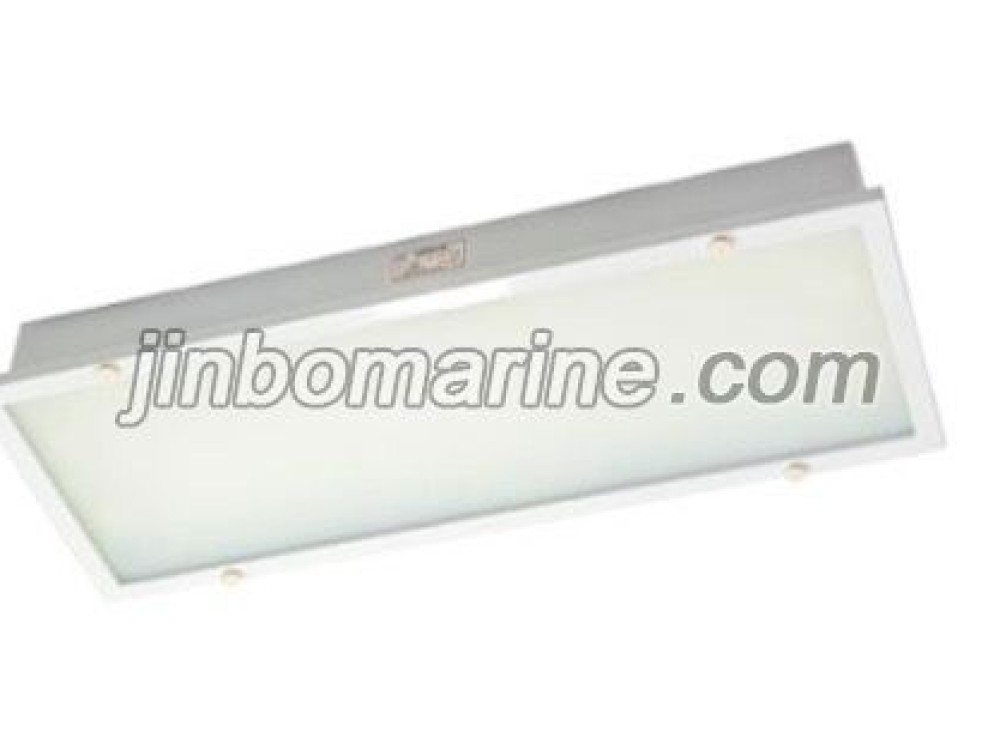

TPYA10-2ML LED Ceiling Light

Application Applied to military ship and ship illumination of dry cabin, such as the accommodation, passage way,retiring room and so on. Product Feature 1. Shell adopts good quality steel plate. 2...

ISO9001 Supplier Class Certificate Export Supply

Key HighlightsCategory
Marine LED Light
Standard
GB
Material
Shell adopts good quality steel plate.
Weight / Size
Specification Type Voltage Power Replacement Liminous Flux CT Material S...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Application

Applied to military ship and ship illumination of dry cabin, such as the accommodation, passage way,retiring room and so on.

Product Feature

1. Shell adopts good quality steel plate.

2. Lampshade is made of milky white organic glass.

3. LED Light Source, light soft, no glare, supper high uniformity and visual comfort, color>=80%, light rate>70%, life time 30000h,energy saving 50%, new green environmental product, easy installation, general G12 lamp holder.

4. Environment temperature I s -20-45degree within the scope of work.

5. Protection class is IP22.

Standard

1. Chapter 3, Part 4 of Classification Society Rules for Classification of Sea-going Steel Ships 2015 and its Amendments;

2. GB7000.1-2015，Luminaires –Part1:General requirements and tests.

Specification

Type	Voltage	Power	Replacement	Liminous Flux	CT	Material	Size	Weight
TPYA10-2ML	110/220V 50/60Hz	<=2x10W	2x18W Fluorescent Lamp	1900lm	3000-6500K	Steel/SS	636x600x674	4.6kg
TPYA20-2ML	110/220V 50/60Hz	<=2x20W	2x36W Fluorescent Lamp	4000lm	3000-6500K	steel	1245x1200x1280	6.4kg
