Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Marine Fin Stabilizer

Type JQB Mini Fin Stabilizer

Type mini fin stabilizer is composed of two Actuators, two Fins, one Hydraulic Power Unit, one Operation Panel and one Control Box, etc. Features Mini fin stabilizer has the features of small fin area, light ...

ISO9001 Supplier Class Certificate Export Supply
Type JQB Mini Fin Stabilizer

Key Highlights

Category
Marine Fin Stabilizer
Standard
DIN
Material
Application  This type of fin stabilizer is suitable for traffic boat an...
Weight / Size
Features Mini fin stabilizer has the features of small fin area, light i...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Marine Fin Stabilizer
Model / SKU
Type-JQB-Mini-Fin-Stabilizer
Standard
DIN
Material
Application  This type of fin stabilizer is suitable for traffic boat and yacht with displacement not more than 90 tons, including glass steel yacht or any yachts of advanced composites Type JQB Mini Fin Stabilizer Parameter Specification Model Fin Area(m2) Displacement(t) State/H(1/3) (m) Power(Kw) Weight(Kg) JQB-0.25-60 0.25 ＜50 3/1.0 3 300 JQB-0.35-60 0.35 50-70 3/1.0 4 330 JQB-0.45-60 0.45 70-90 4/1.5 5.5 390
Weight / Size
Features Mini fin stabilizer has the features of small fin area, light in weight, good reliability, low noise, good performance and low prices etc.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

China Type JQB Mini Fin Stabilizer:

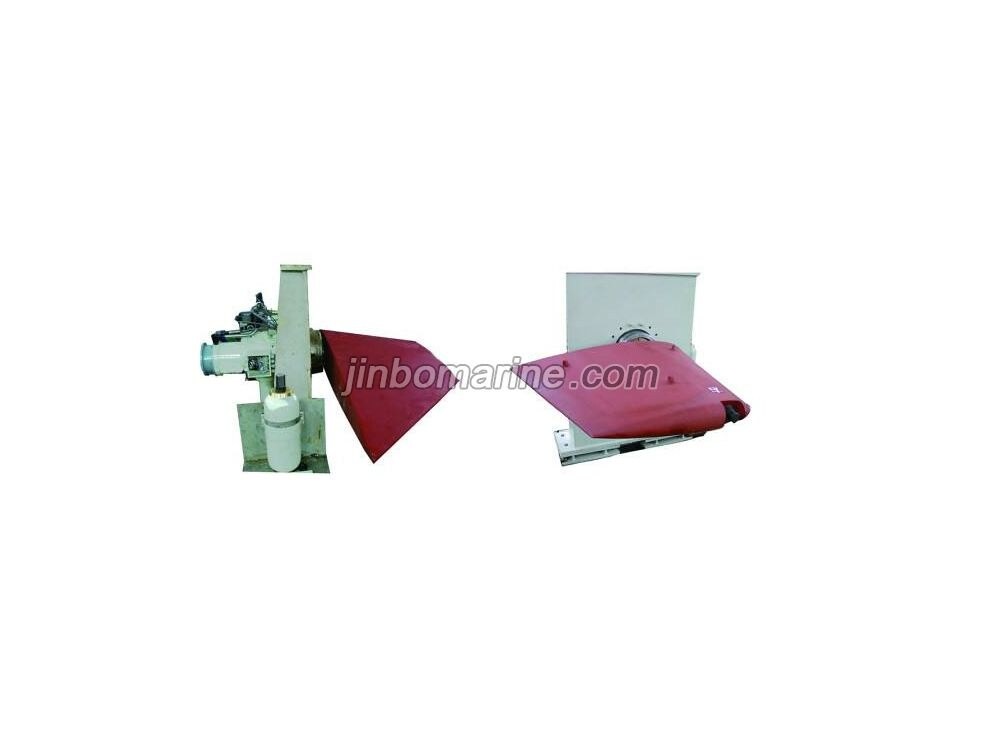

Type mini fin stabilizer is composed of two Actuators, two Fins, one Hydraulic Power Unit, one Operation Panel and one Control Box, etc.

Features

Mini fin stabilizer has the features of small fin area, light in weight, good reliability, low noise, good performance and low prices etc.

The mini fin stability is specifically designed with one HPU for the two fins, making the equipment more compact and reliable.

Application

This type of fin stabilizer is suitable for traffic boat and yacht with displacement not more than 90 tons, including glass steel yacht or any yachts of advanced composites

Type JQB Mini Fin Stabilizer Parameter Specification

Model Fin Area(m2) Displacement(t) State/H(1/3) (m) Power(Kw) Weight(Kg)
JQB-0.25-60 0.25 ＜50 3/1.0 3 300
JQB-0.35-60 0.35 50-70 3/1.0 4 330
JQB-0.45-60 0.45 70-90 4/1.5 5.5 390
