The JQB retractable fin stabilizer is composed of Actuators, Fins, Fin boxes, Hydraulic Units, and Electrical Units, etc. The Fins are installed on the port and starboard bilge of the ship respectively.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Fin Stabilizer

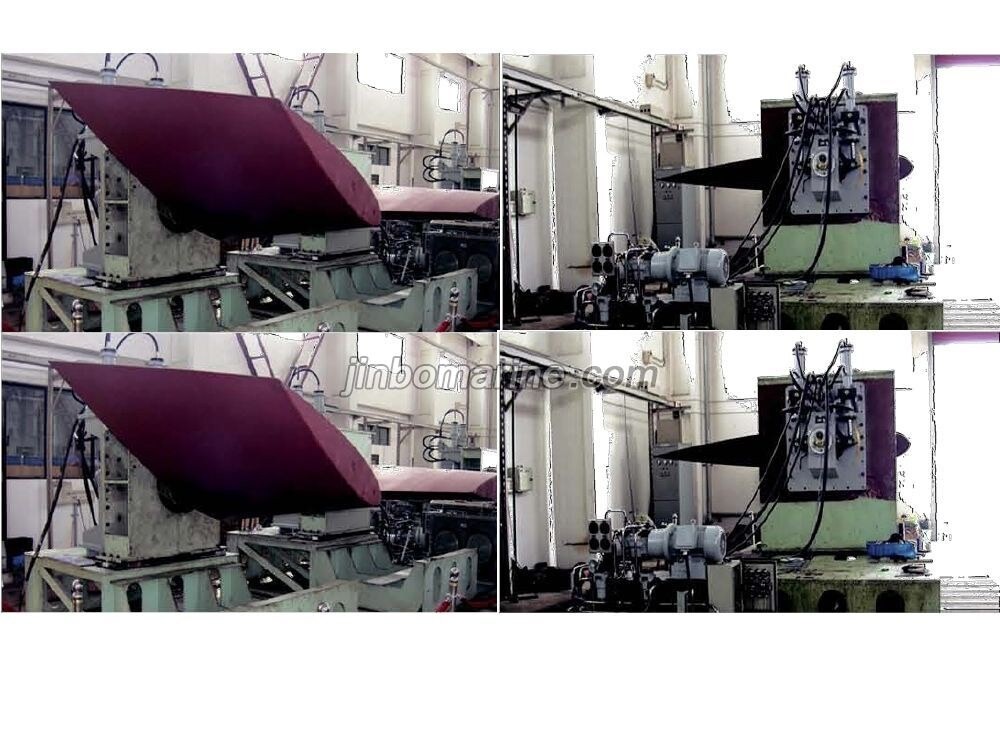

Type JQB Non-retractable Fin Stabilizer
The JQB retractable fin stabilizer is composed of Actuators, Fins, Fin boxes, Hydraulic Units, and Electrical Units, etc. The Fins are installed on the port and starboard bilge of the ship respectively. ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Fin Stabilizer
Standard
EN
Weight / Size
Application Type JQB stabilizer is specifically designed for middle and ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Fin Stabilizer
Model / SKU
Type-JQB-Non-retractable-Fin-Stabilizer
Standard
EN
Weight / Size
Application Type JQB stabilizer is specifically designed for middle and small size vessels with thin bilge.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China Type JQB Non-retractable Fin Stabilizer:
Characteristic
Relative simplicity, Good reliability and small occupy.
The fins will be locked as zero angle automatically when stopped.
Trapezoid fin with great hydrodynamic performance features.
Suitable for variety of complex sea states with high frequency response.
Application
Type JQB stabilizer is specifically designed for middle and small size vessels with thin bilge.
Type JQB Non-retractable Fin Stabilizer Parameter Specification
| Model | Fin Area(m2) | Displacement(t) | State/H(1/3) (m) | Power(Kw),one pair | Weight(Ton),one pair |
| JQB-1-130 | 1 | 100-400 | 4/2.0 | 11 | 1.9 |
| JQB-2-170 | 1.6 | 400-800 | 5/2.5 | 30 | 4.1 |
| JQB-3-200 | 2.5 | 800-1000 | 5/3.5 | 30 | 5.8 |
| JQB-4-240 | 3.5 | 1000-1900 | 5/3.5 | 44 | 9.4 |
| JQB-5-280 | 4.5 | 1900-2800 | 6/4.0 | 44 | 13.1 |
| JQB-6-340 | 5.5 | 2800-3800 | 6/4.5 | 60 | 18.3 |
| JQB-7-380 | 6.5 | 3800-4500 | 6/5.0 | 60 | 19.5 |
