Type JQF retractable fin stabilizer is composed of Actuators, Fins, and Fin Boxes, Hydraulic Power Units, And Electrical Units, etc. The fins are installed on the port and starboard of bilge of the ship respectively. When turn the power on, the fins are extender out from the fin boxes, and when stopped. It retracted back into the fin boxes, JQF type are housed forward into the fin boxes.
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet
Marine Fin Stabilizer

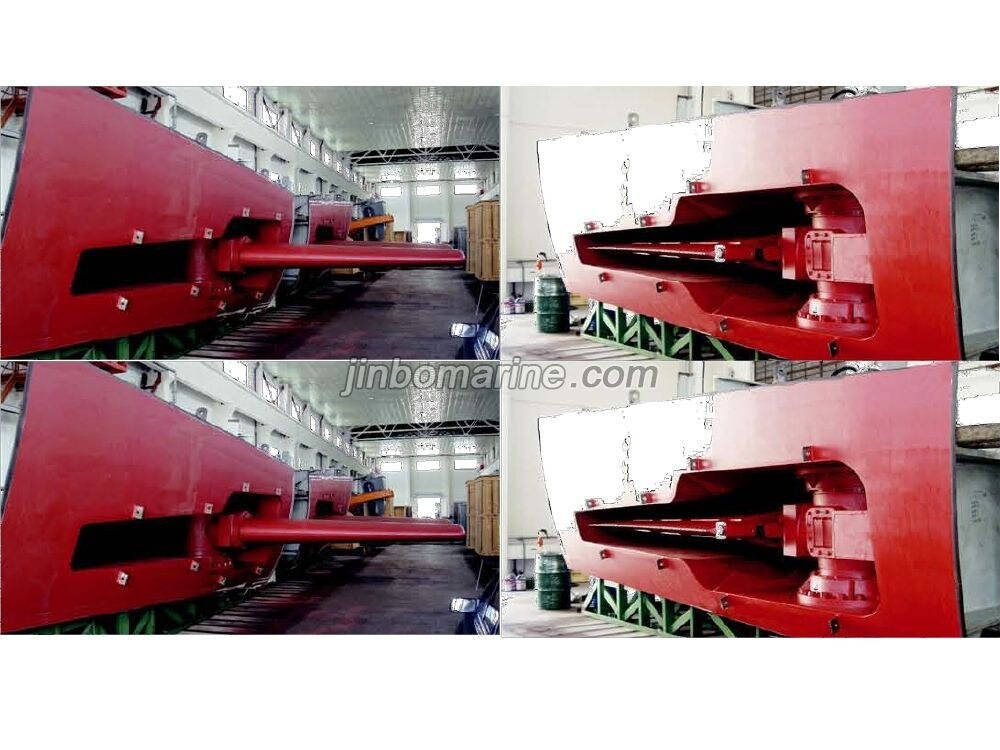

Type JQF Forward Retractable Fin Stabilizer
Type JQF retractable fin stabilizer is composed of Actuators, Fins, and Fin Boxes, Hydraulic Power Units, And Electrical Units, etc. The fins are installed on the port and starboard of bilge of the ship respectively. ...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Marine Fin Stabilizer
Standard
EN
Weight / Size
Application Type JQF is specifically designed for middle and large size ...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Marine Fin Stabilizer
Model / SKU
Type-JQF-Forward-Retractable-Fin-Stabilizer
Standard
EN
Weight / Size
Application Type JQF is specifically designed for middle and large size ships which with fat bilge.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
China Type JQF Forward Retractable Fin Stabilizer:
Features
The actuator and the hull are in one module, minimizing the workload of installation in the shipyard.
Simple structure and high reliability.
Due to its high lift coefficient, the flap-tail fin can produce 50% more lift force than non-retractable fin with the same area. The fish-tail and flap-tail fins can produce 20% more lift force than the fish-tail fins.
Application
Type JQF is specifically designed for middle and large size ships which with fat bilge.
Type JQF Forward Retractable Fin Stabilizer Parameter Specification
| Model | Fin Area(m2) | Displacement(t) | State/H(1/3) (m) | Power(Kw),one pair | Weight(Ton),one pair |
| JQF-2-240 | 2 | 1800 | 5/3.5 | 37 | 18 |
| JQF-3-380 | 3 | 1800-3000 | 6/4.0 | 37 | 24.6 |
| JQF-4-340 | 4 | 3000-4000 | 6/4.0 | 60 | 34.2 |
| JQF-5-400 | 5 | 4000-5000 | 6/5.0 | 60 | 47.9 |
| JQF-6-460 | 6 | 5500-10000 | 6/5.0 | 60 | 62 |
| JQF-8-530 | 8 | 10000-25000 | 6/＜6 | 90 | 87.5 |
