Back to product Download PDF
Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

Clear View Screen

WS2 Marine Clear View Screen

WS2 Marine Clear View Screen may be mounted above viewing window in pilothouse. It is driven by a motor mounted on the centor of main frame to directly drive the view screen to rotate at high seep. ...

ISO9001 Supplier Class Certificate Export Supply
WS2 Marine Clear View Screen

Key Highlights

Category
Clear View Screen
Standard
EN
Weight / Size
Type Extenal Size D(mm) Glass Size A(mm) Weight (kg) WS2-300CR 370 Dia30...
Certificate
CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Clear View Screen
Model / SKU
WS2-Marine-Clear-View-Screen
Standard
EN
Weight / Size
Type Extenal Size D(mm) Glass Size A(mm) Weight (kg) WS2-300CR 370 Dia300 10 WS2-350CR 420 Dia350 12 WS2-300CR Marine Clear View Screen
Certificate
CCS
Warranty
12 Months unless specified otherwise
Origin
China

China WS2 Marine Clear View Screen:

WS2 Marine Clear View Screen may be mounted above viewing window in pilothouse. It is driven by a motor mounted on the centor of main frame to directly drive the view screen to rotate at high seep.

Type Extenal Size D(mm) Glass Size A(mm) Weight (kg)
WS2-300CR 370 Dia300 10
WS2-350CR 420 Dia350 12

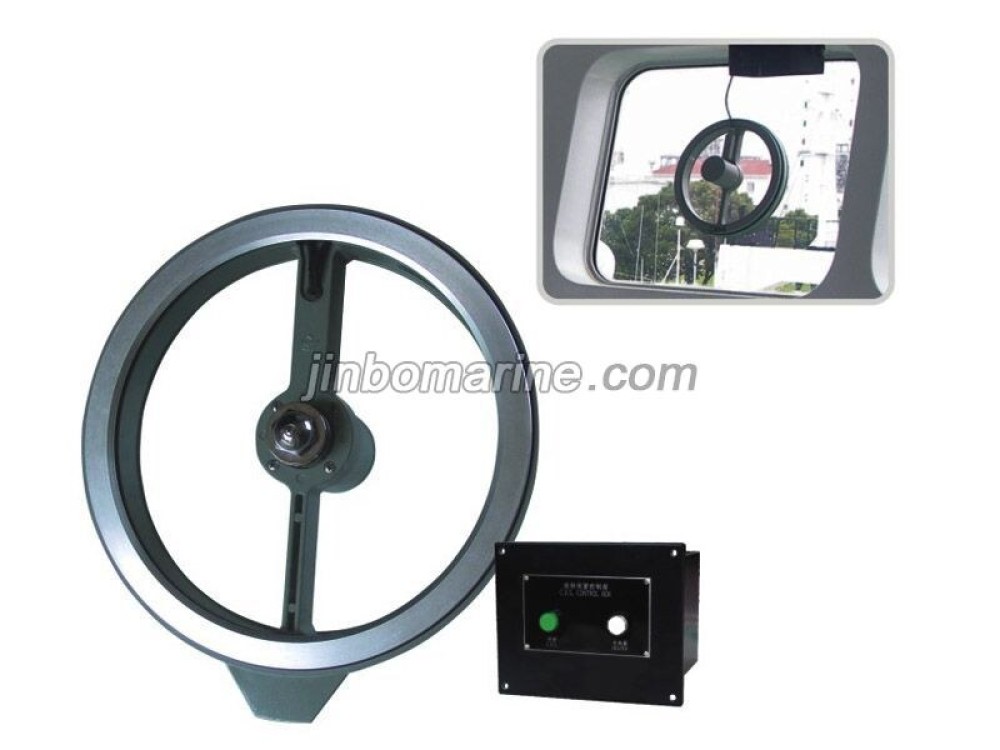

WS2-300CR Marine Clear View Screen
