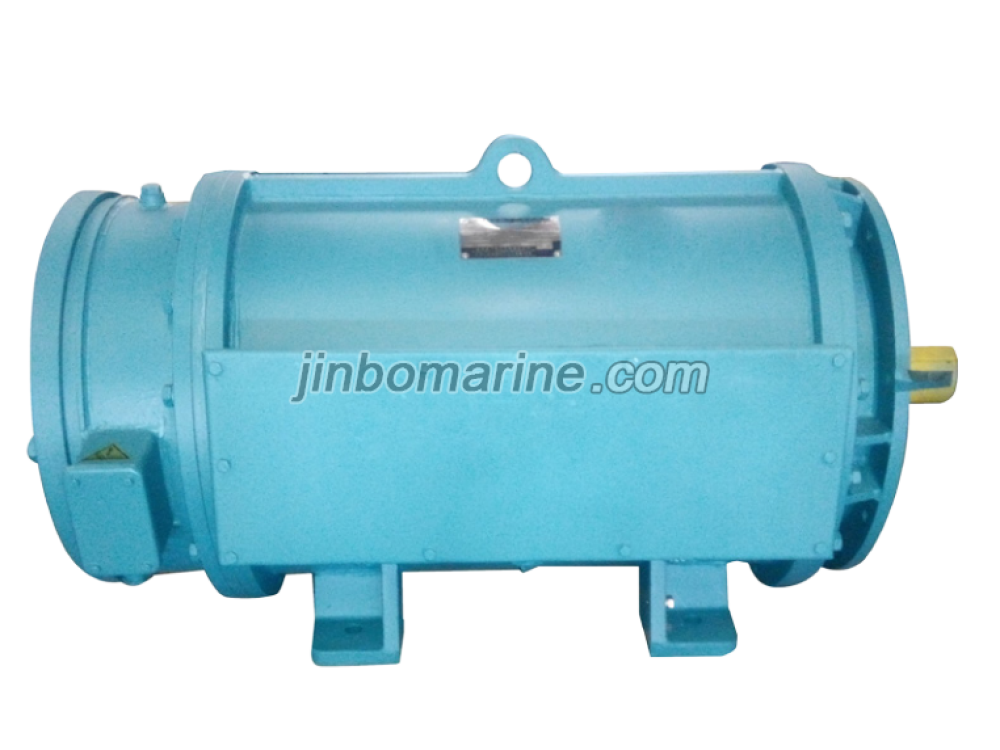

YZ—H Three Phase Induction Marine Electronic Motor

Introduction YZ-H series marine use three phase induction motors for hoisting are designed and manufactured according to GB755 ‘Rotating electrical machines-Rating and Performance’ ，GB/ T7060 ‘General specificati...

ISO9001 Supplier Class Certificate Export Supply

YZ—H Three Phase Induction Marine Electronic Motor

Key HighlightsCategory
Marine Electric Motor
Standard
DIN
Material
IEC60034 Rotary motor IEC60068 Testing process of basic environment IEC6...
Weight / Size
They have the features of excellent performance, small size, low noise, ...
Certificate
lR GL DNV KR
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Introduction

YZ-H series marine use three phase induction motors for hoisting are designed and manufactured according to GB755 ‘Rotating electrical machines-Rating and Performance’ ，GB/ T7060 ‘General specifications for rotary electrical machines in ships’ and JB/T7597 ‘Specification for YZ-H marine three phase induction motor for hoisting in ships’. They have the features of excellent performance, small size, low noise, reliable operation and convenient maintenance, etc. They are suitable for short time rationed electrical dragging on boats for deck machines, such as anchoring machines, winch machines and winch etc. They can also provide power for cargo lift that does not operate frequently. This series motors are also suitable for the following standards and specifications.

This series is in accordance with the following standard:

IEC60034 Rotary motor

IEC60068 Testing process of basic environment

IEC60072 Mounting dimensions and power of rotary motor

IEC60092 Marine electrical devices (equipment)

Rules for the construction of sea-going steel ships

Working Conditions:

Ambient temperature：-25~+45℃；

Shock, Vibration：Exist ；

Periodical transverse shaking：±22.5°；

Ramp：15°；

Altitude：0m；

Longitudinal ramp：10°；

Relative humidity of air：≤ 95%；

Frozen dew, salt dew, oil dew：Exist 。

Main Technical Data of single speed motors

Type	Duty S2-min	Rated power (kW)		Rated speed r/min		Rated current (A)		DC. Brake
Type	Duty S2-min	380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz	Voltage (V)	Current A	Brake torque N • m
YZ112S-4-H	30	1.5	1.8	1360	1632	4.3	4.5	110	1.37	33
YZ112M-4-H	30	2.2	2.5	1360	1630	6.0	5.92	110	1.37	33
YZ112L-4-H	30	3.7	4	1360	1630	9.6	8.98	110	1.37	33
YZ112S-6-H	30	1.1	1.2	890	1068	3.5	3.31	110	1.37	33
YZ112M-6-H	30	1.5	1.8	890	1068	4.65	4.82	110	1.37	33
YZ112L-6-H	30	2.2	2.5	890	1068	6.6	6.51	110	1.37	33
YZ132M1-4-H	30	5.5	6.3	1356	1670	13.4	13.3	110	1.56	72
YZ132M2-4-H	30	7.5	8.5	1360	1690	18.5	17.88	110	1.56	72
YZ132S-6T	30	3.7	4	940	1130	10.5	9. 85	110	1.56	72
YZ132M-6-H	30	5.5	6.3	940	1130	15.3	15.10	110	1.56	72
YZ160S-6-H	30	7.5	8.5	940	1140	19.73	19.31	110	1.61	160
YZ160L-6-H	30	11	13	930	1130	26.8	27.34	110	1.61	160
YZ180L-6T	30	15	18.5	960	1152	36	38.42	110	2.24	203
YZ200M-6-H	30	18.5	22	950	1140	43.9	45.13	110	2.23	260
YZ225S-6T	30	22	25	950	1140	50.97	50.03	110	2.16	399

Main Technical Data of double speed motors

Type	Duty S2-min	Rated power (kW)		Rated speed r/min		Rated current (A)		DC. Brake
Type	Duty S2-min	380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz	Voltage (V)	Current A	Brake torque N • m
YZ132M-4/12-H	30/10	3/1. 1	3. 5/1. 2	1360/430	1660/530	8. 3/7. 6	8. 4/8. 6	110	1.56	72
YZ132L-4/12-H	30/10	4/1.5	4. 5/1. 7	1400/430	1700/530	10. 3/9. 1	10/8.9	110	1.56	72
YZ160L-4/12-H	30/10	6. 3/2. 2	7. 5/2. 5	1394/426	1690/530	15.4/11.9	16.2/11.7	110	1.61	160
YZ180L-4/12-H	30/10	8. 5/3. 5	10/4. 0	1400/438	1690/520	19/18	20.5/17.7	110	2.24	203
YZ180L-4/16-H	30/15	11/3.0	13/3.5	1424/328	1742/380	24/16	26.8/16.7	110	2.24	203
YZ200M-4/16-H	30/15	15/4.0	17/4.5	1420/340	1740/400	32.8/24.1	33.2/23.4	110	2.23	260
YZ200L-4/16-H	30/15	18. 5/5. 5	22/6. 3	1420/340	1740/410	0.4/32.6	42.4/32.3	110	2.23	260

Main Technical Data of Three Speed Motors

Type

Duty
S2-min

Rated power (kW)

Rated speed r/ min

Rated current (A)

DC. Brake

380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz 380V 50Hz 440V 60Hz Voltage (V) Current A Brake torque N • m

YZ200S- 4/8/16-H 10/30/5 9 10 21.4 20.5 1435 1738 110 2.23 260

9 10 24.7 23.7 684 837

4.2 4.7 37.3 36.4 324 406

YZ200L- 4/8/16-H 12.5 14 29.3 28.4 1437 1733

12.5 14 34.3 33.2 689 840

5.7 6.5 49.5 49.4 330 410

YZ225S- 4/8/16-H 16.8 19 38.9 38.0 1421 1723 2.16 399

16.8 19 46.2 45.0 683 835

8 9.1 67.6 67.9 333 413

YZ225L- 4/8/16-H 22.5 25 51.5 49.4 1422 1725

22.5 25 60.3 57.9 686 838

10.6 12 85.6 86.3 334 400

YZ250S- 4/8/16-H 30 33.5 63.8 61.6 1410 1713 2.65 876

30 33.5 71.3 68.7 680 832

14.5 16 105.5 103.5 336 415

YZ250M- 4/8/16-H 42 46 86.3 81.6 1410 1707

42 46 95 89.8 676 830

20 22 112.6 110 334 414

YZ280S- 4/8/16-H 56 63 114 111.2 1415 1717 2.45 1550

56 63 120.6 117.2 694 844

27 30 147.5 145 345 423

YZ280L- 4/8/16-H 75 84 154 149 1427 1729

75 84 161.5 156.2 692 843

36 40 182 179.5 345 423

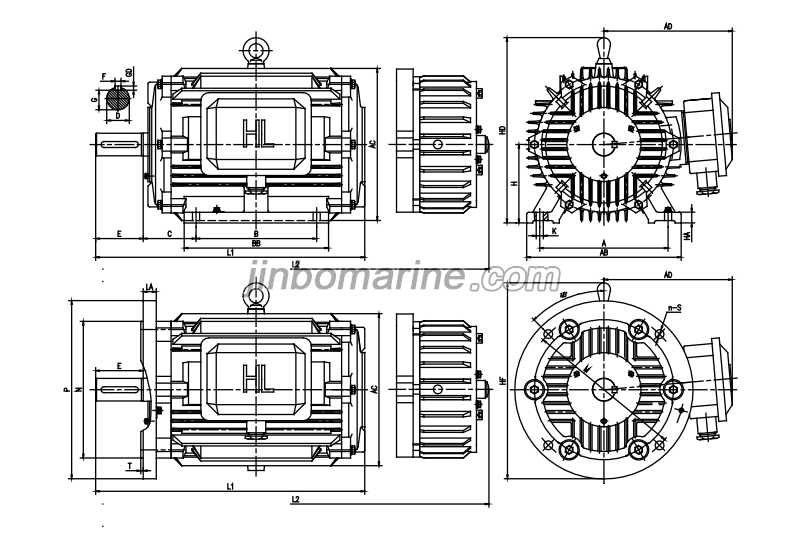

Frame Size	Mounting Dimensions															Overall Dimensions							Weight(kg)
Frame Size	A	B	C	D	E	F	G	H	K	M	N	P	S	T	n	AB	AD	BB	HA	HD	LI	L2	LI	L2
200S	318	228	133	48	110	14	42.5	200	19	350	300	400	19	5	4	398	300	338	20	518	660	790	249	335
200L	318	305	133	48	110	14	42.5	200	19	350	300	400	19	5	4	398	300	418		518	740	870	280	385
225S	356	286	149	55	110	16	49	225	19	400	350	450	18	5	8	436	325	386		578	765	925	330	405
225L	356	356	149	55	110	16	49	225	19	400	350	450	18	5		436	325	456		578	835	995	390	465
250S	406	311	168	65	140	18	58	250	24	500	450	550	18	5		506	400	420	23	628	845	1030	600	690
250M	406	349	168	65	140	18	58	250	24	500	450	550	18	5		506	400	458		628	880	1060	700	850
280S	457	368	190	75	140	20	67.5	280	24	500	450	550	18	5		557	430	478		698	910	1125	800	880
280L	457	457	190	75	140	20	67.5	280	24	500	450	550	18	5		557	430	567		698	1000	1215	1010	1200

Frame Size	Mounting And Overall Dimensions
	A	B	C	D	E	F	G	GD	H	K	M	N	P	S	T	n	AB	AC	AD	BB	HA	HD	HF	LA	L1	L2
112S	190	114	70	28	60	8	24	7	112	12	265	230	300	15	4	4	226	215	215	152	15	270	310	22	310	430
112M		140																		197					350	460
112L		159
132S	216	140	89	38	80	10	33	8	132								260	260	235	180	18	315	335		400	515
132M		178																		243					460	575
132L		203

Type	Duty S2-min	Rated power (kW)		Rated speed (r/min)		Rated current (A)		DC. Brake
Type	Duty S2-min	380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz	380V 50Hz	440V 60Hz	Voltage (V)	Current (A)	Brake torque N.m
YZ112S-4-H	30	1.5	1.8	1360	1632	4.3	4.5	110	1.37	33
YZ112M-4-H	30	2.2	2.5	1360	1630	6.0	5.92	110	1.37	33
YZ112L-4-H	30	3.7	4	1360	1630	9.6	8.98	110	1.37	33
YZ112S-6-H	30	1.1	1.2	890	1068	3.5	3.31	110	1.37	33
YZ112M-6-H	30	1.5	1.8	890	1068	4.65	4.82	110	1.37	33
YZ112L-6-H	30	2.2	2.5	890	1068	6.6	6.51	110	1.37	33
YZ132M1-4-H	30	5.5	6.3	1356	1670	13.4	13.25	110	1.86	72
YZ132M2-4-H	30	7.5	8.5	1360	1690	18.5	17.88	110	1.86	72
YZ132S-6-H	30	3.7	4	940	1130	10.5	9.85	110	1.86	72
YZ132M-6-H	30	5.5	6.3	940	1130	15.3	15.10	110	1.86	72
YZ132M- 4/12-H	30/10	3/1. 1	3. 5/1. 2	1360/430	1660/530	8. 4/7. 6	8. 4/7.1	110	1.86	72
YZ132L- 4/12-H	30/10	4/1.5	4. 5/1.7	1400/430	1700/530	10.3/9.1	10/9	110	1.86	72
