Centrifugal Pump

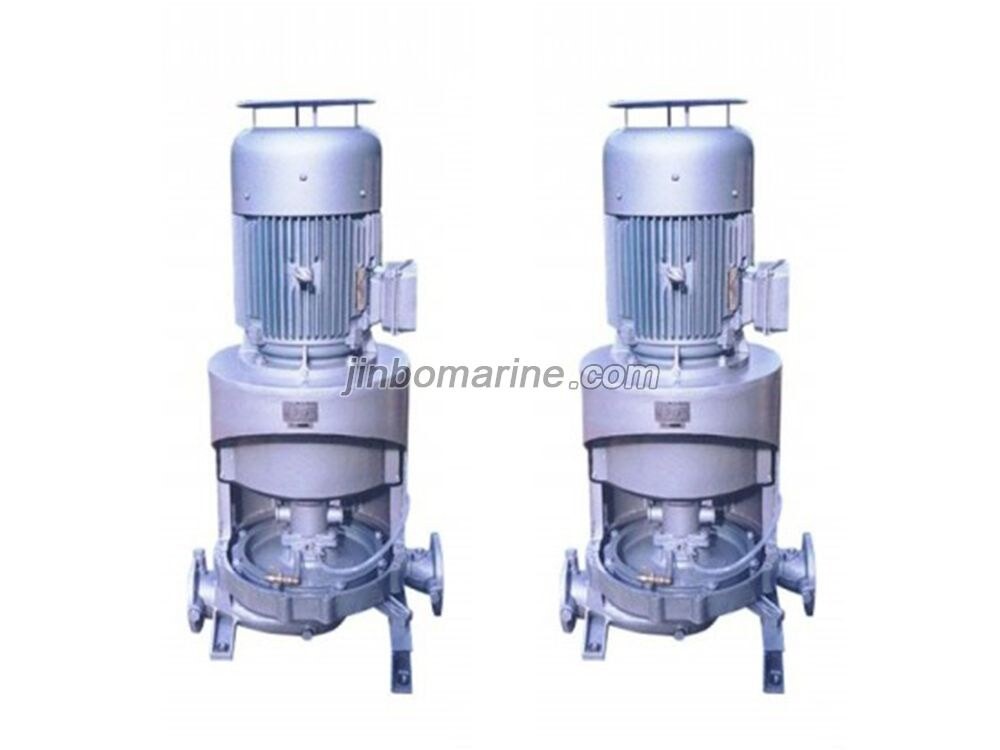

CLV Marine Vertical Centrifugal Pump
Description: Technical data: Model Capacity (m3/h) Head (m) Speed (r/min) NPSH (m) S...
ISO9001 Supplier
Class Certificate
Export Supply
Key Highlights
Category
Centrifugal Pump
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.
Technical Specifications
Category
Centrifugal Pump
Model / SKU
CLV-Marine-Vertical-Centrifugal-Pump
Standard
EN
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Description:
Technical data:
| Model | Capacity (m3/h) | Head (m) | Speed (r/min) | NPSH (m) | Shaft Power kw | Efficiency % | Power (kw) |
| CLV65-200A | 27 | 14.5 | 1450 | 2.5 | 1.8 | 59.2 | 2.2 |
| CLV65-280A | 30 | 21 | 1450 | 2.5 | 3.1 | 55.3 | 4 |
| CLV65-300A | 30 | 28 | 1450 | 2.5 | 4.4 | 52 | 5.5 |
| CLV65-350A | 25 | 41 | 1450 | 2.5 | 6.1 | 45.8 | 7.5 |
| CLV80-200A | 48 | 14.5 | 1450 | 2.5 | 2.8 | 67.7 | 4 |
| CLV80-220B1 | 45 | 48 | 2900 | 4.0 | 9.8 | 60 | 11 |
| CLV80-220A | 45 | 62 | 2900 | 4.0 | 12 | 63.3 | 15 |
| CLV80-280A | 54 | 21.5 | 1450 | 3.0 | 4.5 | 70.3 | 5.5 |
| CLV80-300A | 46 | 28 | 1450 | 2.8 | 5.8 | 60.5 | 7.5 |
| CLV80-350B | 40 | 35 | 1450 | 2.5 | 6.9 | 55.3 | 11 |
| CLV80-350A | 54 | 41 | 1450 | 3.0 | 10.5 | 57.4 | 15 |
| CLV80-350B2 | 42 | 41 | 1450 | 2.5 | 8.4 | 55.8 | 11 |
| CLV100-200A | 83 | 14.5 | 1450 | 3.2 | 4.6 | 71.3 | 5.5 |
| CLV100-220B | 87 | 55 | 2900 | 4.5 | 18.5 | 70.4 | 22 |
| CLV100-220A | 95 | 68.5 | 2900 | 4.5 | 24.2 | 73.2 | 30 |
| CLV100-280A | 83 | 21 | 1450 | 3.0 | 6.4 | 74.2 | 7.5 |
| CLV100-300A | 83 | 28 | 1450 | 2.8 | 9.1 | 69.5 | 11 |
| CLV100-350A | 83 | 41 | 1450 | 3.2 | 14.2 | 65.3 | 18.5 |
| CLV125-200A | 116 | 14 | 1450 | 3.5 | 5.9 | 75 | 7.5 |
| CLV125-220B | 128 | 55 | 2900 | 5.0 | 26.7 | 71.8 | 37 |
| CLV125-220A | 149 | 68.5 | 2900 | 5.5 | 36.9 | 75.3 | 45 |
| CLV125-270A | 140 | 86 | 2900 | 5.0 | 44.7 | 73.4 | 55 |
| CLV125-280A | 125 | 21 | 1450 | 3.5 | 9.6 | 74.5 | 11 |
| CLV125-350B | 116 | 34 | 1450 | 3.5 | 15.9 | 67.6 | 22 |
| CLV125-350A | 125 | 41 | 1450 | 3.5 | 19.8 | 70.5 | 30 |
| CLV150-350B2 | 190 | 35 | 1450 | 3.5 | 25.6 | 70.7 | 30 |
| CLV200-200A | 332 | 13.7 | 1450 | 4.0 | 15.9 | 77.9 | 18.5 |
| CLV200-280B | 290 | 17 | 1450 | 4.5 | 17.3 | 77.6 | 22 |
| CLV200-280A | 330 | 20.5 | 1450 | 4.5 | 23.4 | 78.7 | 30 |
| CLV200-280B2 | 250 | 20.5 | 1450 | 4.0 | 17.9 | 78.0 | 22 |
| CLV200-300A | 325 | 27.5 | 1450 | 4.5 | 30.3 | 80.3 | 37 |
