High Pressure Pump

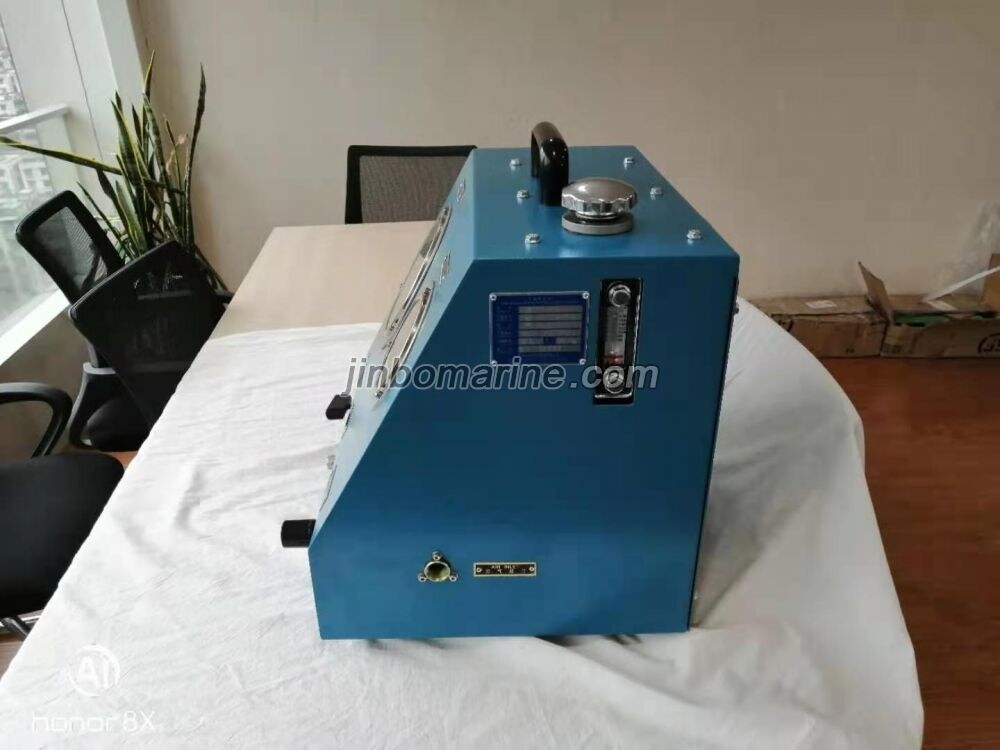

HPU-350 Air Driven High Pressure Hydraulic Pump

Description: HPU-350 Air Driven High Pressure Hydraulic Pump is a new type of hydraulic stretching and pressing equipment. It transforms the lower air pressure into pressure oil and becomes an ideal power source. ...

ISO9001 Supplier Class Certificate Export Supply
HPU-350 Air Driven High Pressure Hydraulic Pump

Key Highlights

Category
High Pressure Pump
Standard
DIN
Weight / Size
It can be widely used in large and medium-sized mechanical screw fasteni...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
High Pressure Pump
Model / SKU
HPU-350-Air-Driven-High-Pressure-Hydraulic-Pump
Standard
DIN
Weight / Size
It can be widely used in large and medium-sized mechanical screw fastening, large transmission parts and keyless matching of structural parts in metallurgical mining, petrochemical industry, shipbuilding industry, locomotive and vehicle manufacturing industry.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China
Contents
  1. Description:
  2. System:
  3. Technical data:

Description:

HPU-350 Air Driven High Pressure Hydraulic Pump is a new type of hydraulic stretching and pressing equipment. It transforms the lower air pressure into pressure oil and becomes an ideal power source.

FYB series hydraulic booster pump has the advantages of high output pressure, simple operation, safe and reliable, easy to carry and so on. It can be widely used in large and medium-sized mechanical screw fastening, large transmission parts and keyless matching of structural parts in metallurgical mining, petrochemical industry, shipbuilding industry, locomotive and vehicle manufacturing industry. It is an ideal tool for assembling and matching various large and medium-sized machines.

System:

Technical data:

Model HPU-350
Weight 32 KG (net weight
Size 490*430*480 mm
Output oil pressure Maximum 350MPa (input pressure 0.7MPa)
Output oil pressure Maximum 300MPa (input pressure 0.6MPa)
Pump working speed About 4000 cydles per minute,
input pressure 0.7MPa
Tank capacity About 8L
Maxi flow (At no pressure) About 0.35m3 per minute,
input pressure 0.7MPa
