Jinbo Marine
Marine & Offshore Equipment Datasheet
Product Datasheet

GB Marine Globe Valve

Marine Bronze Male Thread SDNR Valve GB596-83

It is also can be called as marine bronze male thread stop check valve or SDNR Globe Valve.There are two types, A is straight type, B is angle type. Design Standard: GB596-83 Test Standard: GB600 ...

ISO9001 Supplier Class Certificate Export Supply

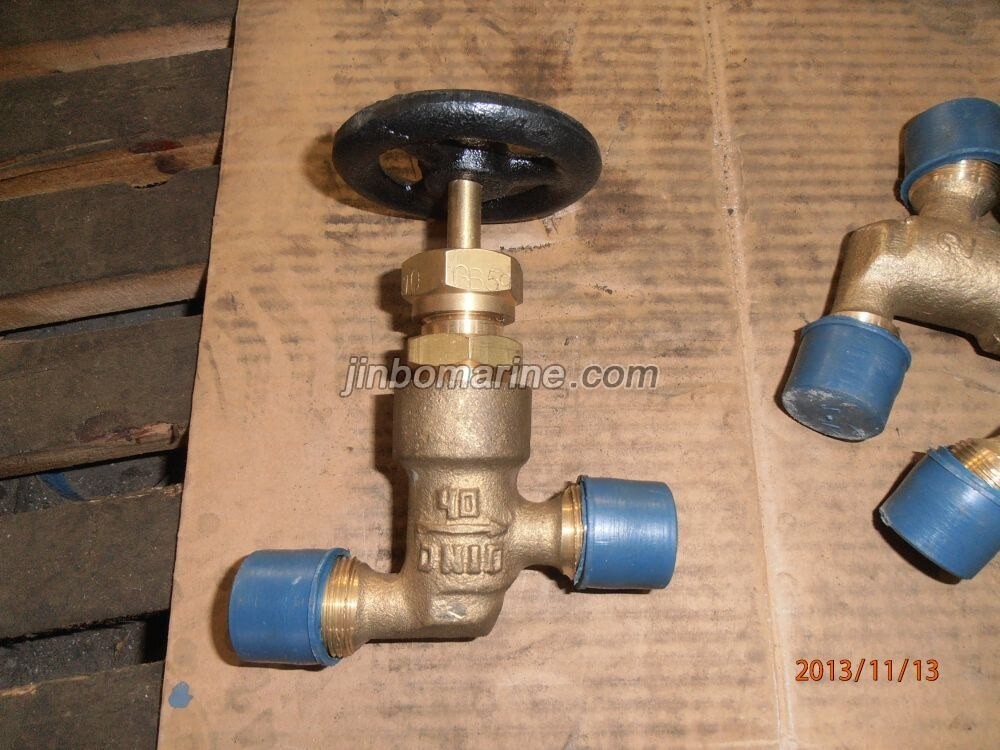

Marine Bronze Male Thread SDNR Valve GB596-83

Key Highlights

Category
GB Marine Globe Valve
Standard
GB
Material
Bronze
Weight / Size
Body-Bronze Bonnet-Bronze Disc-Bronze Stem-Bronze Main Size List(mm):
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
GB Marine Globe Valve
Model / SKU
Marine-Bronze-Male-Thread-SDNR-Valve-GB596-83
Standard
GB
Material
Bronze
Weight / Size
Body-Bronze Bonnet-Bronze Disc-Bronze Stem-Bronze Main Size List(mm):
Certificate
CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
Warranty
12 Months unless specified otherwise
Origin
China

China Marine Bronze Male Thread SDNR Valve GB596-83:

It is also can be called as marine bronze male thread stop check valve or SDNR Globe Valve.There are two types, A is straight type, B is angle type.

Design Standard: GB596-83

Test Standard: GB600

Nominal Pressure(Mpa) Nominal Diameter(mm) Applicalbe Medium
4.0 10--32 sea water, fresh water, lubrication oil, fuel oil, air,steam not over 250℃

Main Material:

Body-Bronze

Bonnet-Bronze

Disc-Bronze

Stem-Bronze

Main Size List(mm):

DN (mm) Structure Dimension thread joint wrench size hand wheel lift range m Weight(kg)
L H≈ H1
Type A Type B Type A Type B D D1 D2 I I1 S2 D0 S1 Type A Type B
Type A Type B
10 94 47 128 20 41 M27×1.5 24.8 14 16 3 27 32 80 8 7 0.98 0.95
15 110 55 143 25 52 M36×2 33 22 22 5 32 41 80 8 10 1.51 1.45
20 116 58 154 32 55 M39×2 36 25 23 5 36 46 100 9 12 1.80 1.75
25 130 65 167 38 64 M48×2 45 32 26 6 46 50 120 11 14 2.51 2.34
32 140 70 198 46 72 M56×2 53 38 28 6 46 60 140 12 16 4.22 3.97
