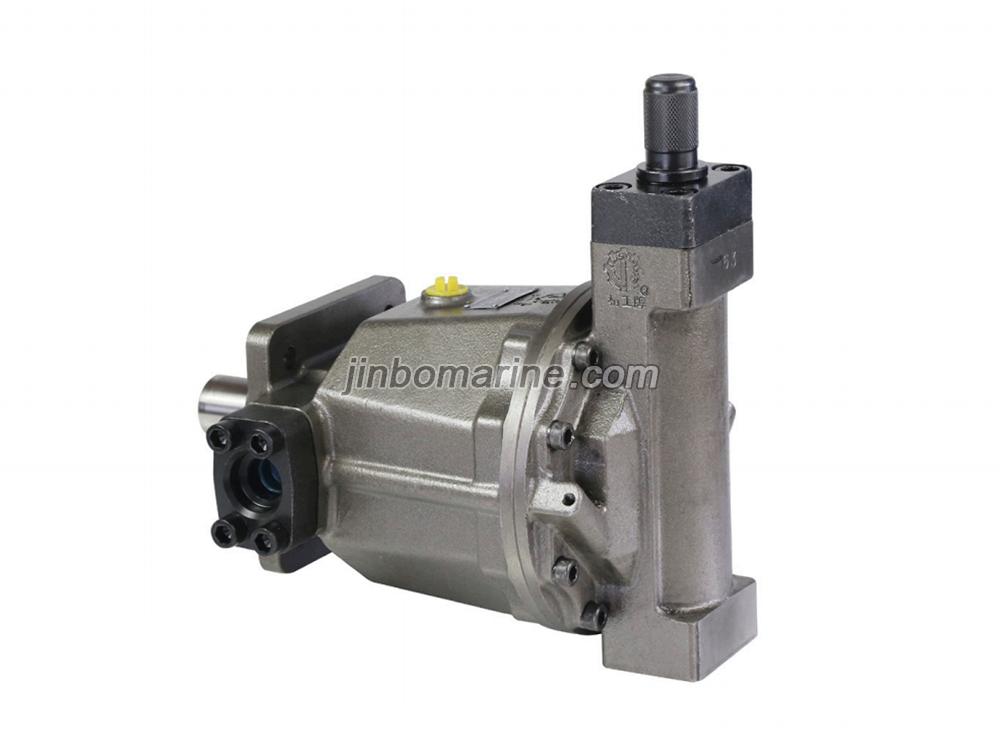

QG32 Axial Piston Variable Displacement Pump
- Category:Reciprocating Pump
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Feature:
1、 This product is an axial piston pump in swash plate design for hydrostatic drives in open circuit operation:
2、 Its rated operating pressure is up to 31.5MPa, and the instantaneous high pressure can reach 40MPa;
3、 Various displacements .high power density;
4、 Excellent suction performance;
5、 New appearance .Excellent power/Weight ratio;
6、 Low noise, Long lifespan;
7、 The same mounting flange with CY pump and design for SAE oil flange

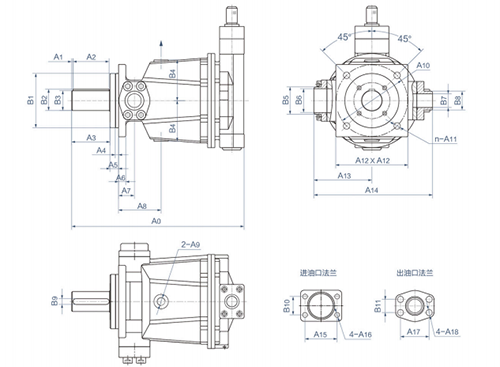

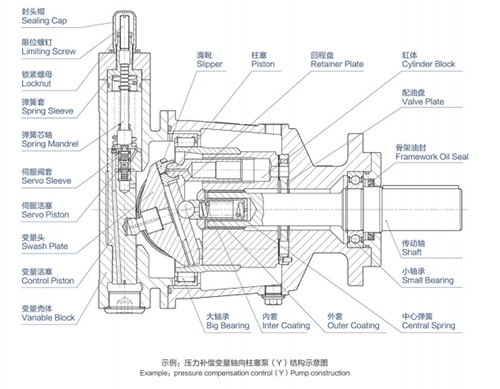

Structure Drawing：
Data sheet:
| Model | (ml/rev) displacement | (MPa) Rated power | (r/min) Rated power | 1500rpm (KW) Max.power |
| QG25 | 25 | 31.5 | 1500 | 20 |
| QG28 | 28 | 31.5 | 1500 | 22 |
| QG32 | 32 | 31.5 | 1500 | 25 |
| QG40 | 40 | 31.5 | 1500 | 31 |
| QG45 | 45 | 31.5 | 1500 | 35 |
| QG55 | 55 | 31.5 | 1500 | 43 |
| QG63 | 63 | 31.5 | 1500 | 50 |
| QG71 | 71 | 31.5 | 1500 | 56 |
| QG80 | 80 | 31.5 | 1500 | 63 |
| QG90 | 90 | 31.5 | 1500 | 71 |
| QG95 | 95 | 31.5 | 1500 | 75 |
| QG100 | 100 | 31.5 | 1500 | 79 |
| QG107 | 107 | 31.5 | 1500 | 84 |
| QG125 | 125 | 31.5 | 1500 | 98 |
| QG140 | 140 | 31.5 | 1500 | 110 |
| QG160 | 160 | 31.5 | 1500 | 126 |
| QG180 | 180 | 31.5 | 1500 | 142 |
| QG200 | 200 | 31.5 | 1500 | 157 |
| QG250 | 250 | 31.5 | 1500 | 197 |
| QG280 | 280 | 31.5 | 1500 | 220 |
| QG300 | 300 | 31.5 | 1500 | 236 |
| QG320 | 320 | 31.5 | 1500 | 252 |
