4.5-30kn.m Ram Type With Steering Controlled Steering Gear

General Description

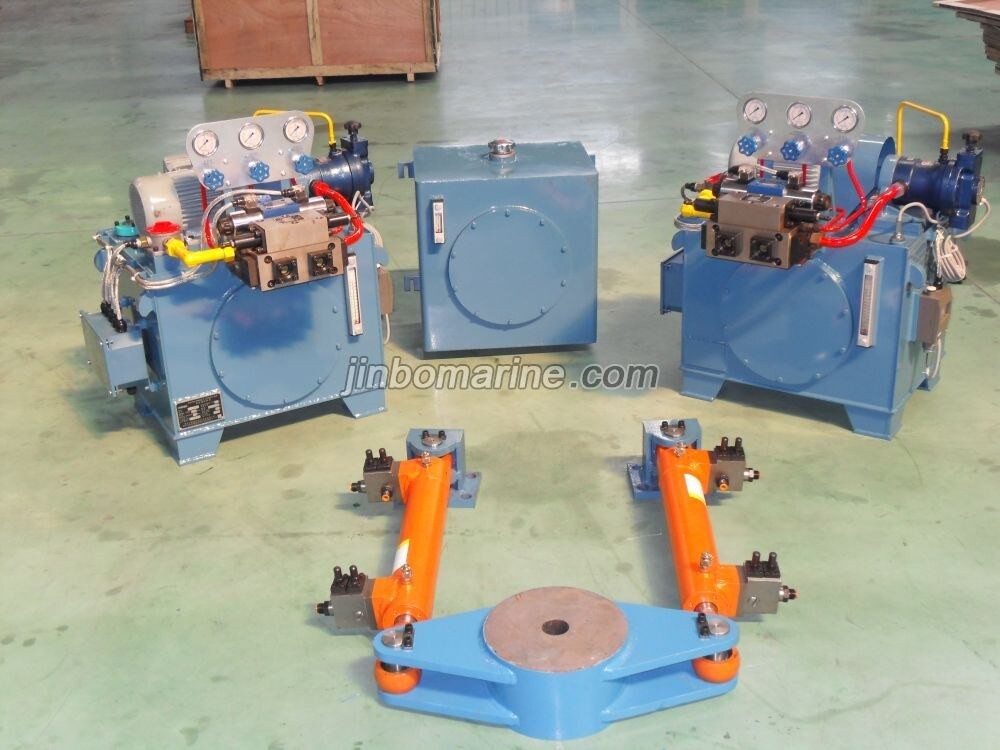

The linked cylinder type electro-hydraulic steering gear series consists of one set of rudder mechanism with two piston
type of cylinders, two sets of oil pump units, one reserve tank, one control station. To finish procedure of steering control, rotate hand wheel in wheel house, though steering mechanism controls hydraulic oil to cylinder access, thereby rudder blades work. To change direction, operate steering switch of solenoid valve. When power is failure, steering mechanism can be used to complete emergency steering control. It is widely used in navigation zone of inland rapid flowing river, normal zone, and for fishing vessel or small size if sightseeing lunch.

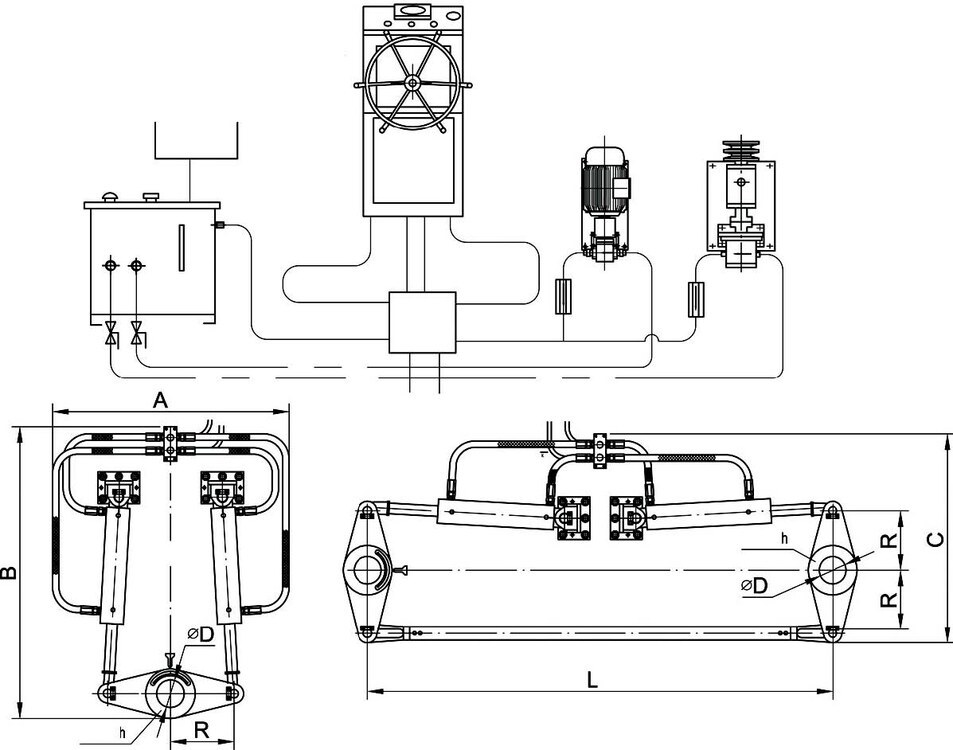

Drawing and dimension

Specification

No.

Torque(KN.m)

A

B

C

Radius of filler(R)

Height of the center(H)

Thickness of filler(H)

1

4.5-6.3

1150

1150

887

200

100

100

2

6.3-8

1150

1150 887

200

120

120

3

8-12

1400

1180

1010

300

130

130

4

12-20

1500

1200

1110

300

130

130

5

20-30

1520

1250

1200

300

140

140
