Relay Box For Alarm Indicator

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Relay Box For Alarm Indicator:

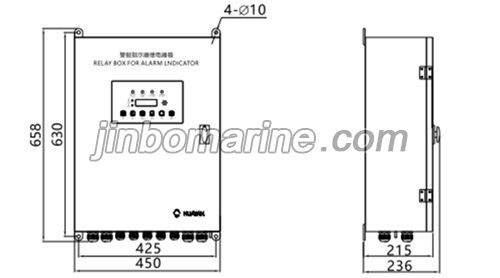

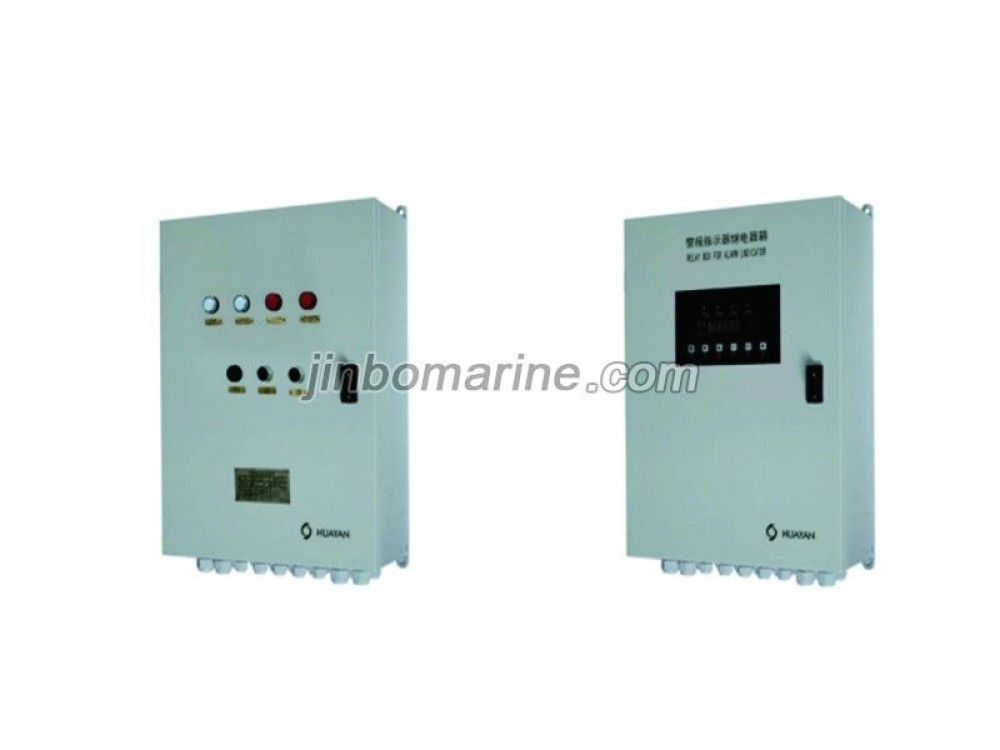

Relay Box For Alarm Indicator

1)Chapter 2 of Part 4 of the"Steel Ship Classification Rules" of the China Classification Society:
2)IMO resolution A.1021 (26) code on alerts and indicators,2009.

NO. Power Power consumption Cable gland Power supply Colour Shell material IP rating
1 160W 240W 8xPG21,10PG16
1xAC220V±10%, 1xDC24V or 2xAC220V±10%
 White RAL7035 Q235B IP44
2 250W 380W 8xPG21,10PG16 White RAL 7035 Q235B IP44
3 400W 600W 8xPG21,10PG16 White RAL 7035 Q235B IP44
4 630W 950W 8xPG21,10PG16 White RAL 7035 Q235B IP44
5 1000W 1500W 8xPG21,10PG16 White RAL 7035 Q235B IP44
