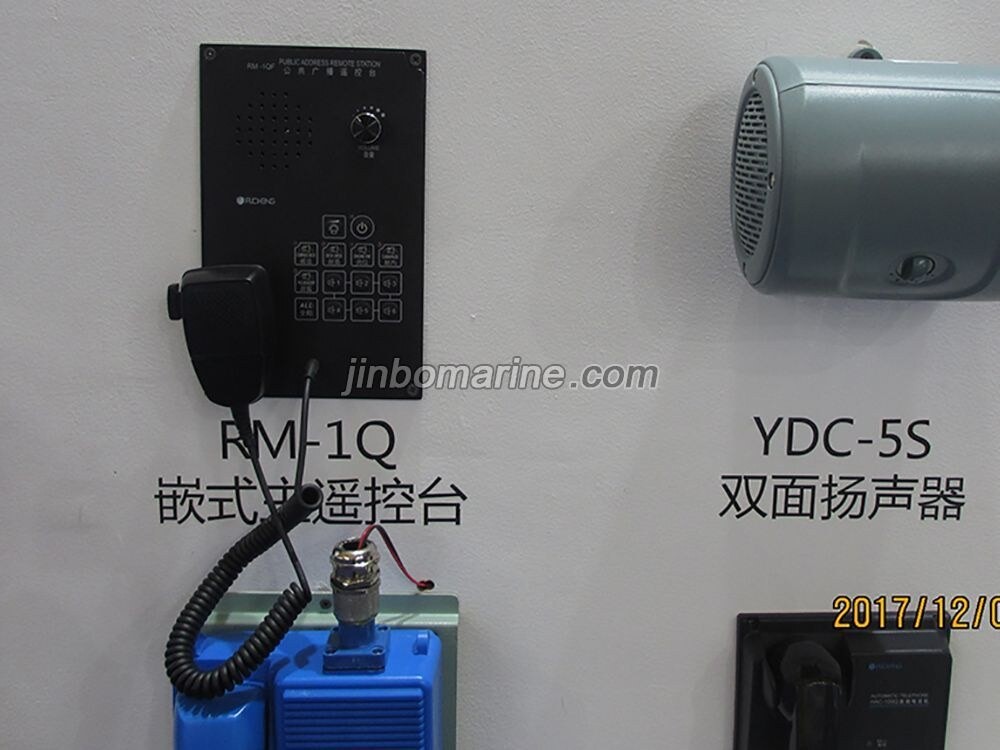

RM-1Q Main Control Station

RM-1Q Main Control Station is generaaly mounted in the warehouse,it is flush mounting type, it will handle MIC and built-in 2W loudspeaker. It can connect the CZB-1 MIC socket to extend the MIC to bridge wing.

1.Remote function:

There are four keys on the panel. i.e. Compass deck, deck area, engine room, cabin/passenger. The user can paging through the main control station and press one of the keys to output.

2.Talk-back function:

The main control station can be talk-back with other remote control stations. There are "1~4" keys on the main control station,which means the number of the other remote stations. Press one of the keys to talk-back with other station.

3.Emergency broadcasting:

Press PTT key to broadcasting when alarming.

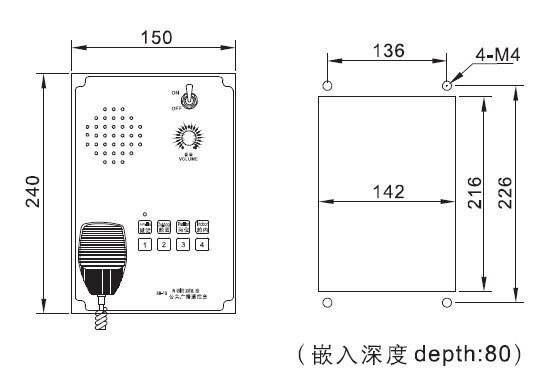

Drawing:
