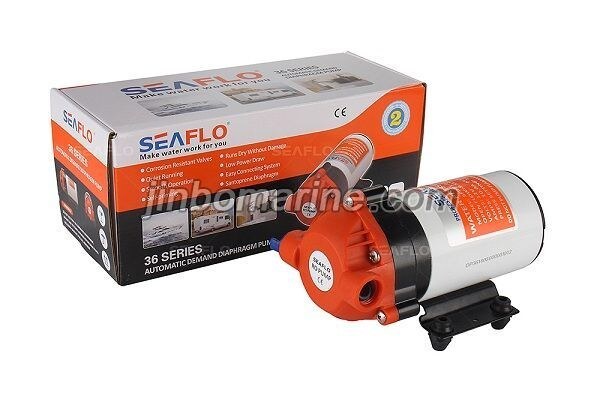

RO Booster Pump
- Category:Diaphragm Pump
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

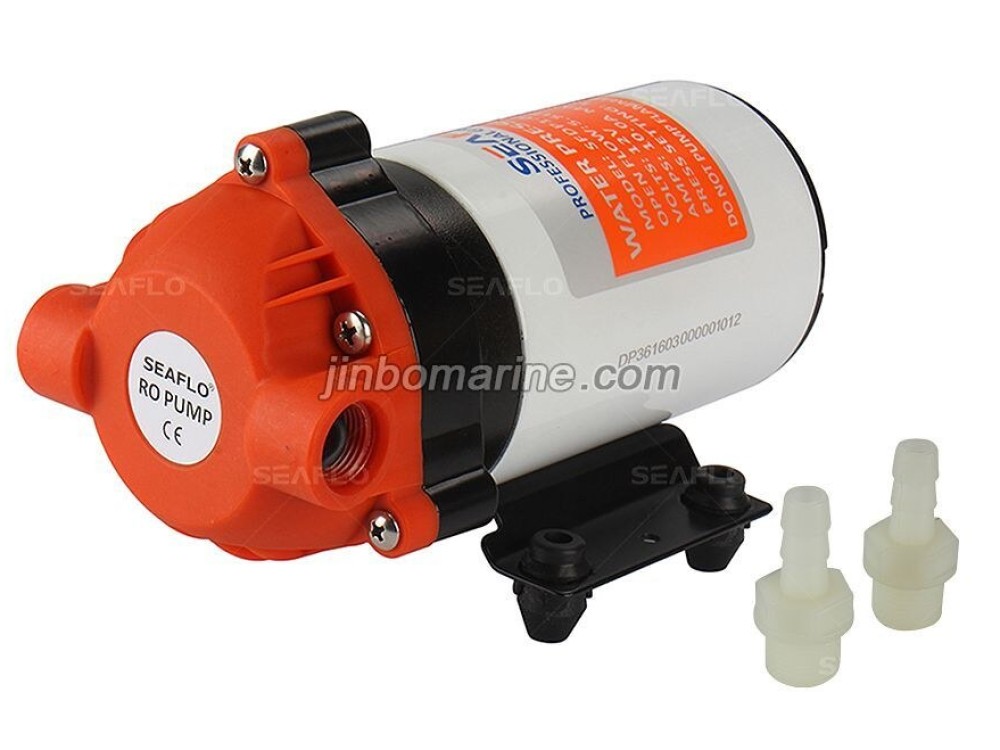

RO Booster Pump
Gerneral description:
DC/AC 5-7LPM 120PSI
The 36-Series is our continuous-duty on-demand positive displacement pump. It provides reliable performance in moderate water flow, high-pressure applications. This 3-chamber diaphragm pump provides up to 1.8 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. They are easy to install, service and winterize.
Parameter pump and motor:
| PUMP | |
| Type | 3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | By Pass Contral |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure | Shut-off Pressure 120 PSI : 98 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | 3/8"-18 FNPT |
| Weight | 5.0 lbs (2.2 kg) |
| MOTOR | |
| Leads | 16 AWG, 8" (20cm) long with 2-Pin connector/Leads |
| Duty Cycle | Continuous |
| Max.Amp Draw | 12.0 A |
| Fuse | 18.0 A |
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow （GPM/LPM) |
Control Type |
Max Draw |
Shut-off Pressure |
Valves | Diaphragm | Ports |
Wire Connections |
| SFDP1-015-120-36 | 12V | 1.5/5.5 | By Pass | 10.0A | 120/8.3 | EPDM | Santoprene | 3/8"-18 FNPT | 2-Pin/Leads |
| SFDP2-015-120-36 | 24V | 1.5/5.5 | By Pass | 5.0A | 120/8.3 | EPDM | Santoprene | 3/8"-18 FNPT | 2-Pin/Leads |
| SFDP1-018-120-36 | 12V | 1.8/7.0 | By Pass | 12.0A | 120/8.3 | EPDM | Santoprene | 3/8"-18 FNPT | 2-Pin/Leads |
| SFDP2-018-120-36 | 24V | 1.8/7.0 | By Pass | 6.0A | 120/8.3 | EPDM | Santoprene | 3/8"-18 FNPT | 2-Pin/Leads |
| SFDPA1-015-120-36 | 110V | 1.5/5.5 | By Pass | 0.8A | 120/8.3 | EPDM | Santoprene | 3/8"-18 FNPT | 2-Pin/Leads |
| SFDPA2-015-120-36 | 220V | 1.5/5.5 | By Pass | 0.5A | 120/8.3 | EPDM | Santoprene | 3/8"-18 FNPT | 2-Pin/Leads |
