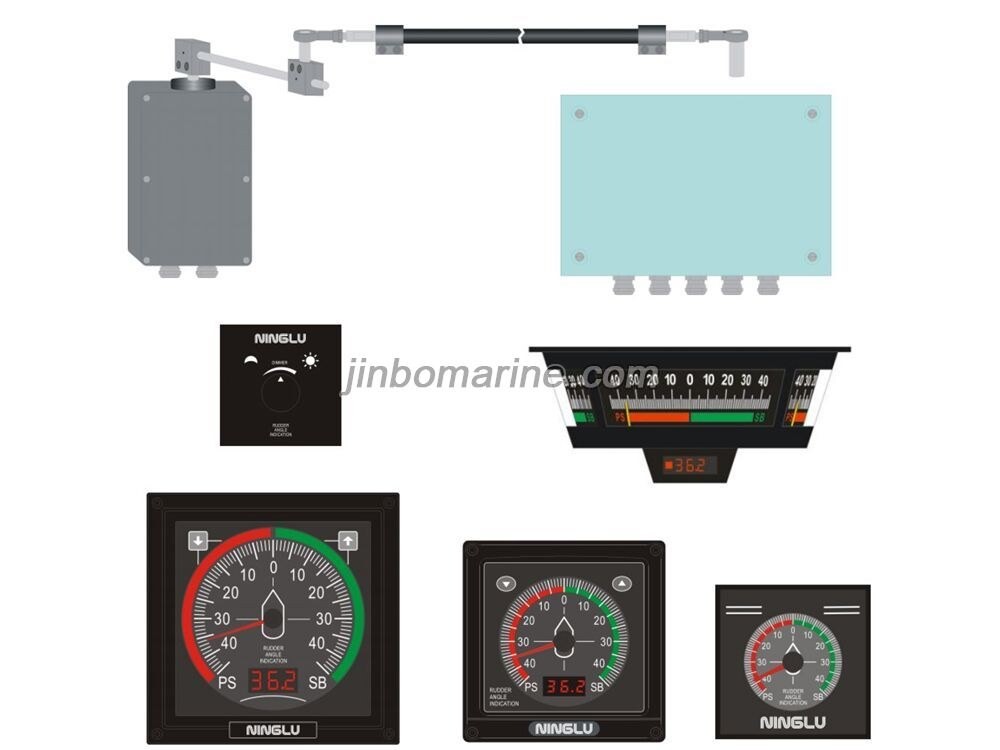

Rudder Angle Indication System AD80
- Category:Marine Navigation Equipment
- Standards:CCS,MED APPROVAL
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Rudder Angle Indication System AD80:
Rudder angle indication system AD80 is used to accurately and real timely indicate the direction and position of the rudder in wheel house, ECC room and steering gear room for the crew.
With the functions of flexible configuration, good dimming, easy to install and maintain, AD80 fully complies with the regulations of IMO and the standard IEC61162 sentences.
Features:
Analog and digital dual display
Multidirectional rod link
Fast plug-in waterproof connector
Multi-size display optional
| ITEM SPECIFICATIONS |
| Rudder Angle accuracy ±0.1° |
| Supply Power |
| 24V DC （21.6-31.2V） |
| 110/220V 50/60Hz AC |
| Data |
| Input/Output |
| RS422, NMEA0183 Standard |
| $--RSA, x.x, A, x.x, A*hh |
| Mounting Desk/Ceiling/Flush |
| DIMENSION |
| PROTECTION LEVEL |

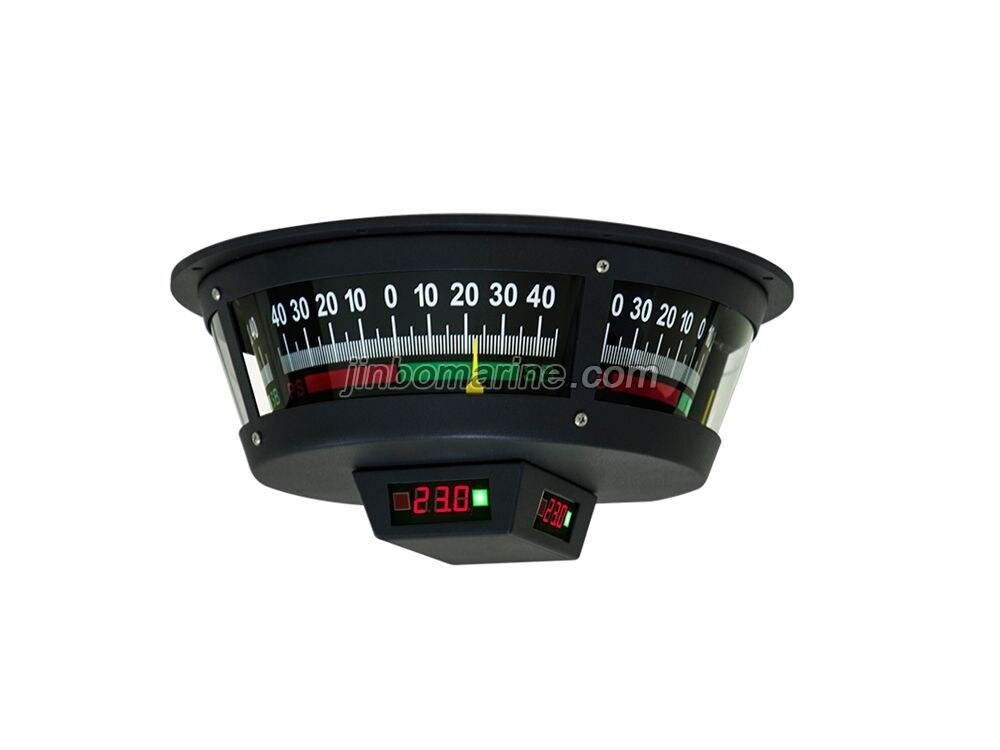

| Three-face Indication Unit AD801 |
| φ370mm, High 156mm |
| IP22 |

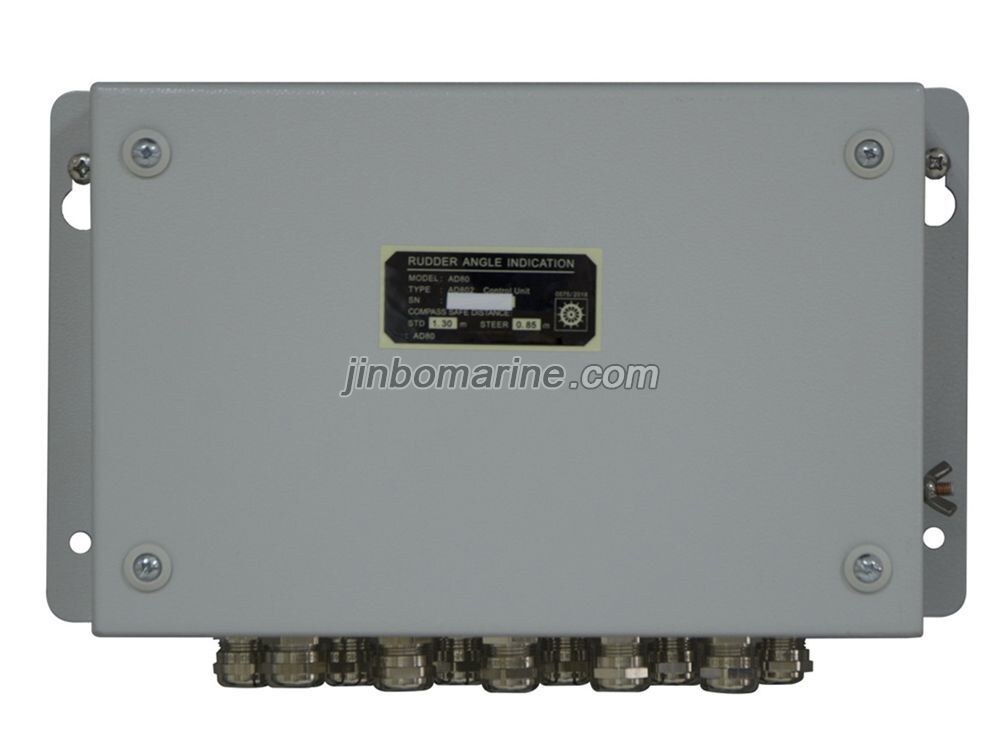

| Control Unit AD802 |
| 300mm×225mm×125mm |
| IP22 |
| Transmitter AD803 |
| 270mm×120mm×80mm |
| IP56 |

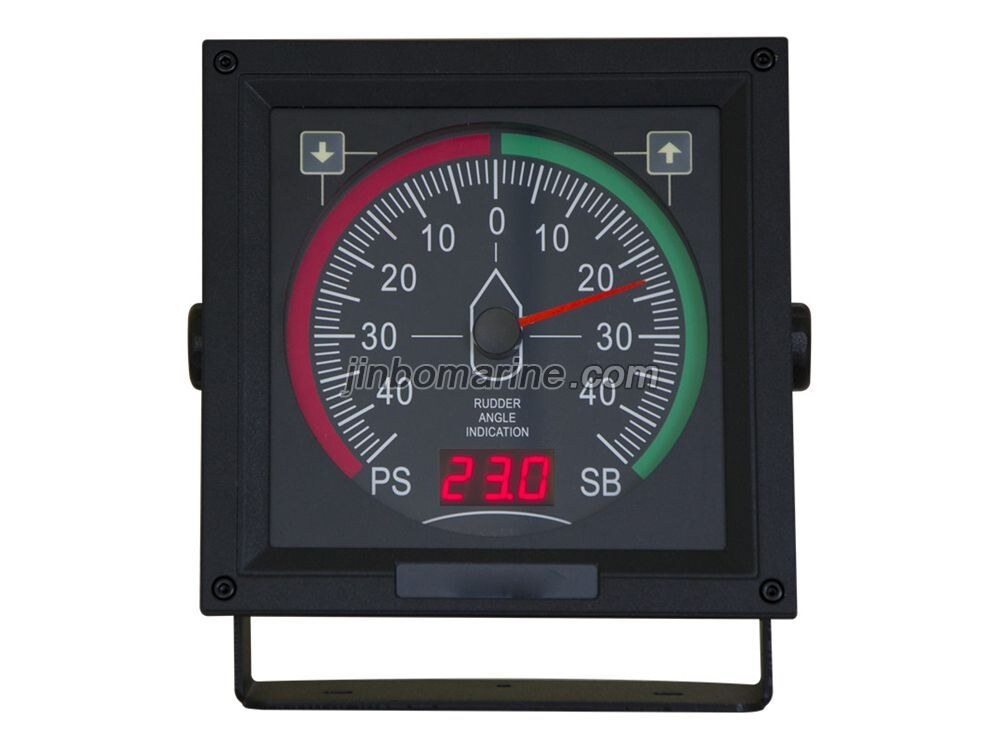

| Indication Unit AD804 |
| 192mm×192mm×192mm |
| IP56 |
| Indication Unit AD805 |
| 144mm×144mm×73mm |
| IP22 |

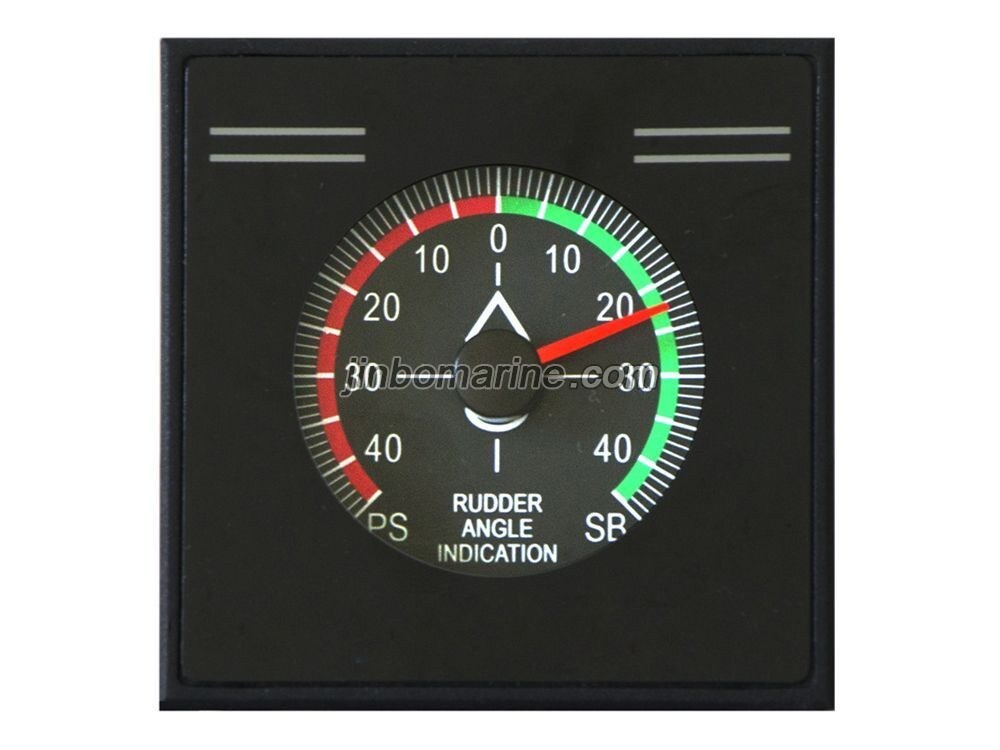

| Indication Unit AD806 |
| 96mm×96mm×85mm |
| IP22 |

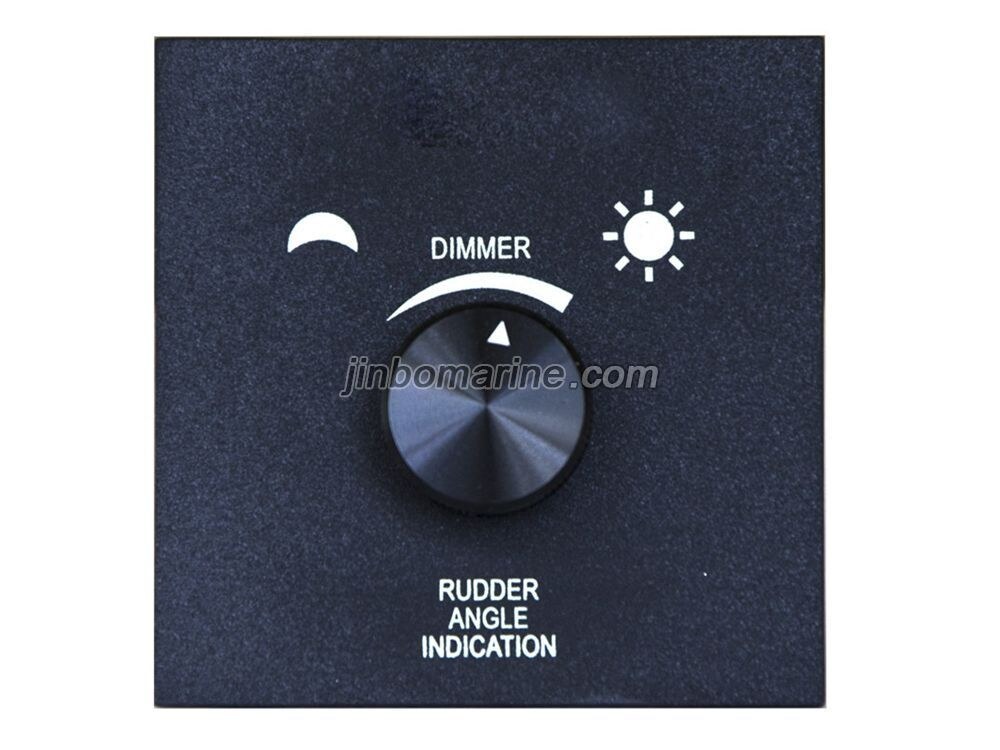

| Remote Dimmer AD807 |
| 96mm×96mm×64mm |
| IP22 |
