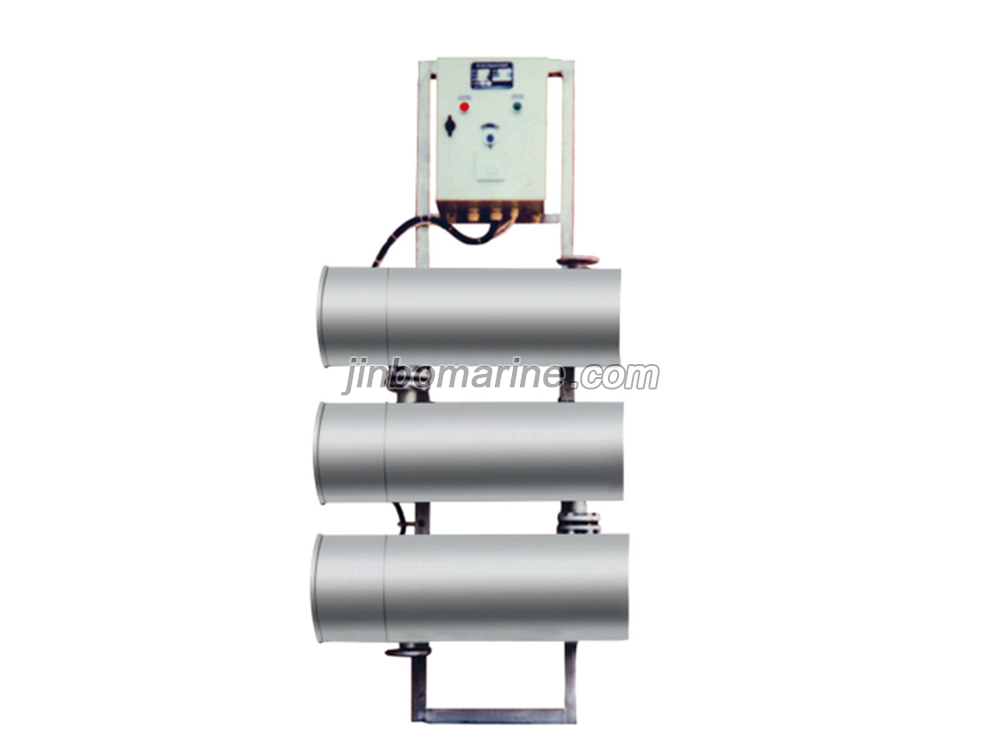

RYZ-15W Series multi-barrel horizontal heavy oil heating unit

1. Rated voltage: single-phase 220V, three-phase 220V, 380V, 440V and some special voltage.

2. Rated power :15kW allowed error +5%~-10%.

3. Heating medium: fuel oil, lubricating oil.

4. Flow rate :500 kg/h.

5. Temperature rise :48℃soil 5℃.

6. Temperature control thermostat control value between 50-98℃adjustment: the temperature limit is set to 110℃when leaving the factory.

7. The allowable working pressure of the heating chamber: 1.0MPa.

8. Erection, safety valve diameter of 25mm, factory supply as accessories.

9. There are 4 temperature controllers in the heating device (one for temperature control and three for protection)
