SBL150 Model Semi-Auto Filter

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

SBL150 Model Semi-Auto Filter

The filter model indicates as follow:
SBL→Double-cylinder Semi-suto Filter
200→Caliber 200mm

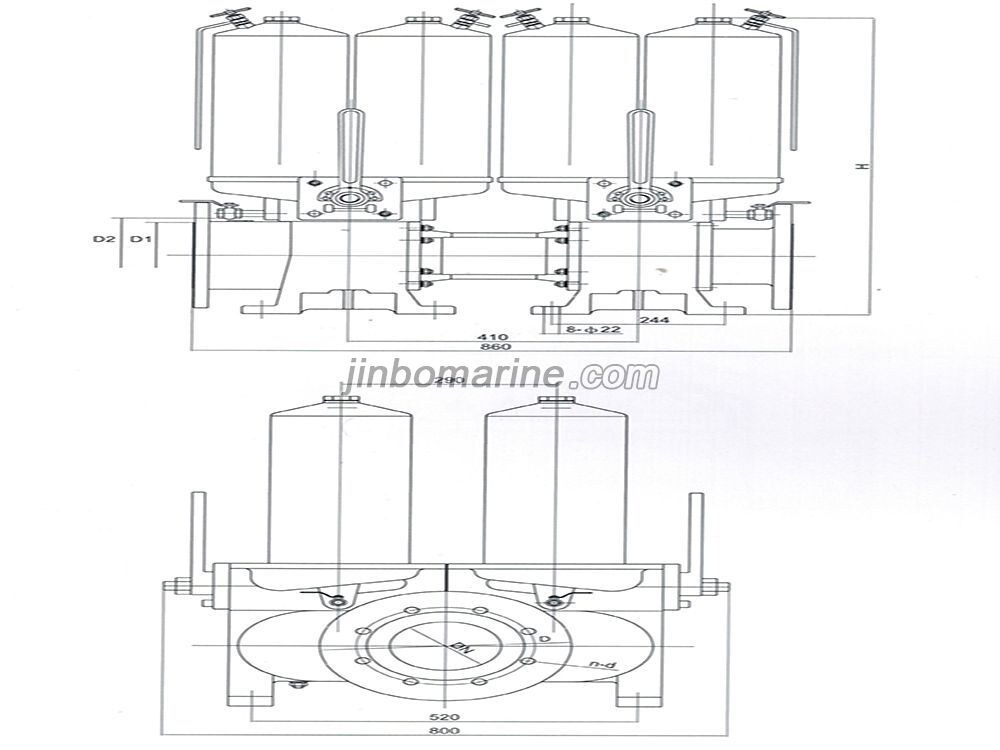

SBL150 Model Semi-Auto Filter Structure Diagram



SBL150 Model Semi-Auto Filter Technical Parameters

Model Caliber DN Flow(reference) Filter Precision mesh/inch Work Temperature Work Pressure(MPa) H D D1 D2 n-d Weight（kg)
SBL150 150 100-190 40-400 ≤85 ≤1 1060 285 240 212 8-22 680-1000
SBL200 200 110-300 40-400 ≤85 ≤1 1100 340 295 268 8-22 710-1100
