SBL32 Model Semi-Auto Filter
It is used in oil pepeline of marine diesel engine and othe equipment. the introduced work pressure is 0.6-1Mpa, work temperature ≤85℃, it adopts fiber-gap method to separate the foreign in th oil, the filtering precision is 40-400mesh/inch chosen at will.
Characteristics:
1.When the filtering pressure falls to the set one, no stoping the machine,no disassembling the filter,just turn the handle several times to carry out self-washing and auto bleed.
2.The filtering core material is 1cr18ni9ti,characteristica is reliable and the precision is excellent.
3.The filter can be installed up-down with four boltsc to connect to the outside.
Filter model indicating as follow：
SBL→Double-cylinder semi-auto filter
32→Caliber 32mm
II T→WorKing temperature≤135℃
HB→Filtering heavy oil,with heating chamber

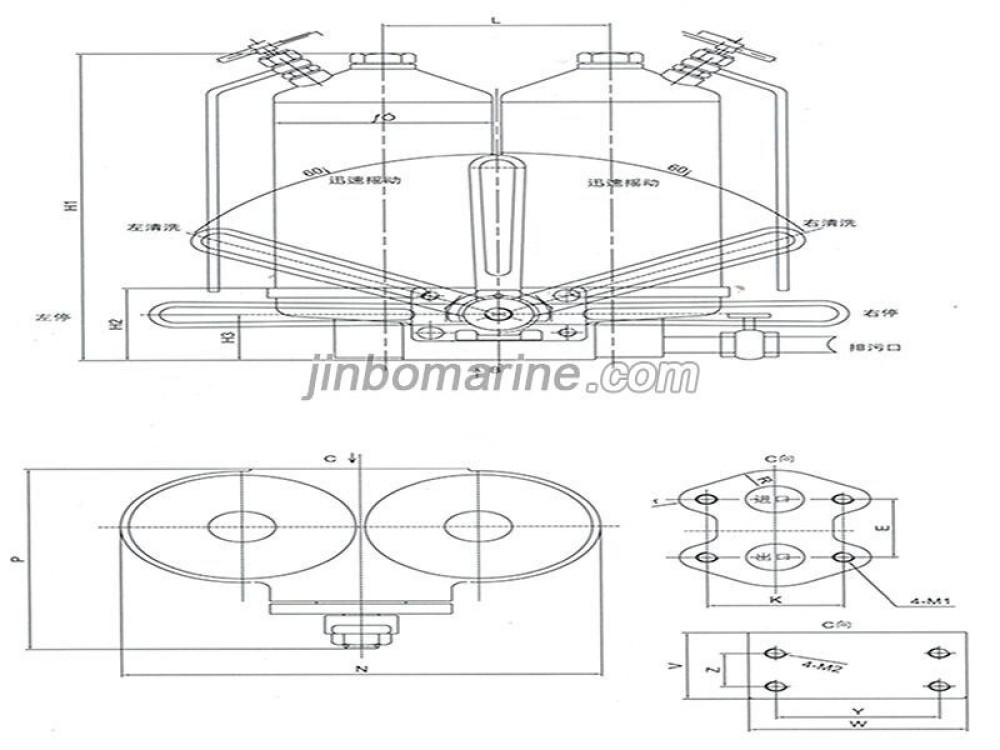

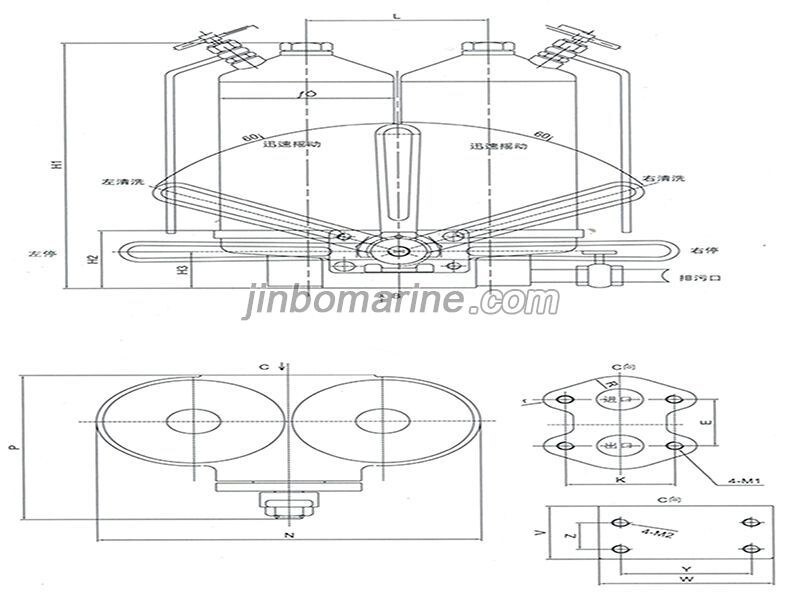

SBL32 Model Semi-Auto Filter Structure Diagram
SBL32 Model Semi-Auto Filter Technical Parameters
| Model | Flow(referencem³/h) | Caliber and jointing size(mm) | Overall size(mm) | Installing size(mm) | Weight(kg) | |||||||||||||||
| DN | K | E | R | r | 4-M1 | H1 | H2 | H3 | L | ᵩ | N | P | V | Y | Z | 4-M2 | ||||
| SBL20 | 1-2 | 20 | 60 | 50 | 20 | 12 | 10 | 248 | 64 | 37 | 95 | 85 | 193 | 184 | 53 | 80 | 35 | 10 | 8.5 | |
| SBL25 | 2-4 | 25 | 62 | 55 | 25 | 328 | 77 | 47 | 110 | 98 | 216 | 206 | 70 | 75 | 40 | 13.5 | ||||
| SBL32 | 4-7 | 32 | 75 | 70 | 35 | 15 | 12 | 385 | 90 | 57 | 130 | 125 | 264 | 226 | 120 | 80 | 90 | 12 | 23 | |
| SBL40 | 7 | 40 | 430 | 12 | 24 | |||||||||||||||
