SBL50 Model Semi-Auto Filter

It can be without stand A,with four bolts C connecting to the outside,the inlet and the outlet are in the bottom of the machine,the inlet is in the front and the outlet is at the back.
The two holes in the handle position near the stand are both inlets,the other two holes are outlets.While the inlets and outlets are installed,they are chosen at will,the other inles and outlets shoule be sealed with flange.

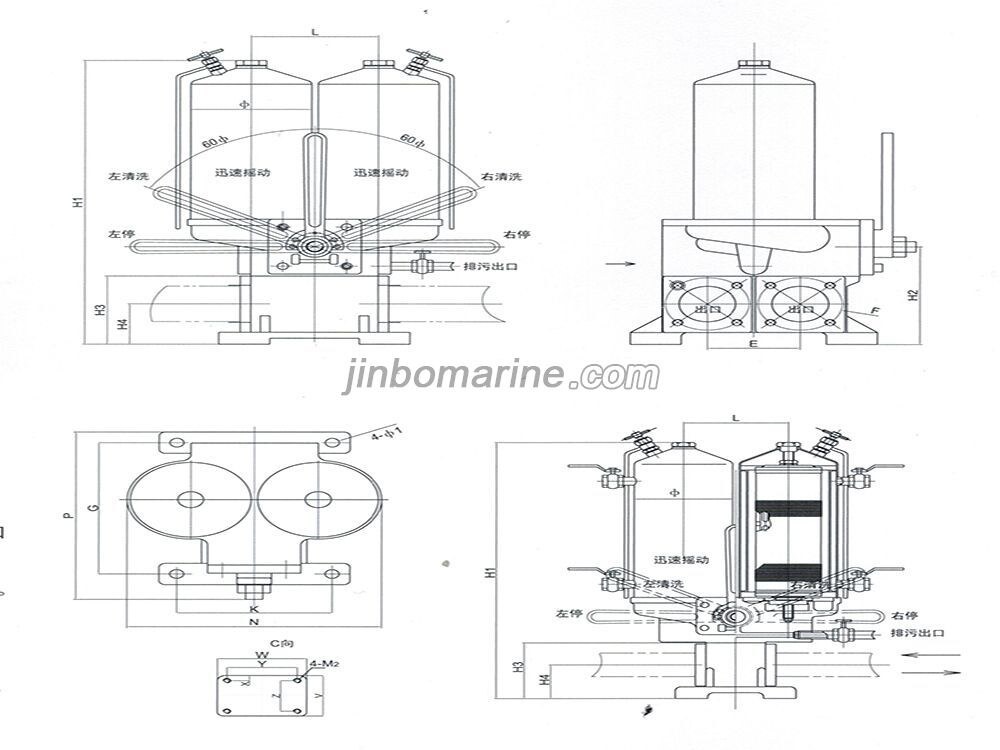

SBL50 Model Semi-Auto Filter Structure Diagram


SBL50 Model Semi-Auto Filter Technical Parameters

Model Flow(reference³/h) Caliber and jointing size(mm) Overall size(mm) Installing size(mm) Weight(kg)
DN E F M1 H1 H2 H3 H4 L N P G K 4-ᵩ X W V Y Z 4-M2
SBL50 10-25 50 120 110 M12 595 209 142 86 165 155 330 320 258 136 4-ᵩ22 16 150 115 110 78 4-ᵩ12 67
SBL65 25-30 65 670 71
SBL80 SBL80 I 25-40 80 146 132 M16 740 247 172 102 200 190 400 384 334 244 26 200 145 160 100 4-M16 131
SBL80 II 35-50 840 140
SBL100A 40-80 100 162 152 M16 890 247 192 112 200 190 400 384 374 244 26 200 145 160 100 150
