Self-priming Bilge Pumps
- Category:Bilge Pump
- Standards:standard
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details

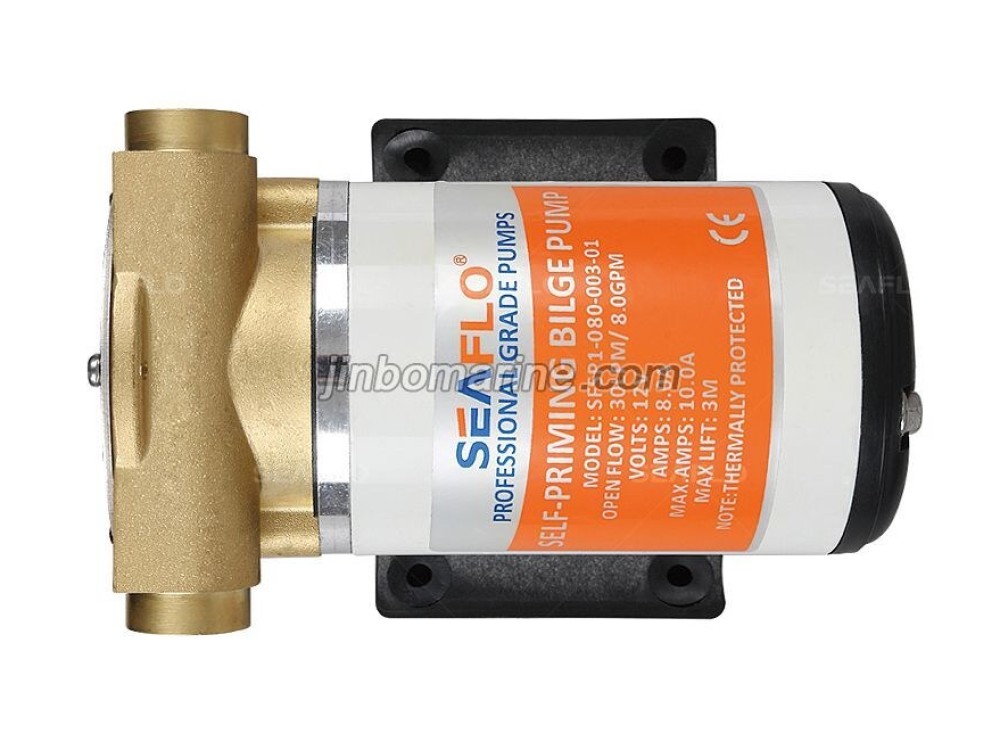

Self-priming Bilge Pumps

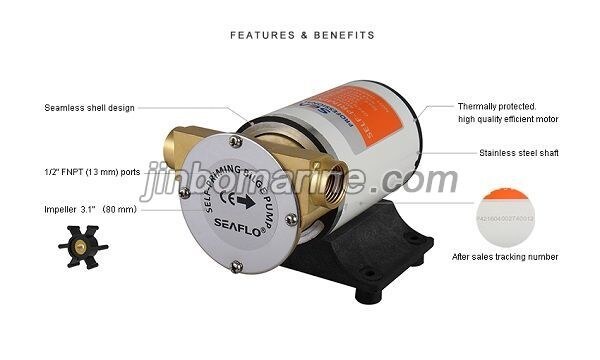

SEAFLO self-priming bilge pumps are positive displacement pumps, capable of operation in either direction. Can be use widely, including drainage bilge water, sewage water and wash down deck. We use robust motors, stainless steel shafts and rugged metal gears. Our tough design provides performance that you can rely on for years
Parameter pump and motor
| PUMP | |
| Type |
Thermally Protected,High Quality Efficient Motor
|
| Max Recommended Temperature | 60° C (140° F) |
| Priming Capabilities | 3.2 feet (1 m) suction lift |
| Head | 9.8 feet (3 m) suction lift |
| Inlet/Outlet Ports | 1/2" (13mm) FNPT |
| Weight | 5.46 lbs (2.48kg) |
| MOTOR | |
| Leads | Wire leads |
| Duty Cycle | Intermittent |
| Max.Amp Draw | 10 A |
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow （GPM/LPM) |
Dimensions | Impeller | Ports |
Max Draw(A) |
| SFSP1-080-003-01 | 12V | 8.0 / 30.0 |
7.68" x 5.12 "x 4.25" 195 x 130 x 108mm |
Rubber & Copper | 1/2" FNPT | 10.0 |
| SFSP2-080-003-01 | 24V | 8.0 / 30.0 |
7.68" x 5.12 "x 4.25" 195 x 130 x 108mm |
Rubber & Copper | 1/2" FNPT | 7.0 |
