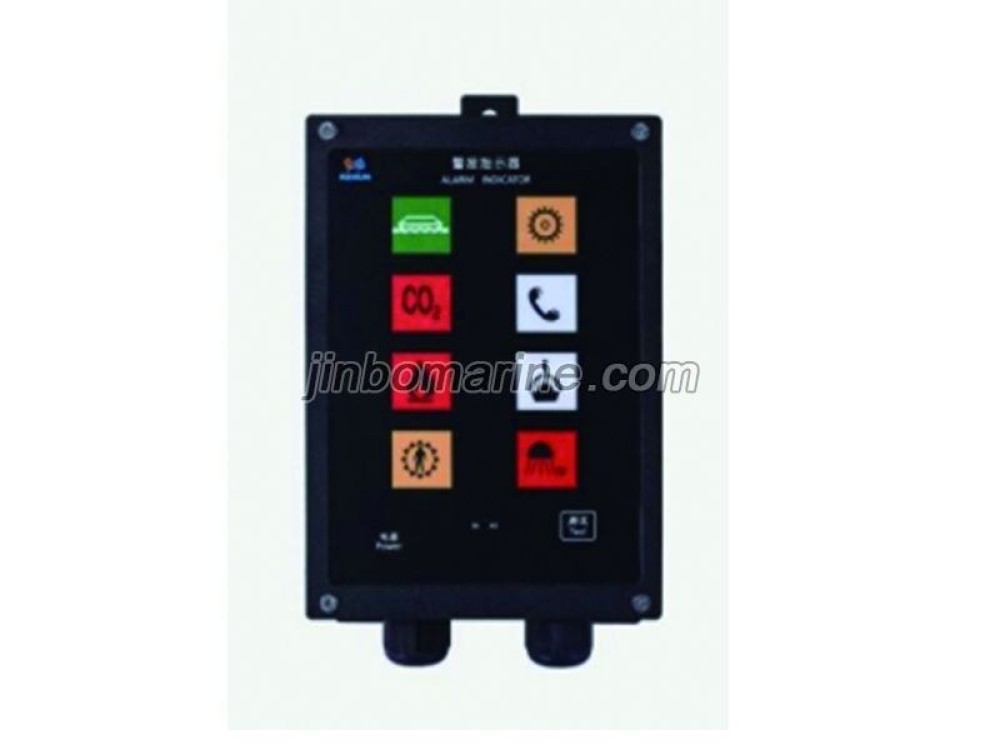

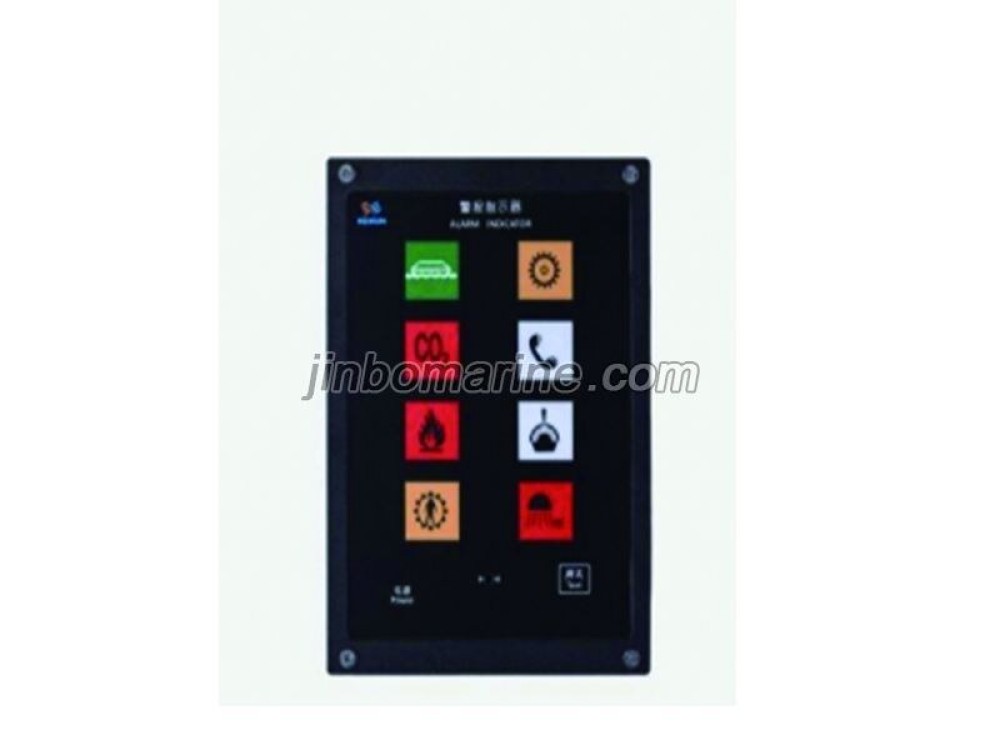

SGF-6/7/8 Alarm Indication

SGF-6/7/8 Alarm Indication

Power supply:SGF-6/7/8: DC24V -25% +30%

SGF-6A/7A/8A: AC220V±10%

Color: Black（RAL9005）

IP class:IP20/44

Weight:1.6/2.2Kg

Power:5W

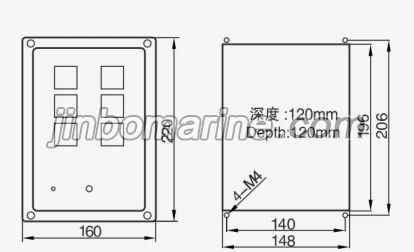

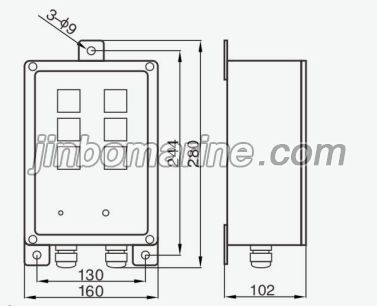

Stuffing box cable entrance hole size:2-Φ18mm

General emergency alarm, telegraph signal, telephone call,engine fault, CO2, release alarm, fire alarm, dead man alarmand water mist alarm

Mode ofcommunication: Serial communication

Alarm signal loudness:70dB～90dB

Telephonecall:600Hz/12100Hz Conversion alarm tone

Telegraph alarm: 600Hz Intermittent alarm tone

Main engine fault: 800Hz/1000Hz Conversion alarm tone

General emergency alarm: 1000Hz Seven short and one longalarm tone

CO2 Release alarm:1000Hz Continuous alarm tone

Fire alarm: 500~1200Hz Continuous FM alarm tone

Dead man alarm: 500~1000Hz Intermittent FM alarm tone in equal changes

Water mist alarm:600Hz Continuous alarm tone
